Can You Actually Build a Curved Stone Retaining Wall Yourself?

Yes, curved stone retaining walls are practical for most homeowners to plan and often build themselves, but the DIY decision hinges on three things: wall height, how steep your slope is, and whether you’re comfortable fitting capstones and running drainage. A curved wall isn’t just a straight wall bent sideways. It changes how stones sit against each other and how water moves behind the structure, which is why the height and complexity of your site matter more than they would for a straight run.

Hire a professional if you’re building above roughly 1.0 to 1.2 meters, working a steep or unstable slope, terracing multiple levels, or lacking tools like a wet saw for cutting capstones. DIY makes sense when:

• Your wall sits under standard garden height on relatively flat ground
• You’re using modular angled block systems or pre-cut natural stone designed for curves
• You have access to rock supply from a yard like Rokworx that can deliver sized material to your job site

Key Takeaways

Curved stone retaining walls succeed when the radius, drainage, and capstone fitting are planned before the first stone is laid, not worked out mid-build.

Table of Contents

• Choosing Materials and Methods for a Curved Retaining Wall
• How Do You Plan the Curve Before You Start Digging?
• What Are the Build Steps for a Curved Stone Retaining Wall?
• Building on a Slope: Stepped, Battered, or Terraced?
• Getting Drainage and the Foundation Right on a Curve
• Getting the Capstone Line Right on a Curve
• What Does a Curved Stone Retaining Wall Cost and How Long Does It Take?
• Rokworx Tips: Stone Sizing, Sourcing, and Mistakes to Avoid
• How Rokworx Supports Your Curved Wall Project
• Where to Learn More Before You Build
• Sources

Choosing Materials and Methods for a Curved Retaining Wall

Not every material bends the same way, literally or in terms of labor. Modular angled concrete blocks are built with tapered faces specifically so they follow a radius without gaps, which makes them the fastest DIY option if you want a clean curve without cutting stone. Segmented pre-cast systems work similarly but often come in larger units, better for taller walls that still need to sweep.

Natural stone, whether dry-stacked or mortared, gives you the most organic look and blends into planting beds better than manufactured block. Dry-stacked natural stone relies on gravity and friction rather than mortar, and it handles ground movement well, though it demands more skill to fit pieces tightly around a curve. Natural stone retaining walls also tend to weather in a way that suits garden beds and seating walls rather than looking industrial.

Gabion baskets filled with rock are forgiving on curves since the wire cage flexes into shape, and boulder or feature-rock approaches skip precise fitting altogether by stacking irregular stones for a more rustic edge.

When picking a method, weigh:

• Wall height — taller walls need engineered systems, not stacked boulders alone
• Desired look — natural stone reads softer, block reads more structured
• Site access — narrow side yards limit what equipment can reach the wall
• Maintenance — dry-stacked stone may need occasional re-setting; mortared and block systems hold longer without attention

How Do You Plan the Curve Before You Start Digging?

Radius choice drives almost everything downstream. A tight, sharp curve looks striking but forces you to cut more stone and use smaller capstone segments to avoid visible gaps. A broad, gentle sweep lets you use larger pieces with less trimming and a cleaner top line. Allan Block’s installation guide breaks down the difference between inside curves (concave, tighter joints on the wall face) and outside curves (convex, tighter joints at the back), and that distinction changes how you stack each course.

To lay out the curve on-site:

1. Drive stakes at the curve’s start, midpoint, and end, then run a garden hose or rope between them to preview the line before marking with spray paint
2. Measure the offset from your desired finished wall face back to the existing slope to confirm you have room to batter and backfill
3. Calculate rise over the wall’s length so you know where step-downs or grade changes will hit
4. Order stone sized to your radius, choosing larger pieces for broad curves and smaller, more workable stone for tight ones

Pro Tip: Order 10 to 15% more stone than your calculations suggest. Curved runs waste more material than straight walls because you’re constantly trimming pieces to follow the line, and running short mid-build means a delivery delay you don’t want.

What Are the Build Steps for a Curved Stone Retaining Wall?

Once your curve is marked and your material’s on-site, the sequence looks like this:

1. Clear and mark the site, removing turf and vegetation along the planned wall footprint
2. Excavate the trench, digging below the frost line or to a suitable depth depending on wall height

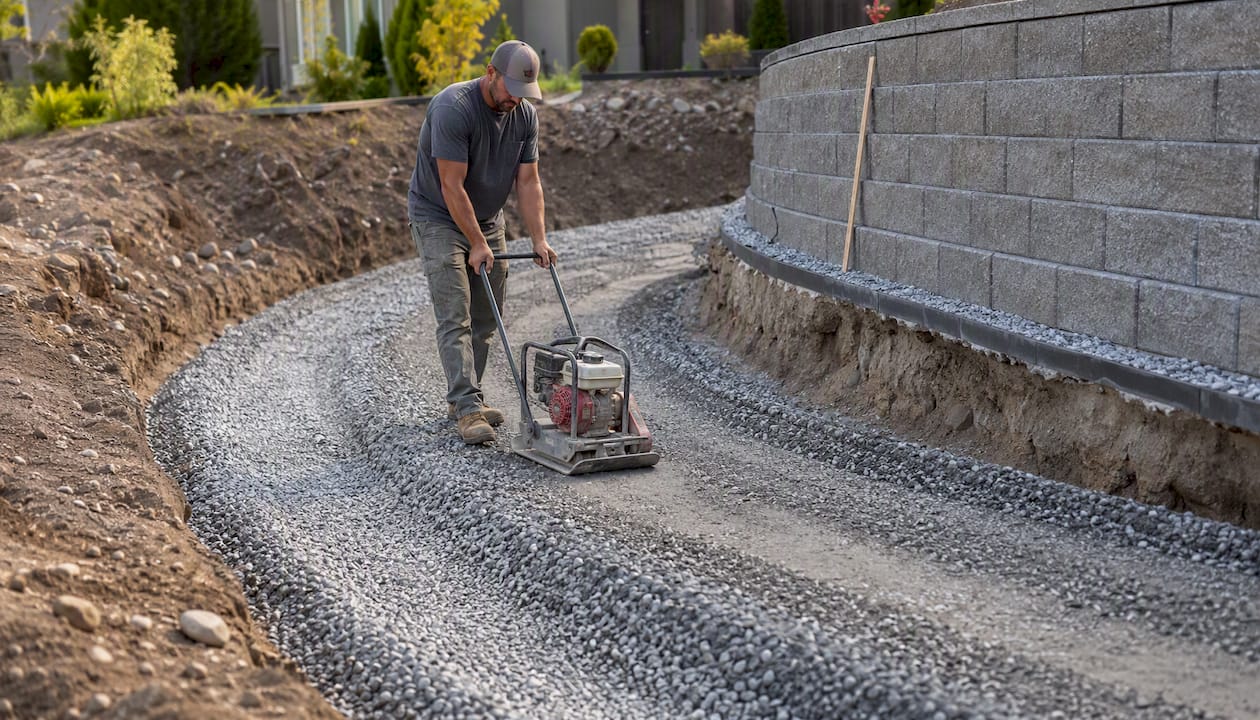

3. Compact a sub-base of crushed rock, tamping it in layers rather than one thick pour
4. Lay the first course dead level, since every course above follows the accuracy of this one
5. Set your batter, leaning each course back slightly into the slope as you follow the curve, checking alignment against your marked line every few stones
6. Install drainage, running perforated pipe along the base behind the wall with gravel backfill
7. Backfill in layers, compacting as you go rather than dumping soil in all at once
8. Fit capstones, trimming or segmenting pieces so the top line follows the curve cleanly
9. Finish and landscape, adding topsoil, planting, or mulch to the completed run

You’ll need a compactor, level, string line, safety glasses, gloves, and a wet saw or angle grinder for cutting stone. Stop and call a structural engineer or contractor if you notice major grade changes across the wall’s length, soft or waterlogged soil, or if the wall will retain a driveway, pool, or any significant surcharge load above it.

Building on a Slope: Stepped, Battered, or Terraced?

A continuously battered curved wall works for moderate, even slopes, leaning back into the hill at a consistent angle along its whole length. Stepped or terraced walls make more sense on steeper sites, breaking one tall wall into two or three shorter ones with a planted or paved bench between them.

Terracing has a structural upside too: splitting a slope into terraces reduces the lateral earth pressure any single wall has to resist, and it simplifies drainage since each tier manages its own runoff.

On steeper or multi-tiered sites, expect to need:

• Tied footings that anchor the wall base into stable soil
• Geogrid reinforcement layered into the backfill, which curves need custom-cut around the radius rather than laid straight
• Benching cut into the slope so each course sits on solid, undisturbed ground

Multi-level terraces and walls above roughly a meter often require council permits in Victoria, so check local requirements before you dig.

Getting Drainage and the Foundation Right on a Curve

Drainage failure is the single biggest reason retaining walls bulge or collapse, and curves are no more forgiving than straight runs. A properly installed system includes:

• Perforated drain pipe running the full length of the wall base, sloped slightly so water actually exits somewhere useful
• Clean gravel backfill directly behind the wall face, keeping soil from clogging the drainage zone
• Weep paths or outlets spaced along the run so trapped water has somewhere to go

Solid stone and landscaping guidance treats drainage as non-negotiable, not optional, for exactly this reason.

For the foundation, dig a trench wide enough to accommodate the wall’s base width plus working room, then compact crushed rock in layers. Curves need extra attention here because the base has to support consistent pressure around the bend, not just along a flat line. The most common mistakes: skipping compaction between layers, using soil instead of gravel behind the wall, and cutting trench depth short to save time.

Getting the Capstone Line Right on a Curve

Capstones are where curved walls separate the amateur jobs from the good ones. On a straight wall, square caps butt together with clean joints. On a curve, that same square cap leaves wedge-shaped gaps that get wider as the radius tightens. Custom stonework projects frequently rely on hand-cut capstones for exactly this reason, shaping each piece to close the gap rather than forcing a standard unit to fit.

Three practical approaches work:

• Segmented caps designed with a slight taper, purpose-built for curved runs
• Field trimming, cutting standard caps on-site with a wet saw to close gaps as you go
• Smaller cap pieces, which naturally follow tighter curves with less visible jointing than large slabs

Pro Tip: Dry-lay your capstones across a section before committing to mortar or adhesive. It’s much easier to swap a piece or trim an edge before it’s locked in place.

Finish with pointing between joints, a planting ledge if you want greenery cascading over the edge, or a wider cap for informal seating.

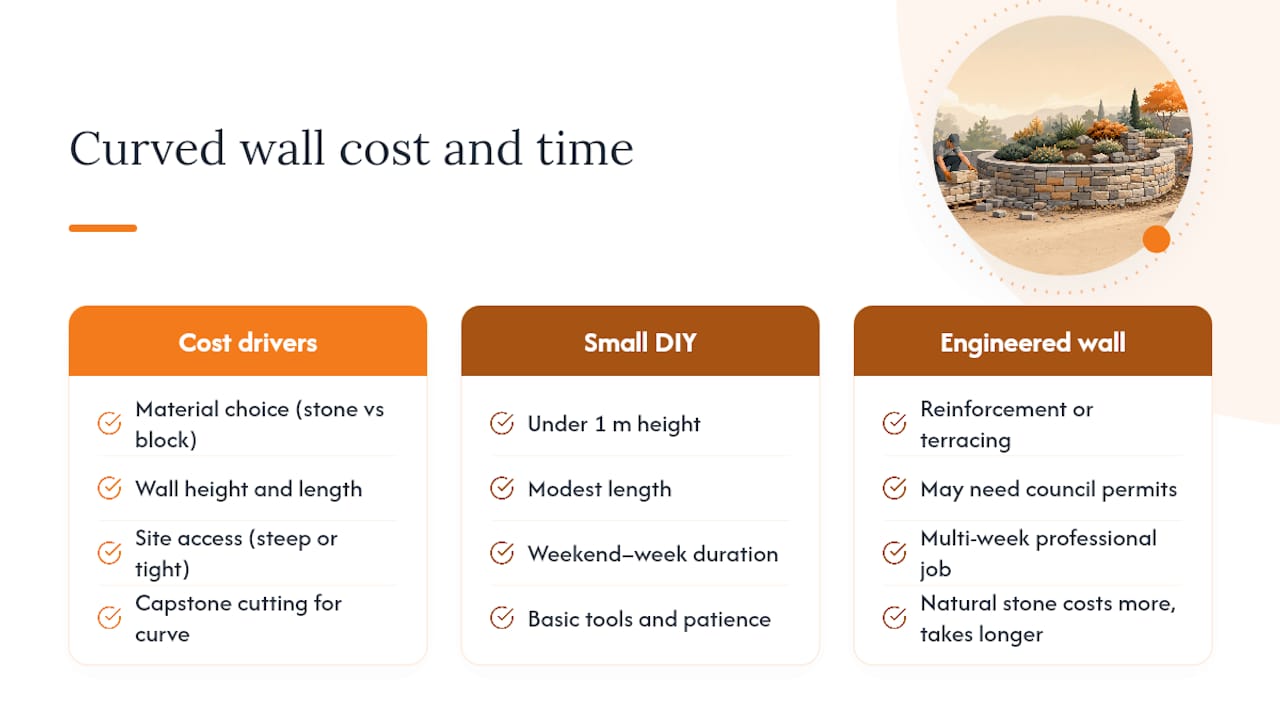

What Does a Curved Stone Retaining Wall Cost and How Long Does It Take?

Cost swings mainly on material choice, wall height and length, site access, and how much capstone cutting the curve demands. Natural stone generally costs more than modular concrete block, both in material and labor, because it takes longer to fit each irregular piece. Steep sites or backyards with tight vehicle access add earthmoving costs since machinery may need to be smaller or material carried in by hand.

A small garden-height curved wall, under a meter and modest in length, is a realistic weekend-to-week DIY project for someone with basic tools and patience. Larger engineered walls with reinforcement, terracing, or council permits stretch into multi-week professional jobs.

When comparing contractor quotes, ask each bidder to break down material, excavation, drainage, and capstone work separately. That breakdown tells you where the real cost differences sit rather than comparing two lump-sum numbers.

Rokworx Tips: Stone Sizing, Sourcing, and Mistakes to Avoid

Bigger stone reads better on a curve. Small, uniform pieces can make a curved wall look busy or fussy, while larger stones create bold sightlines that follow the sweep of the wall naturally rather than fighting it. When you order, ask your supplier for extra material specifically for on-site trimming, since curves waste more stone than straight runs.

Before you commit to a delivery, check supply photos for consistent color and texture, request a small sample if the yard offers one, and confirm capstone thickness matches your design before the truck arrives.

The mistakes Rokworx sees most often on curved walls:

• Skipping drainage pipe entirely, assuming gravel backfill alone will handle water
• Under-compacting the base, which shows up as wall settling within a year or two
• Ordering capstones too small for the radius, leaving visible gaps that need patching later

Pro Tip: If you’re unsure how much extra stone to order for a curve, tell your supplier the radius and wall length. A good rock yard can estimate waste percentage based on similar past jobs.

A Note From the Field

Every curved wall throws up one surprise, usually where the slope doesn’t match the plan or a section of soil is softer than expected. The satisfying part is watching the top line settle into a clean sweep once the capstones go on. If you’re still working out your radius or stone quantities, talk it through with a rock supplier before you order.

How Rokworx Supports Your Curved Wall Project

Rokworx supplies and installs rock walls, landscaping rock, and handles the excavation work that curved retaining walls often need, whether you’re doing the stacking yourself or want the whole job handled. If you’re sourcing material for a DIY build, Rokworx can deliver stone sized and quantified for your specific radius, saving you the guesswork of estimating waste on a curve. For homeowners who’d rather skip the weekend labor altogether, Rokworx crews handle everything from excavation through capstone fitting.

Browse rock wall ideas for design inspiration, or check which rocks suit your wall type before placing an order. Ready to move forward? Request a quote through Rokworx’s retaining wall services and get a site visit scheduled to discuss your curve, your slope, and what material will hold up best.

Where to Learn More Before You Build

For layout techniques on inside and outside curves, Allan Block’s guide covers radius planning in detail. For drainage standards, see the stone and landscaping resource on backfill and weep systems. For capstone examples on real projects, Clark Outdoor Designs shows hand-cut caps in practice. For material sourcing and quotes, visit Rokworx.
