Drainage Swale Design for Melbourne Homeowners & Landscapers

A swale is the right fix when your problem is surface runoff: water sheeting across your yard after rain, pooling near paths, or eroding garden beds. If your lawn stays soggy days after rain stops, or your soil is saturated from below, you likely need a French drain or a combined system instead. That distinction, surface vs subsurface flow, is the single most common diagnostic mistake homeowners make.

Quick site check (2 minutes):

• Watch where water flows during rain. Sheet flow across the surface? Swale territory.
• Dig a hole deep after a dry spell, fill it with water. If it drains quickly, infiltration is good. Stays wet? You may need a French drain or combo.
• Measure your slope. A moderate longitudinal slope is ideal to ensure proper runoff; very low slopes risk pooling and very steep slopes may require check dams.
• Check soil type. Heavy clay slows infiltration and may require a hybrid underdrain.

Core design rules: target a moderate longitudinal slope; build in sufficient freeboard for expected storm events; use a wide U or shallow trapezoidal cross-section sized appropriately for site constraints; rock-armor the channel when flow velocity risks causing scour. When you have both surface and subsurface issues, a swale feeding into a French drain handles both layers cleanly.

Melbourne local shortlist:

• Rokworx — rock supply, earthmoving, rock-armored swale installation, and retaining walls across Melbourne
• Swimm Landscape — landscaping services with drainage focus
• Distinguished Landscapes — residential landscaping and drainage design
• Gasparini Landscaping Company — hardscaping, construction, and drainage installation
• Garrison Companies — stormwater management, French drains, retention basins, and channel drains

Table of Contents

• How often does a swale need maintenance?
• How do you choose the right swale contractor in Melbourne?
• What Melbourne homeowners need to know about permits and stormwater rules
• Step-by-step drainage swale design with a worked example
• Rokworx handles the earthmoving, rock supply, and installation for Melbourne swale projects
• Key Takeaways

How often does a swale need maintenance?

Post-storm inspections are non-negotiable. After every significant rain event, walk the full channel length and check for debris blockages at the inlet and outlet, sediment buildup along the base, erosion on side slopes, and any areas where the channel shape has shifted.

Twice a year, do a deeper pass: remove accumulated sediment, re-establish vegetation in bare patches, and confirm the outlet is clear. Rock-armored sections need a check that stones haven’t migrated or settled unevenly. If you have check dams, clear trapped sediment before it overtops.

Swales that go uninspected for a season can lose 30–40% of their flow capacity from sediment alone. The fix is cheap when caught early; re-excavation is not.

How do you choose the right swale contractor in Melbourne?

Ask every contractor these four questions before signing anything: Do you provide a written site assessment and design proposal? Can you show before-and-after photos of comparable drainage projects? What does your warranty cover, and for how long? Do you offer a post-installation maintenance plan or inspection contract?

Red flags to watch for: a quote given without visiting the site, no mention of council permits or Melbourne Water requirements, vague scope with no outlet detail, and zero reference to geotextile or filter media. A contractor who skips the outlet design is leaving the hardest part unresolved.

Years of local experience matter here. Melbourne’s clay-heavy soils and variable rainfall patterns behave differently from sandy coastal sites. Ask specifically whether the contractor has worked in your suburb and what soil conditions they encountered.

Pro Tip: Request a written scope that itemizes earthmoving hours, rock volume, geotextile specification, and outlet works separately. That breakdown makes comparing quotes straightforward and protects you if scope creep appears later.

What Melbourne homeowners need to know about permits and stormwater rules

Melbourne Water sets the framework for how private drainage connects to the broader stormwater network. Before any earthmoving starts, check with your local council whether a planning or building permit is required. Most residential swales on private land don’t trigger a full planning permit, but any work that alters stormwater discharge to a council drain or waterway usually requires approval.

Key rules to confirm before you dig:

• Swale outlets must not direct water onto a neighboring property or into a road without council consent.
• Connections to council drains require a legal point of discharge (LPOD) approval from your council.
• Works near easements or drainage reserves need separate sign-off.
• Melbourne Water’s stormwater management guidelines recommend ponding time not exceed 48 hours to prevent mosquito breeding and plant die-off.

For outdoor paving and drainage integration near driveways or hardstand areas, permeable paving upstream can reduce the volume your swale needs to handle, which sometimes eliminates the need for a permit altogether.

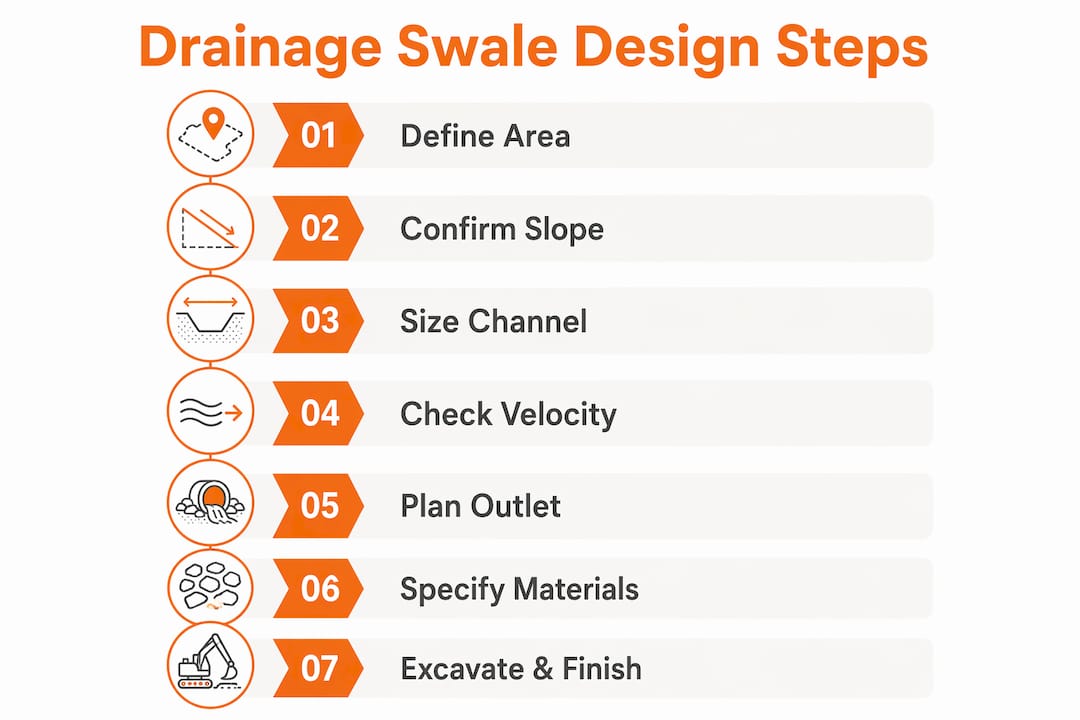

Step-by-step drainage swale design with a worked example

Step 1: Define the drainage area. Measure the area (in square metres) that drains to your problem zone. For this example, assume a 200 m² rear yard with a 2% slope toward the back fence.

Step 2: Confirm slope. A 2% longitudinal slope sits comfortably in the 1%–4% target range. No check dams needed.

Step 3: Size the channel. Use a trapezoidal cross-section. For a residential yard, a 600 mm base width with 3:1 side slopes (run:rise) gives a stable, mowable channel. Design water depth: 300 mm. Add 150 mm freeboard for a total depth of 450 mm.

Step 4: Check velocity. At 2% slope with grass lining, typical velocity runs around 0.8–1.0 ft/s, below the 1.5 ft/s threshold where grass fails. Grass lining is sufficient here. If your slope were 4% or the contributing area larger, rock armoring with 75–150 mm cobbles becomes necessary.

Step 5: Plan the outlet. The swale must terminate at a legal discharge point: a council drain, a rain garden, or a vegetated infiltration area. Never terminate at a property boundary.

Step 6: Specify materials. Geotextile fabric lines the base and sides before rock placement. For rock-armored sections, granite or basalt cobbles in the 75–150 mm range resist scour at design velocities. Vegetation (buffalo grass or native sedges) stabilizes unarmored sections.

Step 7: Excavate and finish. Mark the swale boundary with stakes and string. Excavate to design depth without compacting the base. Lay geotextile, place rock or topsoil, then plant and mulch. Allow 4–6 weeks for vegetation to establish before the first heavy rain season.

Timeline: A straightforward residential swale typically runs 2–4 weeks from design approval to installation completion. Add 2–4 weeks if a council permit is required, and another week if complex grading or outlet construction is involved.

Rokworx handles the earthmoving, rock supply, and installation for Melbourne swale projects

When a swale needs more than a shovel and a weekend, Rokworx brings the full capability: on-site assessment, grading and excavation services, geotextile specification, rock supply, and rock-armored channel installation. For projects where a swale runs alongside a retaining wall or slope stabilization works, that combination of earthmoving and rock wall construction under one contractor removes a significant coordination headache.

The process is straightforward: site visit and written design proposal, earthmoving and excavation to design grade, geotextile and rock placement, vegetation and finish, then a post-storm inspection to confirm performance. For cost context, US practitioners report residential swale installs in the range of $2,000–$5,000 USD for a 50–100 ft run; Australian pricing varies by access, rock volume, earthmoving hours, and outlet complexity, so request a local AUD quote directly. View Rokworx’s project gallery for before-and-after examples, then contact the team for a site assessment.

Key Takeaways

A rock-armored swale on a 1%–4% slope, with 150 mm of freeboard and a legal outlet, is the most reliable surface drainage solution for Melbourne residential properties.
