Driveway Retaining Wall: Design, Costs & DIY Guide

If your driveway edge is losing soil, a slope is undercutting the pavement, or you need to hold fill beneath a raised driveway, you need a retaining wall. Build it with proper drainage, a compacted crushed-stone base, and an engineered footing whenever the wall supports vehicle loads or climbs past roughly 4 ft. Those three elements are non-negotiable. The International Building Code (IBC) and ASCE design standards both treat walls that carry driveway surcharge as a separate structural class, and Rokworx’s field experience in rock walls and earthmoving backs this up every time a remediation job comes in.

Do this first:

• Call 811 to locate underground utilities before beginning excavation
• Contact your local building department to confirm the permit trigger height (commonly 3–4 ft, or any height when a driveway surcharge is present)
• Decide DIY vs. professional based on wall height, soil type, and whether vehicles will load the wall
• Plan drainage before you plan face material: perforated drain pipe, free-draining stone, and geotextile fabric are required on every wall

---

Table of Contents

• What design options work best for a driveway retaining wall?
• How do you size and plan a driveway retaining wall?
• Which materials work best for driveway retaining walls?
• What structural basics does a driveway retaining wall need?
• Why does drainage failure kill retaining walls?
• Should you DIY or hire a contractor for a driveway retaining wall?
• What permits and codes apply to a driveway retaining wall?
• What does a driveway retaining wall cost and how long does it take?
• How do you maintain a driveway retaining wall and spot problems early?
• Step-by-step checklist for a small DIY driveway retaining wall
• Why excavation and drainage drive cost and failure on driveway walls
• Key Takeaways
• What Rokworx has learned from building driveway retaining walls
• Rokworx builds the walls that hold
• Authoritative references and further reading

What design options work best for a driveway retaining wall?

A wall beside a driveway does two jobs at once: it holds soil and it faces the street. That combination makes design choices matter more than on a backyard garden wall.

Common face styles and their trade-offs:

• Natural stacked rock — the most visually striking option, suits cut walls where the rock face reads as part of the landscape; dry-stack gravity walls work well under 3 ft, while taller walls typically need a concrete stem behind the rock face
• Segmental concrete block (SRW) — the workhorse of residential driveway walls; modular, widely available, and engineered for interlocking geometry; lifespan exceeds 50 years with proper drainage
• Poured concrete — strongest and most durable, suits modern or contemporary driveways; requires formwork and professional installation; can be stamped or textured to mimic stone
• Gabion baskets — wire cages filled with rock; excellent for wet sites because water passes through freely with zero hydrostatic pressure; industrial look that suits naturalistic or rural driveways
• Timber sleepers — affordable and fast to install; suits low walls under 3 ft with a limited design life; pressure-treated timber can last up to 40 years, but rot and bowing are real risks near irrigation or in damp soil

Layout choices that affect both function and cost:

• Single straight runs are the simplest and cheapest to build and inspect
• Curved walls add visual interest but require more cutting and careful base prep
• Tiered or stepped walls break a tall slope into two or three shorter gravity walls, each under the engineering threshold, which can keep a project in DIY territory
• Integrated planter ledges on the wall cap turn a structural element into a garden feature
• Combined stair and wall transitions work well where a driveway meets a front path or entry

The design-to-engineering link matters here. A dry-stack natural stone gravity wall looks beautiful but tops out structurally around 3 ft without engineering. A natural stone face over an engineered mechanically stabilized earth (MSE) system can go much higher, but the underlying system drives the cost. Gabions suit wet or erosion-prone sites better than any mortared wall. Choose the look you want, then confirm the structural system it requires.

Pro Tip: For a driveway wall that also doubles as a planter terrace, a tiered SRW design with a 12–18 inch wide cap course gives you both structural setback and a planting shelf without adding engineering complexity.

---

How do you size and plan a driveway retaining wall?

Getting the sizing right before you order a single block saves you from redesigning mid-project or, worse, building a wall that fails under vehicle load.

Cut walls vs. fill walls. A cut wall holds back soil you’ve excavated into a slope. A fill wall retains soil you’ve placed to raise a grade. Fill walls that sit directly beneath a driveway carry vehicle surcharge, typically around 10 kPa for residential driveways. This surcharge increases the lateral pressure the wall must resist, which is why walls supporting driveways are treated as a different structural class in many jurisdictions, requiring heavier post systems, deeper embedment, and often engineering sign-off.

Height and embedment rules of thumb. The IBC engineering trigger sits at a height of approximately four feet of exposed wall height. For embedment, the general industry rule is to bury approximately 10% of the total wall height as a minimum, though some design contexts use a 1:3 embedment-to-height ratio for gravity walls. These are starting points, not substitutes for engineering on taller or surcharged walls.

Site measurement checklist:

• Wall height: measure from the bottom of the footing to the top of the cap
• Wall length: include any returns or wing walls
• Slope angle above and below the wall
• Distance from the driveway edge to the wall face (aim for 1.0–1.5 m setback where site allows)
• Location of underground utilities (call 811)
• Soil type: clay, sandy loam, or rock — affects drainage design and footing depth

Pro Tip: For walls longer than 30 ft or with variable height along their run, plan for expansion joints every 20–25 ft, mark drain outlet locations on your site sketch, and consider staged construction so each section can be inspected before backfilling.

---

Which materials work best for driveway retaining walls?

The face material gets all the attention, but system design matters more than any single component. A well-specified combination of compacted base, geotextile, perforated drain, and clean stone backfill will outlast an expensive face material installed over a poor structural system every time.

Interlocking concrete block (SRW)

The best all-around DIY choice for walls under 4 ft. SRW blocks offer engineered geometry, a 50+ year lifespan, and availability at most home improvement retailers. They rest on a crushed-stone footing and use heavy-duty mesh anchors every other course. Curved and straight designs are both achievable.

Poured concrete

The strongest option available. Requires professional design and installation, reinforced footings, and formwork. Best reserved for tall, high-load, or engineered walls where longevity and minimal maintenance justify the higher upfront cost. Can be stamped or veneered to match any aesthetic.

Natural stone (dry-stack or mortared)

Dry-stack stone suits gravity walls under 3 ft and delivers a look no block system matches. Mortared stone walls rest on a rebar-reinforced concrete footing set below the frost line and need weep holes for drainage. Rokworx’s rock wall supply and installation covers both structural and aesthetic applications, from dry-stack gravity walls to rock-faced engineered systems.

Gabion baskets

Wire cages filled with rock. Excellent drainage, strong erosion resistance, and a naturalistic look. Best for wet sites, steep cut slopes, and anywhere hydrostatic pressure is a persistent concern. Not typically a DIY project for driveway applications due to the weight and precision required.

Timber sleepers

Fast and affordable for low walls. Pressure-treated timber can last up to 40 years, but driveway surcharge walls need heavier posts, closer spacing, and thicker sleepers than a garden wall. Many jurisdictions require engineering sign-off for any timber wall supporting vehicle loads.

Practical recommendation matrix:

• DIY under 4 ft, good soils: SRW interlocking block with compacted gravel base and perforated drain
• DIY under 3 ft, aesthetic priority: dry-stack natural stone or gabion with geotextile
• Contractor-only: poured concrete, tall engineered MSE, any wall supporting driveway surcharge over 4 ft
• Rock face with engineered backing: natural stone veneer on a concrete stem wall — Rokworx’s specialty for projects where aesthetics and structural performance both matter

No matter which material you choose, proper drainage, base compaction, and engineering where required are not optional extras. They are the system.

---

What structural basics does a driveway retaining wall need?

A wall that holds soil behind a driveway is not a garden feature. It is a structure under load, and the foundation work determines whether it stands for decades or fails in the first wet winter.

Footing types and when engineering is required. A small gravity wall under 2 ft can sit on a compacted gravel base of at least 6 inches. Walls exceeding 4 ft, or any wall supporting driveway surcharge, generally require engineered footings to resist lateral soil pressure and overturning forces. Engineered footings are typically reinforced concrete, sized by a licensed structural engineer based on soil bearing capacity and wall geometry.

Geogrid reinforcement. Segmental retaining walls over roughly 3–4 ft typically require geogrid soil reinforcement at vertical spacings of approximately 300–600 mm, with each layer extending back 0.5–0.8 times the wall height. The NCMA (National Concrete Masonry Association) publishes specific geogrid layout guidance, and a licensed engineer should confirm the design for any surcharged wall.

Engineering triggers — bring these to a PE:

• Wall height over 4 ft (exposed face)
• Any wall directly beneath or within the influence zone of a driveway
• Poor or expansive soils (clay, fill, or unknown bearing capacity)
• Walls near property lines, structures, or utilities
• Tiered walls where the upper tier loads the lower

Pro Tip: When you meet with a structural engineer, bring a site sketch with measured wall height and length, a description of the soil (color, texture, whether it’s native or fill), the distance from the driveway edge to the wall face, and an estimate of vehicle type and frequency. That information cuts the engineering time and cost significantly.

Under-designed walls settle, overturn, or collapse. Remediation after failure typically costs two to three times what correct original installation would have run.

---

Why does drainage failure kill retaining walls?

Drainage is the single most important factor in long-term wall stability. Water trapped behind a wall builds hydrostatic pressure, increases soil weight, and turns a stable structure into a bulging, cracking failure waiting for the next heavy rain. Even expensive walls fail without it.

Step-by-step drainage installation:

1. Lay non-woven geotextile fabric against the native soil face before placing any stone — this separates fine soil from the drainage layer and prevents long-term clogging
2. Place a minimum 12-inch (300 mm) column of clean crushed stone or gravel directly behind the wall face
3. Install a 4-inch perforated drain pipe at the base of the gravel column, perforations facing down, sloped to an outlet at a minimum 1% grade
4. The outlet must daylight to a stable surface, a storm drain, or an approved dry well — never terminate it in a location that will undermine the wall base
5. Install weep holes through the wall face every 6–8 ft at the base course as a secondary pressure relief
6. Grade the surface above the wall to direct runoff away from the retained soil zone

Perforated drain pipe and weep holes are non-negotiable for any wall holding soil behind a driveway. For additional guidance on drainage design using rock and gravel, Rokworx’s rock drainage resource covers the principles that apply directly to retaining wall backfill.

Drainage specs by wall type:

Spec	Small DIY wall (under 3 ft)	Engineered wall (3 ft+)
Backfill stone	Clean crushed stone, 3/4 inch	Clean crushed stone or angular gravel, engineer-specified
Backfill depth behind wall	12 in (300 mm) minimum	300–600 mm minimum, per design
Drain pipe diameter	4 in perforated	4–6 in perforated, per design
Pipe slope to outlet	1% minimum	1–2% minimum
Geotextile fabric	Non-woven, full height	Non-woven, full height, engineer-specified overlap
Weep holes	Every 6–8 ft at base	Every 6–8 ft or per engineer

Never backfill with clay or fine-grained soil. Clay holds water, swells, and clogs drainage layers. If your site has clay, use clean granular material for at least 12–24 inches directly behind the wall and wrap the transition with geotextile. Retrofit drainage on an existing wall means excavating behind it, which is expensive — get it right the first time.

---

Should you DIY or hire a contractor for a driveway retaining wall?

DIY is realistic for gravity SRW walls under roughly 4 ft on good, stable soils with no vehicle surcharge. Anything taller, anything supporting driveway traffic, or anything on poor soils or steep slopes should be contractor-led.

Decision factors:

• Under 4 ft, stable soil, no surcharge: SRW block is manageable for a capable DIYer with a rented plate compactor and basic excavation tools
• Excavation depth over 4 ft: shoring is required by OSHA; this is contractor territory
• Geogrid installation: requires precise vertical spacing and embedment length; errors are invisible until the wall moves
• Concrete forming and pouring: not a beginner task; poured concrete walls need reinforcement, formwork, and often a concrete truck
• Tight site access: a mini excavator or skid steer is typically needed; equipment rental plus operator skill is a real barrier

Questions to ask any contractor before signing:

• Who pulls the permit and manages inspections?
• Do you carry general liability and workers’ compensation insurance?
• What is your excavation plan and where does spoil go?
• Can you provide references for driveway retaining wall projects specifically?
• Does your bid include a drainage plan with outlet location?

Red flags in bids:

• No drainage plan or vague reference to “gravel behind the wall”
• No engineering for walls over 4 ft or any wall supporting a driveway
• Footing described only as “compacted soil” with no depth or spec
• Spoil disposal listed as “TBD” or not mentioned at all

For homeowners who want professional rock wall installation and earthmoving handled together, Rokworx offers retaining wall excavation and rock wall services that cover site prep through finished installation.

---

What permits and codes apply to a driveway retaining wall?

Most U.S. jurisdictions require a building permit for walls exceeding a few feet in height, and many require a stamped PE plan for any wall supporting a driveway surcharge regardless of height. Ignoring permit requirements risks legal liability, insurance denial, and mandatory demolition — none of which are hypothetical outcomes.

Action checklist before you dig:

• Call 811 at least three business days before excavation to locate underground utilities
• Contact your local building department to confirm the permit trigger height and surcharge rules
• Ask about setback requirements from property lines, easements, and right-of-way
• Check HOA rules if applicable — some associations have aesthetic or height restrictions beyond code
• Confirm whether your jurisdiction requires a licensed engineer’s stamp for the wall design

Typical inspection points:

• Footing inspection before concrete is poured
• Drainage layer inspection before backfill covers it
• Final inspection after wall completion and grading

Documents typically needed for a permit application:

• Site plan showing wall location, dimensions, and proximity to property lines
• Elevation drawings showing wall height and footing depth
• Proposed materials list
• Engineer’s stamped drawings (required for walls over 4 ft or with surcharge in most jurisdictions)

---

What does a driveway retaining wall cost and how long does it take?

Cost varies widely by region, site conditions, and material, but the pattern is consistent: excavation and drainage preparation drive the budget more than face material does.

Ballpark cost ranges by system (installed, U.S. averages):

• SRW interlocking block: roughly $25–$50 per square foot of face area
• Poured concrete: typically higher than block, often 1.5–2x depending on finish and reinforcement
• Natural stone: commonly 2–3x the cost of SRW block for comparable wall area
• Timber sleepers: lower upfront cost, but factor in shorter design life and potential replacement

These are ballpark figures. Rocky sites, tight access, engineered footings, geogrid, and spoil disposal all push costs up. A 10–25% contingency budget is reasonable for most residential driveway wall projects.

Major cost drivers:

• Excavation and rock or bedrock removal (often the single largest line item)
• Engineered footings and concrete work
• Drainage materials: pipe, crushed stone, geotextile
• Geogrid reinforcement for taller walls
• Face material and cap units
• Tight-site labor when equipment access is limited
• Permit fees and engineering costs

Typical project timeline:

• Site prep and permits: 1–4 weeks (permit approval time varies by jurisdiction)
• Excavation and footing: 1–3 days
• Wall construction: 1–7 days depending on length and height
• Drainage and backfill: 1–3 days
• Finishes, cap, and cure time: 1–7 days

Earthmoving and excavation are consistently cited by contractors as the most expensive and failure-critical parts of a retaining wall project. Investing in correct site preparation upfront prevents remediation costs that can run two to three times the price of doing it right the first time.

---

How do you maintain a driveway retaining wall and spot problems early?

A well-built wall needs very little attention, but a quick seasonal check takes 15 minutes and catches problems before they become structural failures.

Periodic inspection checklist:

• Look for bulging or leaning along the wall face — any outward movement is a warning sign
• Check for new cracks, especially horizontal cracks in block or concrete walls
• Inspect weep holes and drain outlets for blockage after heavy rain
• Look for pooled water at the base or behind the wall
• Watch for vegetation pushing into joints or growing along the base
• Monitor after freeze-thaw cycles and heavy rain events

Routine maintenance tasks:

• Clear weep holes and drain outlets at least twice a year
• Top up the gravel pocket behind the wall if settlement has reduced the drainage layer
• Remove deep-rooted plants growing near the wall face — roots expand joints and accelerate movement
• Grade the surface above the wall to maintain drainage away from the retained soil zone
• Clean the wall face periodically to prevent staining and organic buildup

Common failure signs and what to do:

• Bulging or tilting: stop using the driveway area near the wall immediately and call a structural engineer or contractor; this is a safety issue
• Small horizontal cracks: monitor closely, check drainage outlets, and repair any blocked weep holes before the next rain season
• Settlement at the base: investigate base compaction and drainage; a sunken base usually means water has been undermining the footing

For a detailed failure-mode reference, Rokworx’s guide on retaining wall failures covers causes, early signs, and repair options.

---

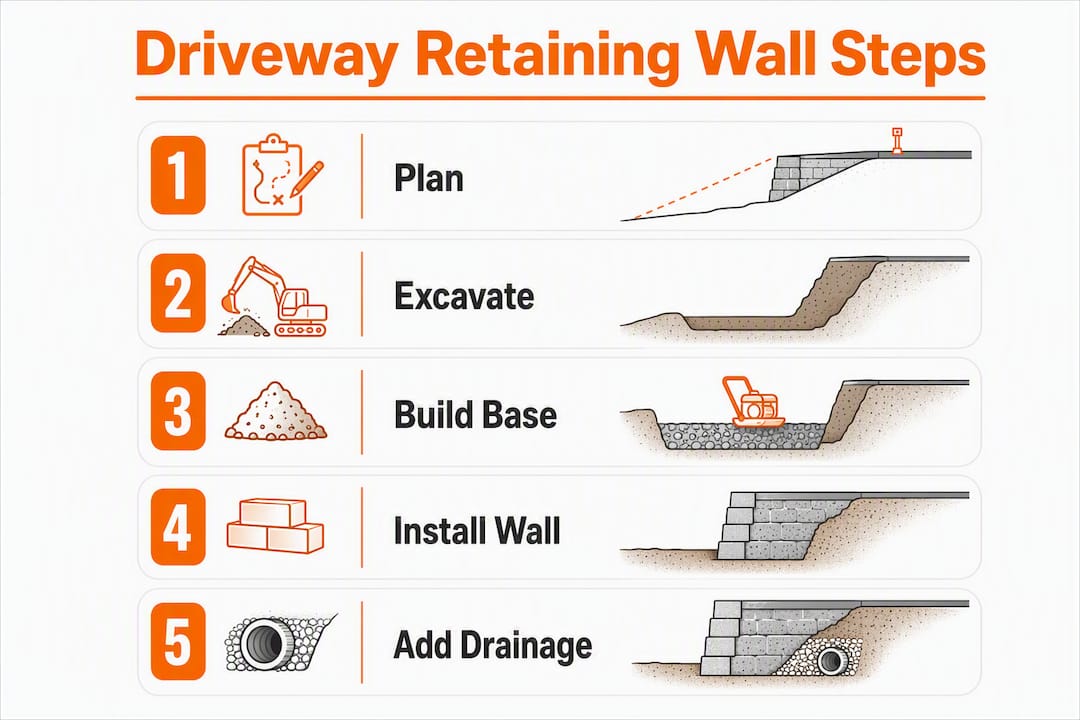

Step-by-step checklist for a small DIY driveway retaining wall

This procedure suits gravity walls under 4 ft on stable soils with no direct vehicle surcharge. If your wall exceeds that threshold, stop at step 1 and call a licensed engineer.

1. Confirm DIY suitability: wall under 4 ft, stable native soil, no driveway directly loading the wall, permit obtained
2. Call 811 and mark all utilities; wait the required clearance period before digging

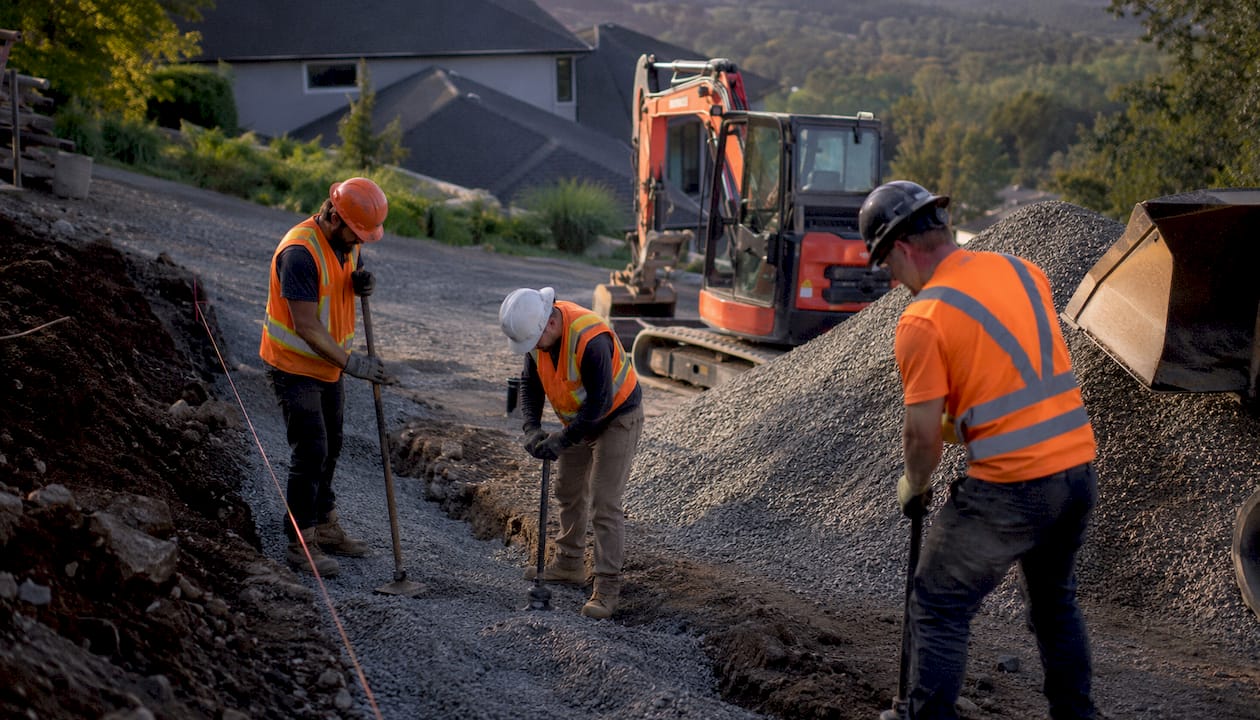

3. Excavate the base trench to the required footing depth (minimum 6 inches of compacted gravel for small walls; deeper for frost-affected areas); compact the trench bottom
4. Place and compact the gravel base: 6+ inches of compacted crushed stone, checked for level
5. Install geotextile fabric against the native soil face before placing any drainage stone
6. Place the drainage gravel zone (12-inch minimum column of clean crushed stone behind the wall line) and lay the 4-inch perforated drain pipe at the base, sloped to daylight

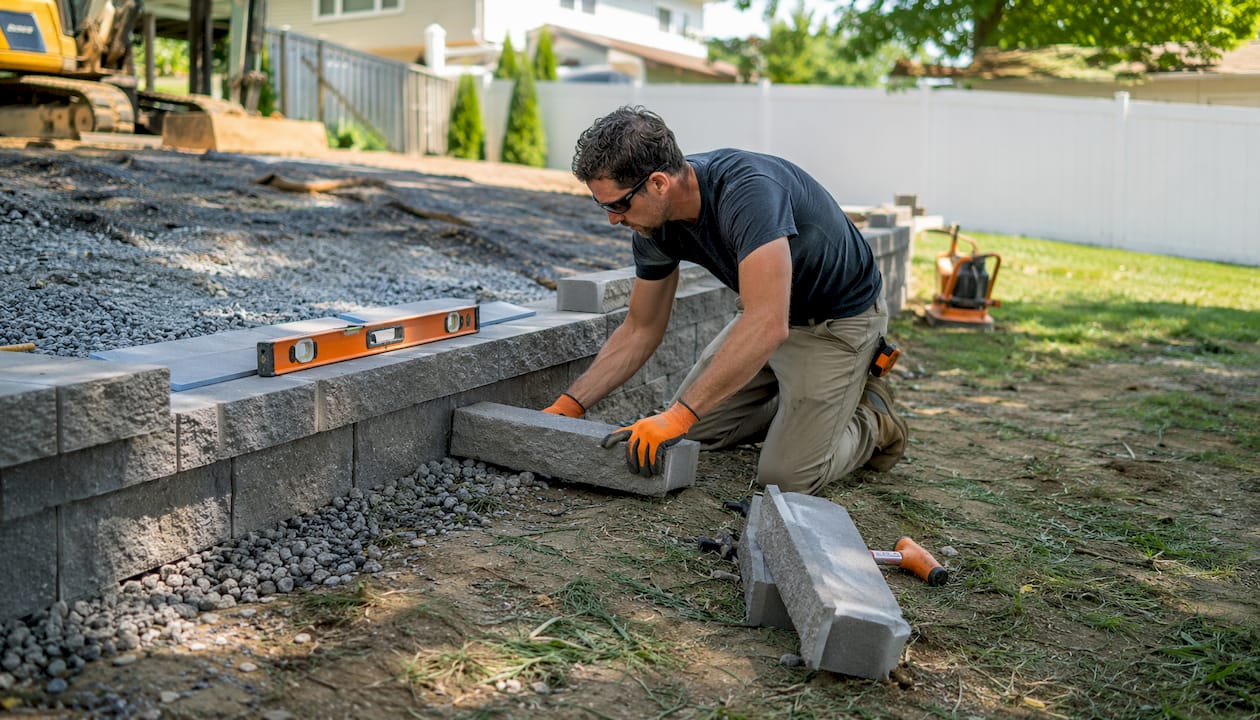

7. Build wall courses per the block manufacturer’s instructions: set the first course half-buried in the gravel base, check for level, stagger joints on each course, and set back each course slightly (batter) into the slope
8. Backfill with clean crushed stone in 6-inch lifts, compacting each lift with a plate compactor before adding the next
9. Install cap units and finish the top surface
10. Final grading: slope the surface above the wall away from the retained zone; confirm the drain outlet is clear and discharging to a stable location

Safety notes: never work in an unsupported trench deeper than 5 ft without proper shoring; wear steel-toed boots and eye protection when cutting block; operate plate compactors and excavation equipment only with proper training. For step-by-step installation guidance and tool requirements, Rokworx’s retaining wall installation guide covers the full process.

---

Why excavation and drainage drive cost and failure on driveway walls

The face of a retaining wall is what homeowners photograph. The excavation and drainage behind it are what determine whether the wall is still standing in 20 years.

Contractors consistently identify earthmoving as the largest cost line on driveway retaining wall projects. Heavy equipment — mini excavators, skid steers, compaction plates — is expensive to mobilize, and tight driveway access multiplies that cost. Rock or bedrock excavation can add days to a schedule and thousands to a budget. Spoil removal is a separate cost that many homeowners overlook entirely when getting initial quotes.

Pro Tip: Before any contractor arrives, clear the driveway and access path of vehicles, stored materials, and obstacles. Every hour of equipment time spent maneuvering around a parked car or garden hose reel comes off your contingency budget.

The remediation math is sobering. A wall built without proper drainage or a compacted footing may look fine for a year or two, then begin to bulge or settle after the first hard winter or wet season. Fixing it means excavating behind the wall, rebuilding the drainage layer, and often replacing damaged blocks or concrete. That work typically costs two to three times what correct original installation would have run.

Practical tips for controlling costs:

• Consolidate spoil haul: have a designated disposal location confirmed before excavation starts
• Commit to proper drainage materials upfront — substituting cheaper fill behind the wall is the most common cost-cutting mistake that leads to failure
• Approve the drainage outlet location and pipe slope before backfilling begins, so it doesn’t need to be excavated again
• Get at least three bids and compare drainage plans specifically, not just face material and block type

Red flags in lowball quotes: a bid that skips a drainage plan, uses vague footing language, or prices spoil disposal as “included” without specifying volume is almost always cutting corners on the elements that matter most.

Pro Tip: Ask every bidder: “Where does the drain pipe outlet, and can you show me that on the site plan?” A contractor who can’t answer that question clearly has not thought through the drainage design.

---

Key Takeaways

A driveway retaining wall requires proper drainage, a compacted crushed-stone base, and engineered footings for any wall exceeding 4 ft or supporting vehicle loads — no exceptions.

Point	Details
Drainage is non-negotiable	Install perforated drain pipe, free-draining stone backfill, and non-woven geotextile on every wall.
Engineering threshold at 4 ft	Walls over 4 ft or supporting driveway surcharge require a licensed engineer and permits in most U.S. jurisdictions.
Excavation drives cost	Earthmoving and drainage preparation are the largest cost drivers — not face material.
SRW block for DIY	Interlocking concrete block is the best DIY choice for walls under about four feet, with a long lifespan.
Rokworx for professional work	Rokworx supplies and installs rock walls and handles earthmoving for projects where engineering and excavation are required.

---

What Rokworx has learned from building driveway retaining walls

The conventional wisdom in most homeowner guides is to start with material selection. Pick your block, pick your stone, then figure out the rest. That order is backwards, and it’s the reason so many walls fail within five years.

What actually determines whether a driveway retaining wall performs is the work you can’t see once it’s finished: the footing depth, the drainage layer, the geotextile placement, and the compaction of every backfill lift. A natural stone wall with a poorly drained clay backfill will fail faster than a basic SRW block wall with a properly installed 4-inch perforated drain and clean crushed stone. The face material is almost irrelevant compared to what’s behind it.

The other thing most guides understate is how much the driveway surcharge changes the engineering. A wall that would be a straightforward DIY project in a garden becomes a different structural problem the moment a vehicle can load it. That’s not bureaucratic caution — it’s physics. The lateral pressure a wall must resist increases significantly when a loaded vehicle sits within the influence zone above the wall. Treating that wall as a garden project is how homeowners end up with a remediation bill larger than the original job.

For constrained sites, rocky ground, or projects where excavation and rock supply need to be coordinated, getting the earthmoving and wall installation from the same contractor saves time and eliminates the finger-pointing that happens when a drainage failure occurs and two separate contractors each blame the other’s work.

---

Rokworx builds the walls that hold

When a driveway retaining wall needs more than blocks from a home improvement store, Rokworx is the practical next step. Rokworx supplies and installs rock walls and handles the earthmoving that most contractors price separately, which means one crew, one plan, and drainage that’s designed before the first block goes in.

The difference for homeowners with steep sites, tight access, or walls that need to carry real vehicle loads is that Rokworx brings excavation equipment and rock supply together. You’re not coordinating between a landscaper, a rock supplier, and an excavation crew. For design inspiration before you commit to a system, the rock wall ideas gallery shows finished driveway and retaining wall projects across a range of styles and site conditions. To get a quote or discuss your site, contact Rokworx directly through the rock walls service page.

---

Authoritative references and further reading

These sources are worth bookmarking when you’re working through permit applications, engineering discussions, or material specifications.

• IBC (International Building Code): the governing code for wall height, surcharge, and permit triggers in most U.S. jurisdictions; consult your local building department for the adopted edition and any local amendments
• ASCE 7 (Minimum Design Loads for Buildings and Other Structures): the standard engineers reference for surcharge loads, including residential driveway vehicle loads
• NCMA (National Concrete Masonry Association): publishes design manuals for segmental retaining walls, including geogrid spacing and embedment guidance; available at ncma.org
• Best materials for retaining walls: system design guidance covering drainage, geotextile, and material combinations
• Retaining wall design, types, and installation: engineering-focused reference covering footing types, geogrid, and backfill specs
• Retaining walls for steep driveways: design and permit guidance specific to driveway surcharge conditions
• 811 (Call Before You Dig): the national utility locate service; call at least three business days before any excavation

Always confirm permit requirements and height triggers with your local building department. Bring the relevant IBC section and any engineer’s drawings to that conversation — it moves faster when you arrive prepared.

Recommended

• Excavation for Retaining Walls: A Melbourne DIY Guide
• How to Install Retaining Walls in Your Garden | Rokworx
• Retaining Wall Maintenance: A Melbourne Homeowner’s Guide
• Retaining Wall Drainage: Melbourne Homeowner’s Guide
