Excavation for Retaining Walls: A Melbourne DIY Guide

Excavation for retaining wall construction is defined as the process of digging a precisely dimensioned trench to support a buried wall base, drainage layer, and compacted stone foundation. Get this step wrong and the wall leans, cracks, or collapses under soil pressure. Get it right and you have a structure that holds for decades. This guide covers the exact depth and width specifications, base compaction standards, drainage requirements, and step-by-step techniques Melbourne homeowners need to build a retaining wall that lasts.

What excavation dimensions are essential for retaining wall stability?

The minimum burial depth for a retaining wall is 1 inch of buried wall for every 1 foot of exposed height, with a minimum of 6 inches regardless of wall height. That ratio is the starting point, not the finish line.

For a 4-foot wall, the math works out to roughly 14 inches of total excavation depth. That figure accounts for burying one full 8-inch block plus a base preparation layer beneath it. Skipping that base layer is one of the most common mistakes Melbourne DIYers make on sloped suburban blocks.

Trench width follows a similar formula. The standard trench width equals block depth plus 12 inches for a drainage zone behind the wall plus 6 inches of working room in front. For a 12-inch block, that puts your total trench width at approximately 30 inches. That extra space is not optional. You need it to install drainage correctly and to set each block without disturbing the base.

Soil type and frost conditions also change the calculation. Clay soils and heavy surcharge loads require deeper trenches than sandy or loam soils because clay holds water and shifts under pressure. Melbourne’s clay-heavy soils in suburbs like Frankston and Berwick make this adjustment especially relevant. Always check your local council guidelines for frost line depth before you finalize your trench dimensions.

• Mark your trench boundaries with spray paint or string lines before digging.
• Add 2–4 extra inches of depth in clay-heavy soils to allow for better drainage stone.
• Never assume the ground is level. Check with a laser level or spirit level across the full trench length.

Pro Tip: Dig 2 inches deeper than your calculated minimum. That buffer gives you room to add or remove base stone without re-excavating.

How to prepare and compact the base trench for a secure retaining wall foundation

The base layer is the foundation of your entire retaining wall. A poorly prepared base causes settling, tilting, and eventual wall failure, no matter how well you stack the blocks above it.

The correct material for the base is #57 or #67 clean angular crushed stone. Angular stone locks together under compaction and drains freely. Sand and screenings are prohibited. They compact poorly, retain water, and shift under load, which is exactly the opposite of what a buried wall base needs.

Compaction must reach 95% standard Proctor density. That is the industry benchmark for base layers under structural walls. A plate compactor achieves this in two or three passes on a 4-inch stone layer. Renting a plate compactor for a half-day is worth every dollar.

Follow these steps to prepare a solid base:

1. Remove all organic material, roots, and loose soil from the trench floor.
2. Spread a 4-inch layer of #57 or #67 crushed stone evenly across the trench bottom.
3. Run a plate compactor over the stone in two overlapping passes.
4. Screed the compacted stone flat using a straight board or screed rail.
5. Check level across the full trench length with a spirit level or laser level.
6. Add or remove stone in low or high spots, then compact again.
7. Confirm the surface is level before placing your first block.

Spending about 90 minutes on leveling and compaction is the single most important investment in your wall’s long-term alignment and durability. Rushing this step creates problems that no amount of careful block-laying can fix later.

Pro Tip: Dampen the crushed stone slightly before compacting. Moisture helps the particles bind together and reach the 95% Proctor target faster.

Why is drainage installation critical during retaining wall excavation?

Neglected drainage is the primary cause of residential retaining wall failures. Water builds up behind the wall, increases lateral soil pressure, and eventually pushes the structure forward or causes it to crack. Melbourne’s wet winters make this risk especially high on properties with clay-heavy subsoil.

A properly installed drainage system has three components working together:

• Perforated drain pipe: Placed at the base of the wall behind the first block course, sloped at a minimum 1% grade toward a discharge point.
• Nonwoven geotextile fabric: Wrapped around the drainage stone to prevent fine soil particles from clogging the pipe over time.
• Vertical drainage stone column: A 12-inch wide zone of clean crushed stone running the full height of the backfill, sitting directly behind the wall.

The pipe must slope continuously toward an outlet. A flat or back-sloped pipe holds water instead of moving it, which defeats the entire system. Discharge the pipe to a stormwater drain, a gravel sump, or a lower point on the property where water can disperse safely.

Water pressure behind a retaining wall is invisible until the wall fails. Installing a perforated drain pipe, geotextile fabric, and a vertical stone column during excavation is the only reliable way to manage that pressure before it becomes a structural problem. Skipping drainage to save time is the most expensive shortcut in retaining wall construction.

For properties with heavy clay soils or significant slope, consider rock drainage solutions that integrate with your retaining wall system. Drainage planning belongs in the excavation phase, not as an afterthought during backfill.

What tools and steps does a DIY retaining wall excavation require?

The right tools make excavation faster, safer, and more accurate. For small walls under 3 feet, hand tools are sufficient. Larger walls on Melbourne’s sloped blocks typically need mechanical help.

Tool choice directly impacts excavation accuracy and efficiency. A mini excavator hired for a day can complete in two hours what takes a weekend with hand tools. For walls over 3 feet on sloped sites, machinery is the practical choice.

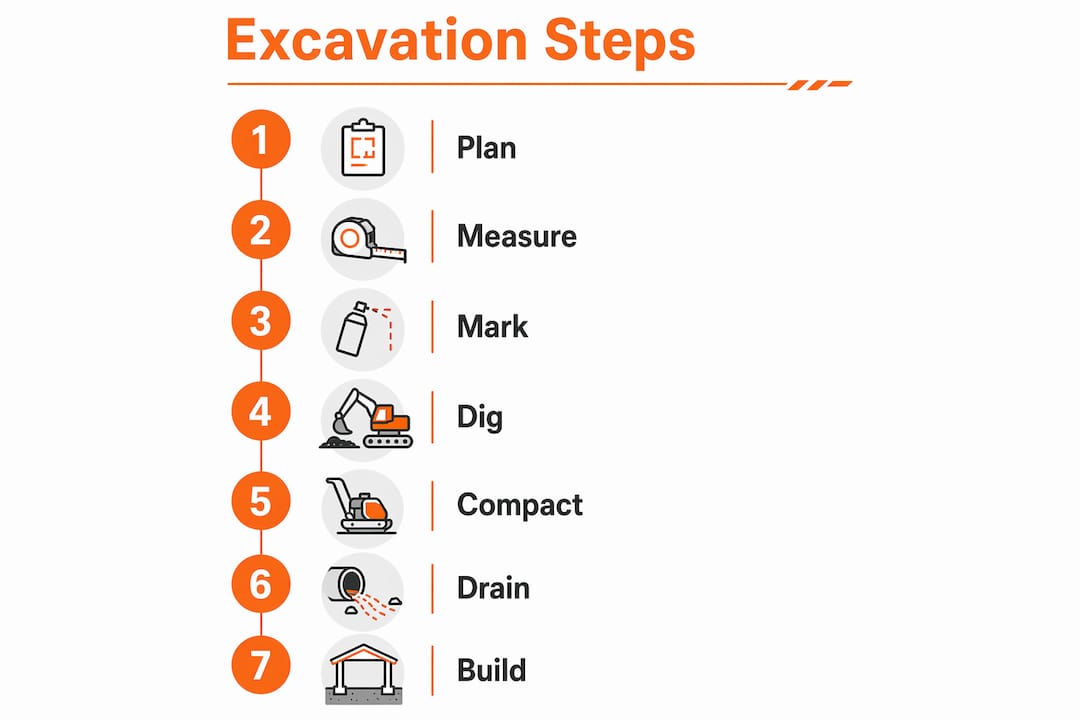

Follow this process from layout to backfill prep:

1. Mark the wall line with stakes and string, then spray-paint the trench outline on the ground.
2. Call Dial Before You Dig (1100 in Australia) to locate underground services before breaking ground.
3. Strip topsoil and set it aside for reuse in garden beds.
4. Excavate to your calculated depth, keeping trench walls as vertical as possible.
5. Remove all loose and organic material from the trench floor.
6. Check trench depth at multiple points with a measuring tape and level.
7. Spread and compact your crushed stone base layer.
8. Install drainage pipe and geotextile fabric before placing the first block.

Inadequate excavation depth causes walls to lean forward under soil pressure within the first few years. Checking depth at every 3-foot interval along the trench prevents this problem before it starts.

Pro Tip: Pile excavated soil at least 3 feet back from the trench edge. Soil piled too close adds surcharge load to the trench walls and increases collapse risk.

For guidance on installing retaining walls from base to cap, Rokworx covers the full process including block selection and drainage integration.

Key Takeaways

Proper excavation for a retaining wall requires precise trench depth, compacted crushed stone base, and a complete drainage system installed before the first block goes down.

What I’ve learned from watching walls fail before they’re finished

The most common mistake I see on Melbourne retaining wall projects is not the block choice or the mortar. It is the trench. Homeowners dig to what looks like a reasonable depth, throw down some sand because it is easy to level, and start stacking. Six months later the wall tilts forward and the whole project comes apart.

The 1/8 burial rule is a floor, not a target. On clay-heavy sites, which describes a large portion of Melbourne’s outer suburbs, I would always go deeper and wider than the formula suggests. Clay moves. It holds water. It expands and contracts with the seasons. A trench that is technically correct on paper can still fail if the soil conditions are not factored in properly.

The other thing most guides understate is the working room requirement. Thirty inches of trench width sounds like a lot when you are standing in the backyard with a shovel. But once you are down in that trench trying to set a drain pipe at the right slope while keeping the base stone level, you will wish you had dug wider. Tight trenches produce sloppy drainage installs, and sloppy drainage is how walls fail.

My honest advice: spend the money on a plate compactor rental and a laser level. Do not eyeball the base. Do not rush the compaction. And if the project is on a steep slope or involves walls over 4 feet, talk to a professional before you dig. The excavation phase is where the wall either succeeds or fails. Everything above ground is just finishing work.

— MYBMC

Rokworx is ready to help with your retaining wall project

Planning a retaining wall in Melbourne and not sure where to start with the excavation?

Rokworx specializes in rock wall construction and earthmoving across Melbourne, handling everything from site assessment and excavation to drainage installation and rock supply. Whether you are building a small garden wall or a large structural retaining wall on a sloped block, the Rokworx team brings the equipment and experience to get the foundation right. Browse rock wall ideas to see what is possible on your property, then get in touch with Rokworx for a site consultation.

FAQ

How deep should I dig for a retaining wall?

Dig at least 1 inch deep for every 1 foot of exposed wall height, with a minimum of 6 inches. A 4-foot wall requires approximately 14 inches of total excavation depth to accommodate the buried block and base stone.

What is the correct trench width for a retaining wall?

The trench should equal your block depth plus 12 inches for a drainage zone behind the wall plus 6 inches of working room in front. For a 12-inch block, that totals approximately 30 inches wide.

Can I use sand as a base for a retaining wall?

Sand is not suitable as a base material. It compacts poorly, retains water, and shifts under load. Use #57 or #67 clean angular crushed stone compacted to 95% standard Proctor density instead.

Why does a retaining wall need drainage behind it?

Water pressure behind a wall is the leading cause of residential retaining wall failures. A perforated drain pipe, nonwoven geotextile fabric, and a vertical crushed stone column manage that pressure and protect the wall’s structural integrity.

Do I need a permit to build a retaining wall in Melbourne?

Permit requirements in Melbourne depend on wall height and proximity to boundaries. Walls over 1 meter typically require a building permit under Victorian building regulations. Always check with your local council before starting excavation.
