Retaining Wall Drainage: Melbourne Homeowner’s Guide

Why retaining wall drainage determines whether your wall stands or falls

Poor drainage is the leading cause of retaining wall failure in Australia. Walls exceeding typical low-height thresholds in height require formal drainage to prevent failure, and skipping it is not a calculated risk. It’s a guarantee of eventual collapse.

Retaining wall drainage is the controlled removal of water from behind a wall before it builds hydrostatic pressure. When saturated soil has nowhere to drain, water pushes against the wall face with force that most residential walls were never designed to handle. A correctly drained wall relies on four core components working together:

• Drainage aggregate (typically 20mm clean crushed rock) placed 400–500mm deep directly behind the wall face on Melbourne clay soils (use the lower range only for free-draining sandy sites)
• Agricultural pipe (ag pipe), a slotted 100mm pipe at the wall base that collects and carries water to a safe outlet
• Geotextile filter fabric wrapped around the aggregate zone to stop fine soil particles from clogging the gravel over time
• Weep holes installed through the lowest sleeper course at 1.8–2.4m spacing as a secondary pressure-relief path

Melbourne’s reactive clay soils make all of this more urgent than the generic Australian standard assumes. Clay holds water and drains slowly, which means the drainage zone needs to be deeper, the pipe grading more precise, and the weep hole spacing tighter than you’d need on a sandy site.

How hydrostatic pressure builds and what stops it

Water exerts pressure in all directions proportional to its depth. For every 1.0m of standing water behind a wall, lateral hydrostatic pressure increases by approximately 9.8 kN/m². On a wall retaining 2.0m of saturated soil with no drainage, that force can equal or exceed the total earth pressure the wall was designed to carry.

The four-component system addresses this at every stage:

• Geotextile filter fabric sits between the native soil and the drainage aggregate, stopping fine particles from migrating in and silting up the gravel zone over time. Without it, even a correctly installed system can fail silently over several years.
• Drainage aggregate creates a high-permeability zone so water moves downward quickly rather than building up against the wall face. For Melbourne’s clay soils, use 400–500mm aggregate depth as standard.
• Ag pipe collects water at the base and carries it out. The pipe must maintain a minimum 1:100 fall to a clear outlet, and it should be wrapped in a geotextile sock to prevent silting inside the pipe itself.
• Weep holes act as both a secondary relief valve and a diagnostic tool. If they discharge water during heavy rain, the system is working. If they stop discharging entirely after rain, that’s a signal worth investigating.

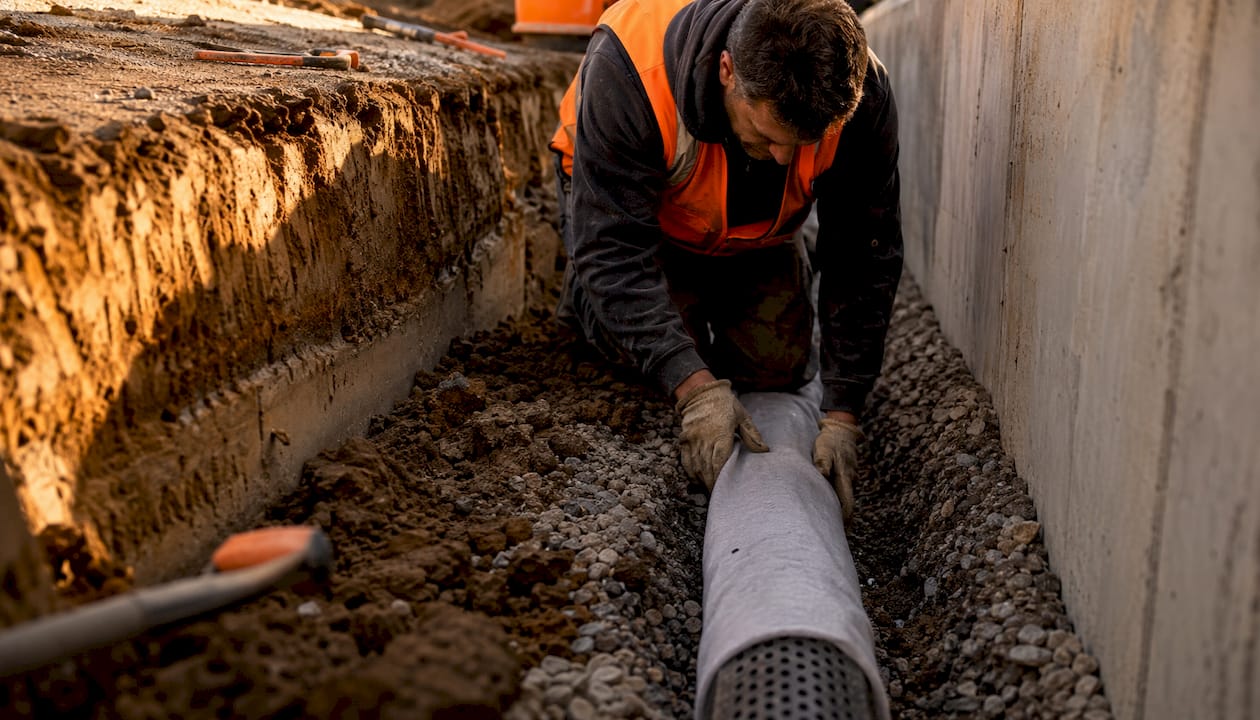

Pro Tip: Wrap your ag pipe in a geotextile filter sock before installation. Most pre-wrapped pipe is available from drainage suppliers, and it costs almost nothing compared to the labor of excavating a silted-up pipe later.

Why Melbourne’s clay soils demand more than standard drainage

Melbourne’s reactive clay soils hold water and drain slowly. That combination demands a more conservative drainage design than the generic Australian standard assumes. Clay soils require a deeper drainage aggregate zone behind the sleepers, correctly sized ag pipe, and weep holes at closer intervals than you’d use on a sandy site.

Standard drainage backfill is not enough on a clay site. Soil with high clay content has low permeability, so water accumulates faster than it can move through the aggregate zone. The fix is straightforward: use 20mm clean crushed rock (not mixed fill, not pea gravel), extend the aggregate zone generously, and confirm the pipe has a continuous fall with no low points where water can pool.

Surface water management matters just as much as the subsurface system. If roof downspouts, paved areas, or sloped ground direct water toward the top of the retained zone, even a well-designed ag pipe system can be overwhelmed during Melbourne’s intense autumn and winter rainfall. Grade the surface behind the wall crest at a minimum 2% slope away from the wall, and intercept runoff with a surface drain channel before it reaches the backfill.

Pro Tip: For walls in Melbourne’s inner and eastern suburbs, where heavy clay is common, use the closer 1.8m weep hole spacing rather than the maximum 2.4m. The extra holes cost almost nothing and provide meaningful relief during prolonged wet periods.

Common drainage failures and how to avoid them

Most retaining wall failures follow predictable patterns. Knowing them makes them avoidable.

• No drainage at all. The wall performs fine for a few years, then fails after a wet season. Retrofitting drainage to a completed wall typically requires partial or full demolition. Install it during the original build.
• Wrong backfill material. Using soil, clay, or mixed fill instead of clean aggregate. These materials have low permeability and will not drain effectively regardless of what else is installed.
• No geotextile fabric. The aggregate zone silos up with fine particles over years of rainfall. The system looks intact from outside but stops working from within.
• Ag pipe with no outlet. A pipe that terminates in the ground is not drainage. Water fills the pipe, backs up, and the system fails. Every ag pipe installation needs a continuous fall and a clear discharge point.
• Blocked or covered weep holes. Soil pushed against the wall face during backfilling can cover weep holes entirely. Aggregate must extend to the weep hole openings and remain unobstructed.

Watch for these warning signs: weep holes that stop discharging after rain, white mineral staining on the wall face, soil settlement behind the wall, or any bulging or rotation of the wall itself. Absent weep hole flow after rain suggests silted aggregate or a blocked pathway and warrants investigation before the problem progresses.

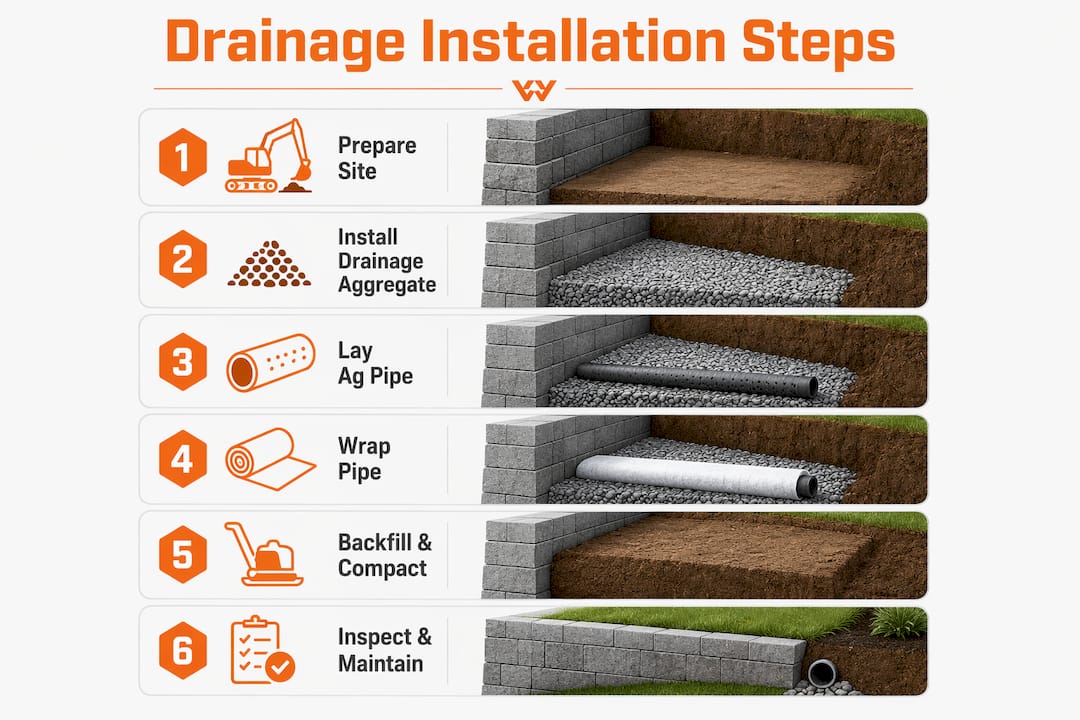

How to install retaining wall drainage in Victoria

Victorian regulations and practical installation steps align closely. Follow this sequence for a compliant, long-lasting system.

1. Check permit requirements. Under AS 4678 and most Victorian council codes, walls exceeding 1.0m require engineering design including a documented drainage system. Walls above 1.5m almost universally require a Development Application or CDC. Check your local permit requirements before breaking ground.
2. Excavate the drainage zone. For Melbourne’s clay sites, dig 400–500mm behind the wall face for the aggregate zone. See the Melbourne DIY excavation guide for soil-specific depth guidance.
3. Install geotextile filter fabric first. Lay it against the excavated soil face before any aggregate goes in. Fold it up the sides so it wraps the entire drainage zone like a sleeve.
4. Place drainage aggregate. Backfill with 20mm clean crushed rock to within about 500mm of the top of the retained height. Do not use soil, clay, or mixed fill.
5. Lay the ag pipe at the base. Position the slotted pipe at the lowest point of the aggregate zone with perforations facing down. Confirm a minimum 1:100 fall toward the outlet before burying it.
6. Install weep holes in the lowest sleeper course. Space them at 1.8–2.4m intervals. Use purpose-made PVC fittings between sleepers. Confirm each opening faces outward and is not obstructed.
7. Daylight the ag pipe outlet. Connect to a stormwater pit, a drainage swale, or a daylight outlet at the end of the wall. Never terminate the pipe in the ground.
8. Backfill and inspect. After backfilling, check every weep hole from the front of the wall to confirm it is open. Run a garden hose test: water placed in the drainage zone should emerge at the outlet within 60 seconds.

Drainage must be installed as the wall is built, not as an afterthought once the sleepers are in. Retrofitting drainage to a completed retaining wall typically requires partial or full demolition of the wall. The cost of doing it right during construction is a fraction of the cost of rebuilding later.

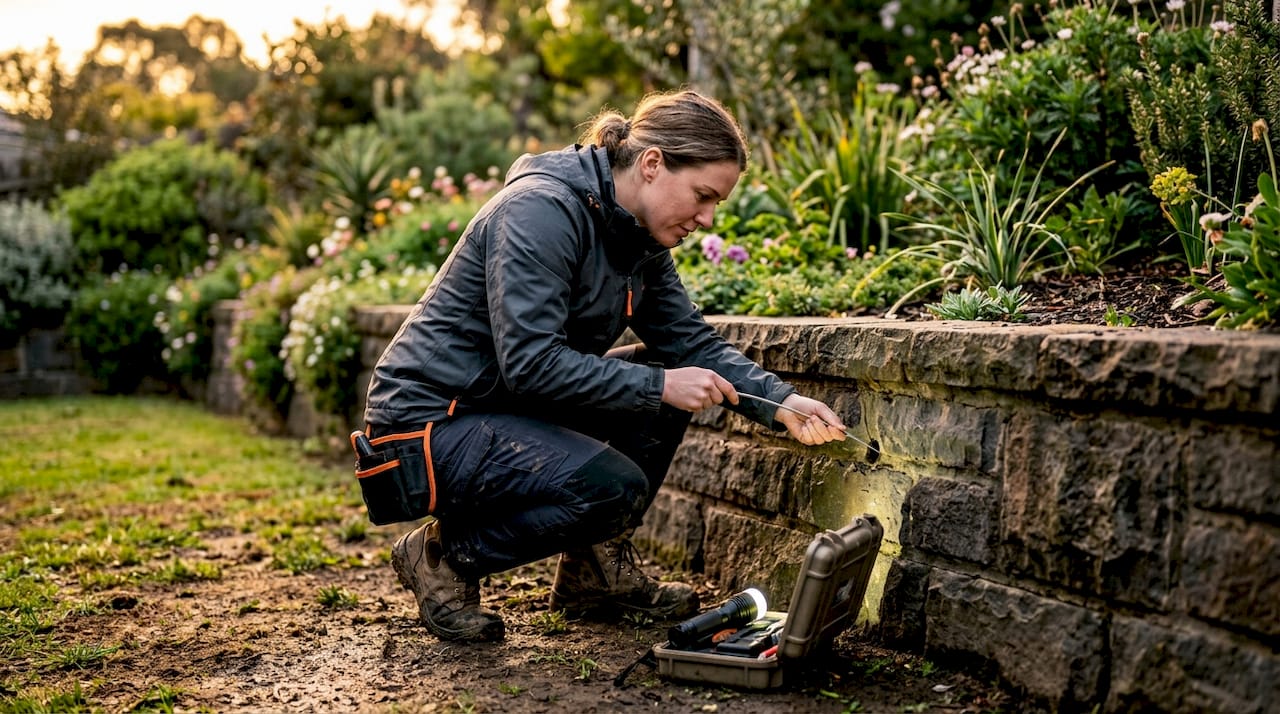

For ongoing maintenance, inspect weep holes annually and after major rainfall events. Clear any blockages with a thin rod. If soil or fine material discharges through weep holes, the geotextile fabric has likely failed and needs professional assessment. You can find drainage inspection tips from drainage specialists if you’re unsure what to look for.

Comparing top Melbourne retaining wall drainage contractors

Four Melbourne providers stand out for homeowners who want professional drainage installation rather than a DIY build.

Rock Walls Melbourne holds a Registered Building Practitioner certification (CDB-L65431) and carries $20 million in insurance. The company focuses on natural rock walls using sustainable materials, and claims walls up to 80% more cost effective than alternatives. For homeowners who want an eco-conscious approach without sacrificing compliance, this is a strong fit.

Grandview Retaining Walls Melbourne brings 25 years of licensed builder experience and has worked with major home builders including Metricon, Boutique Homes, and Nostra Homes. Their work is engineered to construction standards, which matters most on sites with complex drainage requirements or walls above 1.5m. They specialize in projects from $10,000 upward and offer a free ballpark quote before any site visit.

Landscaping Melbourne suits homeowners who want retaining walls and drainage handled as part of a broader landscape project. Their service covers custom design, irrigation, decking, and paving alongside wall construction, so drainage gets integrated into the full outdoor design rather than treated as a separate trade.

A.L Retaining Walls & Landscaping is a local contractor offering general retaining wall and landscaping services. Suitable for straightforward residential projects where a full landscaping package is also needed.

Rokworx: a different approach to retaining walls in Melbourne

Rock walls built with the right materials and proper drainage from day one outlast poured concrete alternatives and cost less to maintain over time.

Rokworx supplies and installs rock walls across Melbourne, combining earthmoving, rock supply, and wall construction under one service. That means the drainage zone, aggregate selection, and pipe installation happen as part of the build, not as an add-on. For homeowners who want a wall that handles Melbourne’s clay soils without the back-and-forth of coordinating multiple trades, Rokworx offers a direct path from excavation to finished wall. Browse rock wall ideas to see what’s possible for your site.

Key Takeaways

Proper retaining wall drainage, using drainage aggregate, ag pipe, geotextile fabric, and weep holes, is the single most effective way to prevent wall failure in Melbourne’s clay soil conditions.
