Retaining Wall Excavation: Melbourne’s Best Contractors

Who are the best retaining wall excavation contractors in Melbourne?

Getting the excavation right is what separates a retaining wall that lasts decades from one that leans and cracks after the first wet winter. Melbourne’s clay-heavy soils and sloped suburban blocks make proper site preparation non-negotiable, and the contractor you choose determines everything from trench depth to drainage design. Here are the six strongest options in the market right now.

Orb Excavations & Landscaping covers the widest service range of any contractor on this list, handling residential, commercial, and industrial projects with licensed professionals and property insurance. If your project involves multiple stages, from site cuts through to finished landscaping, Orb can manage the whole sequence without you coordinating separate trades.

Hammer Excavations built its reputation on tight-access work, the kind of job where a standard excavator simply won’t fit. With over 18 years of residential and commercial experience and a commitment to transparent pricing, they suit homeowners who want honest quotes and no surprises on invoice day.

Rock Walls Melbourne is the standout choice for anyone prioritizing sustainability. They hold a Registered Building Practitioner license (CDB-L65431) and carry $20 million in insurance, which matters when you’re dealing with structural work on a residential property. Their use of natural and recycled rock also gives finished walls a character that concrete sleepers rarely match.

Grandview Retaining Walls Melbourne positions itself explicitly as a licensed builder operation, not a landscaping crew. With 25 years of experience and a focus on engineering standards and proper drainage, they handle projects from $10,000 upward, including concrete sleeper, timber, and rock wall construction across north and east Melbourne.

Kosta & Sons Excavation offers 24-hour assistance, which is genuinely useful when a project hits an unexpected complication mid-dig. Their 13-plus years of certified earthmoving experience covers everything from trenching and rock breaking to full retaining wall construction.

AWM Diggers is a thin-profile provider with limited public information, but they specialize in retaining walls and tight-access excavation. Worth a call if your site has access constraints that rule out larger operators.

How do you choose the right retaining wall excavation contractor?

The single biggest mistake Melbourne homeowners make is choosing on price alone. A low quote that skips soil testing, proper compaction, or drainage installation will cost far more to fix than it saved upfront. Licensed and insured professionals with a clear track record of retaining wall work are the baseline, not a bonus.

Ask every contractor these questions before signing anything:

• Are you a licensed builder or registered building practitioner for structural retaining wall work?
• Do you carry public liability and property damage insurance? What are the coverage limits?
• Will you conduct a soil test or site inspection before quoting?
• How do you handle drainage behind the wall, and what materials do you specify?
• Can you provide references from retaining wall projects of similar scope?
• What does your quote include, and what triggers additional charges?
• How long will the project take, and what weather delays do you allow for?

Red flags to watch for:

• No written quote or a quote that lists only a lump sum with no line items
• Reluctance to discuss drainage or dismissal of it as unnecessary
• No license or insurance documentation available on request
• Pressure to start immediately without a site inspection

Pro Tip: Ask for a breakdown of excavation depth, base preparation, and drainage specification in writing before any work begins. A contractor who can’t or won’t provide that detail is telling you something important about how they build.

What does the retaining wall excavation process actually involve?

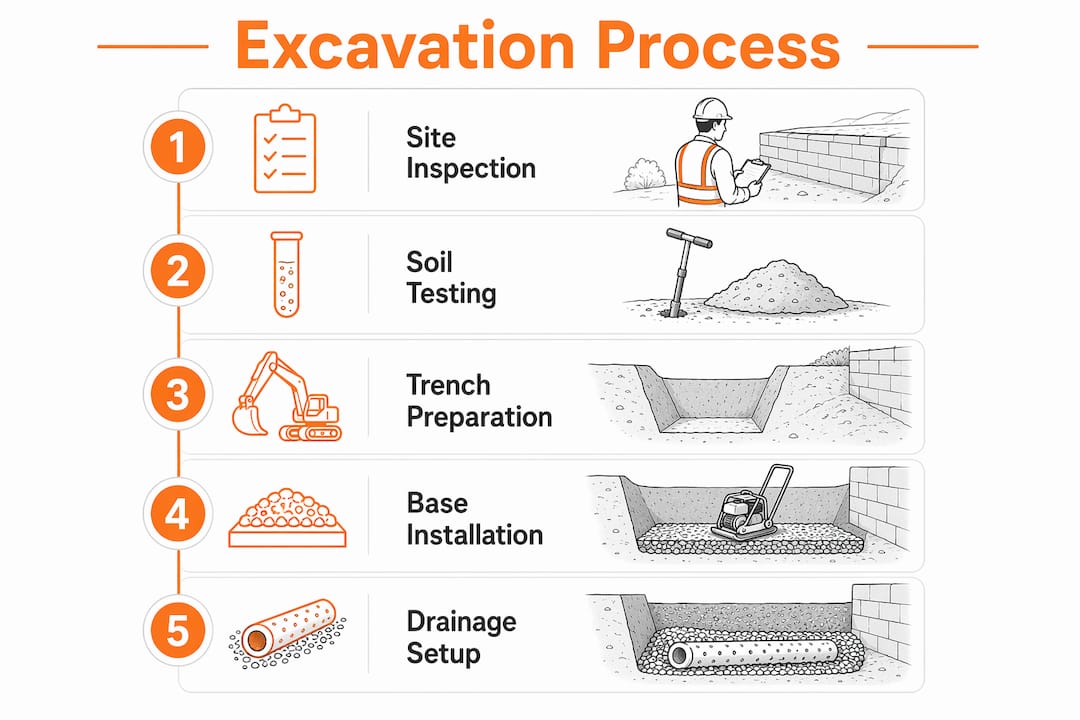

Proper site preparation is the foundation of every durable retaining wall, and it starts well before any machinery arrives on site. Here’s how a professional excavation and construction sequence runs:

1. Site inspection and soil testing. A qualified contractor assesses slope, drainage patterns, soil type, and bearing capacity before drawing up any plan. Melbourne’s reactive clay soils behave very differently from sandy loam, and that difference changes excavation depth, compaction method, and drainage design.

2. Excavation and trench preparation. For segmental retaining walls, proper embedment guidelines require a base trench at least 600mm wide, with depth calculated as a minimum of 150mm of aggregate base plus additional depth for buried block. The rule of thumb is 25mm of extra depth for every 300mm of wall height. All vegetation and organic material must be removed from the trench before any base material goes in.

3. Base compaction. The trench bottom gets at least two passes with a walk-behind plate compactor. On clay-heavy or previously disturbed soils, contractors add compacted aggregate in 200mm lifts to build a stable sub-base. Skipping this step is the most common cause of wall settlement.

4. Drainage installation. Water pressure, not soil pressure, is the primary cause of retaining wall failure. Before backfilling begins, geotextile filter fabric lines the excavated soil face, followed by drainage aggregate, then a perforated drain pipe at the base. That pipe needs a positive outlet at each end of the wall.

“A bowed or leaning retaining wall generally can’t be salvaged. The best solution is to dismantle it and start over with new materials and construction methods that promote water drainage.” — Mark McCullough, mason, This Old House

5. Wall construction and backfill. Each course is set back 12–25mm from the one below, creating the backward lean that shifts load into the hillside. Backfill goes in behind each lift and gets compacted in 150–200mm layers. For walls over 900mm, geogrid reinforcement is typically installed every three to four courses.

Typical equipment on a Melbourne retaining wall excavation:

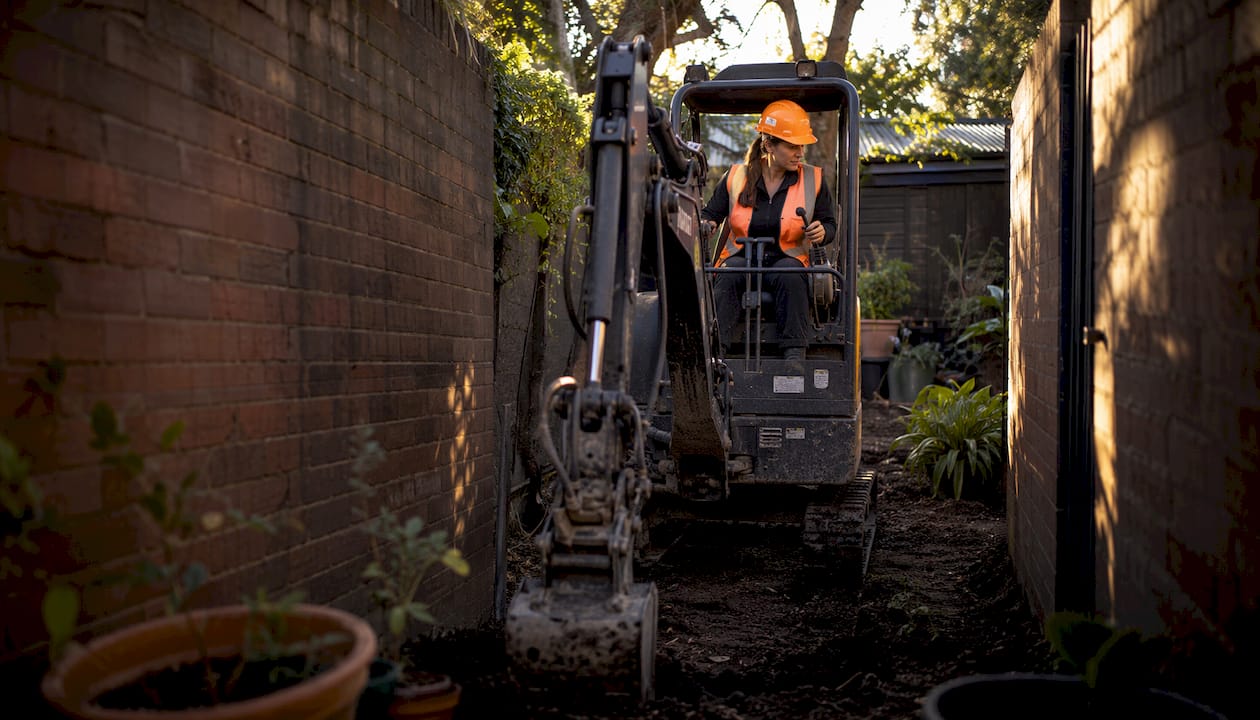

• Mini excavators (for tight residential access)
• Standard excavators (for open sites and bulk earthmoving)
• Walk-behind plate compactors
• Bobcat skid steers for material handling

For managing excavation spoil and debris removal, skip bin hire in Melbourne is the most practical option for residential projects, keeping the site clean and compliant throughout the build.

What permits and standards apply to retaining wall excavation in Melbourne?

Melbourne homeowners generally need a building permit for retaining walls above a certain height, and getting this wrong creates real legal and financial exposure. The specific threshold varies by local council, but walls over 1 meter typically trigger permit requirements, and walls over 1.5 meters almost always require an engineer’s design.

Key compliance points for Melbourne retaining wall projects:

• Check your local council’s specific height threshold before any work starts. Some councils set the trigger at 800mm, others at 1 meter.
• Walls over the permit threshold require a structural engineer’s design and a building permit application before excavation begins.
• The contractor must hold appropriate licensing. For structural retaining walls, a Registered Building Practitioner or Licensed Builder credential is the standard, not optional.
• Excavation near property boundaries may trigger additional setback and notification requirements under the Building Act 1993.
• Foundation compaction must meet minimum standards, typically 95% Standard Proctor density for the base material.

Pro Tip: Download your local council’s planning and building portal checklist before your first contractor meeting. Showing up with that document signals to contractors that you know what compliance looks like, and it tends to produce more detailed, accurate quotes.

Useful resources for Melbourne homeowners include the Victorian Building Authority (VBA) for practitioner license verification, your local council’s building services department for permit applications, and Engineers Australia for finding a structural engineer if your wall requires an engineered design.

Key Takeaways

Choosing a licensed, experienced contractor with proper drainage knowledge is the single most important decision in any retaining wall excavation project.

Rokworx brings rock walls and earthmoving together in Melbourne

If you’ve been comparing contractors and realized your project needs both excavation and a finished rock retaining wall, Rokworx handles both under one roof. Rather than coordinating a separate excavation crew and a wall builder, you get earthmoving, site preparation, and rock wall construction from a single Melbourne-based team that knows how the two stages connect.

Rokworx supplies and installs landscaping rocks, garden stones, and retaining rock walls across Melbourne, with earthmoving and erosion control services built into the same offering. Whether you need a large retaining rock wall for a sloped backyard or a full site cut before construction begins, the team brings the equipment and the materials to the same job. Explore the full range of rock wall options or get in touch directly to discuss your site.
