Retaining Wall Footings Depth: A Homeowner’s Guide

For most backyard segmental or modular block walls under 4 feet, the minimum retaining wall footing depth is a 6-inch compacted aggregate pad with at least 6 inches of buried block below finished grade. For walls above 6 feet, manufacturers recommend 1 inch of buried block per foot of wall height. Poured concrete structural walls are a different story: their footings typically need to reach below grade and extend below the local frost line. In freeze-prone regions, they must extend below the local frost line.

• Segmental/modular block walls: Minimum 6 inches of buried block (embedment), set on a 4–6 inch compacted angular aggregate pad. Allan Block’s embedment guidelines state the minimum buried block is 6 inches, and some manufacturers recommend 1 inch of additional embedment for every foot of total wall height above 6 feet.
• Poured concrete/structural walls: Footings must reach competent soil and usually extend to or below the local frost line. Residential building codes across many U.S. regions mandate footing depths of 18–30 inches minimum, and a 4-inch thick concrete footer is generally not adequate for a structural wall.

Three conditions automatically push you past any rule of thumb: the wall exceeds 4 feet in retained height, a surcharge load sits behind it (driveway, structure, slope), or the soil at the base is soft fill rather than competent native ground. Any one of those means you need an engineer and likely a permit.

Pro Tip: Before you dig a single inch, call your local building department. Frost depth, permit thresholds, and minimum footing depths vary significantly by municipality, and a five-minute phone call can save you from tearing out a completed wall.

Table of Contents

• What footing depth does each wall type need?
• How does frost depth control how deep your footings go?
• How wide should your footing base be?
• What materials and construction details make footings actually work?
• When do you need a permit or a structural engineer?
• Step-by-step installation checklist with example measurements
• Common DIY mistakes and how to avoid them
• Key Takeaways
• The part most guides skip
• Rokworx handles the hard part
• Useful sources and further reading

What footing depth does each wall type need?

The right retaining wall foundation depth depends heavily on what you are building. Here is a practical breakdown by wall type, followed by a comparison table.

Segmental/modular block (gravity walls) are the most common DIY choice. The Allan Block and Keystone construction manuals both specify a minimum embedment of buried block sufficient to provide stability. The leveling pad should be compacted angular granular fill, typically 6 inches thick, with a width equal to the unit depth plus 12 inches. For taller walls, Keystone’s guidance uses a Height/8 formula or 6 inches, whichever is greater.

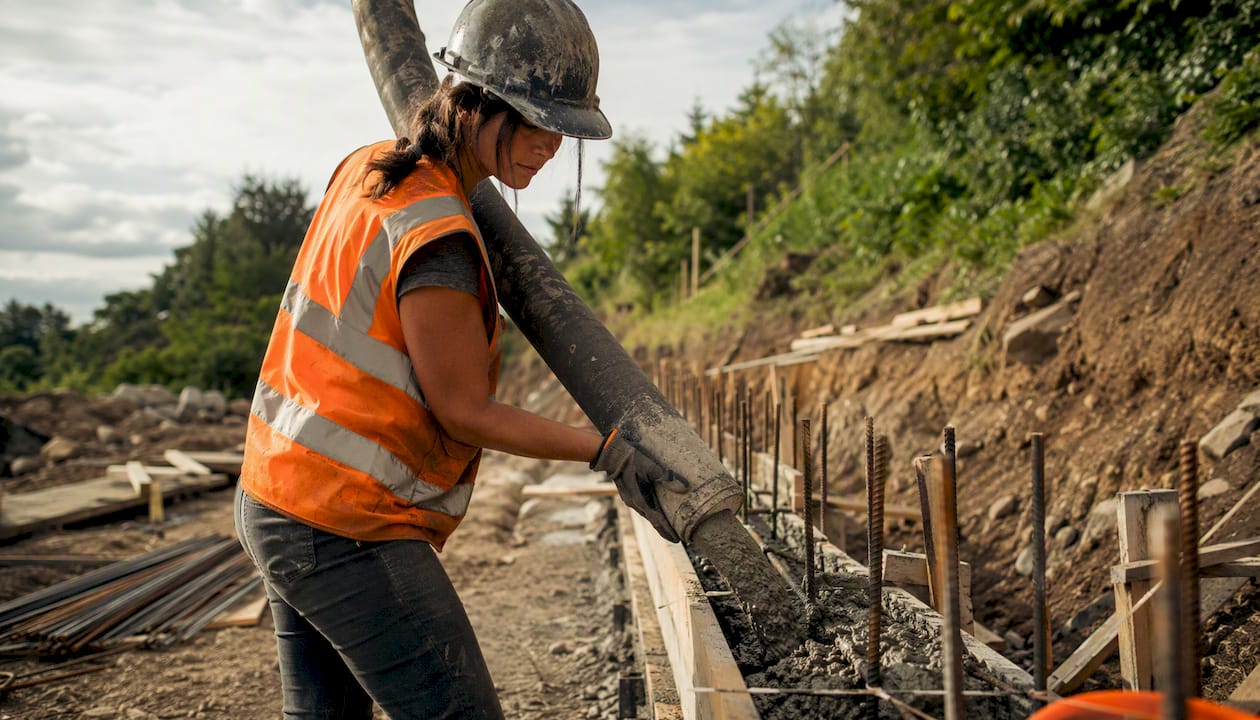

Poured concrete/structural walls require real footings, not just a gravel pad. Footing thickness commonly runs a range sufficient for structural requirements in practice, and the bottom of the footing must sit below the frost line or on competent undisturbed soil. Engineering guidance sets a standard minimum of 500 mm (about 20 inches) below the lowest finished grade for cantilever walls, with that figure increasing as retained height grows.

Stacked stone walls under 2 feet can sit on a shallow compacted gravel bed, but anything taller needs the same embedment logic as segmental block. The irregular face means you need to be more careful about the base being level and well-compacted.

Timber walls require treated posts or a treated timber foundation. Rot and bearing are the two failure points. Posts should be set in compacted gravel, not concrete alone, to allow drainage. Taller timber walls need deeper post embedment, often one-third of the total post length below grade.

Gabion walls need a wider, deeper base than most homeowners expect. The wire baskets are heavy when filled, and the base must distribute that load over a larger footprint. Plan for a base width at least equal to the wall height and a compacted aggregate depth of 8–12 inches minimum.

How does frost depth control how deep your footings go?

If you live anywhere that sees hard freezes, frost depth is the single most important number for your retaining wall footing requirements. When water in the soil freezes, it expands and pushes upward. A footing that sits above the frost line will heave seasonally, and even small movements crack mortar joints, tilt block courses, and eventually topple a wall.

The rule is straightforward: the bottom of your footing must sit at or below the local frost depth. For structural poured walls, that is non-negotiable. For segmental block walls, the aggregate base provides some flexibility, but in areas with deep frost lines you still need to excavate deep enough that the base pad itself is not in the freeze-thaw zone.

How to find your local frost depth:

• Your state DOT (Department of Transportation) publishes frost penetration maps for highway design; these are publicly available and accurate.
• The county extension office or local university cooperative extension often has soil and climate data including frost depth.
• Your local building department will give you the adopted code frost depth for permit purposes, which is the number that legally governs your project.
• NOAA’s climate data and published frost-depth maps are also useful cross-references.

Frost depths across the U.S. range from zero in southern Florida and coastal California to over 60 inches in northern Minnesota and Maine. A homeowner in Nashville might need 12 inches; one in Minneapolis needs 42 inches or more.

Pro Tip: Always use the larger of two values: your local frost depth or the manufacturer’s minimum embedment recommendation. If your frost line is 24 inches and the manufacturer says 6 inches, you dig to 24 inches. Never let the smaller number win.

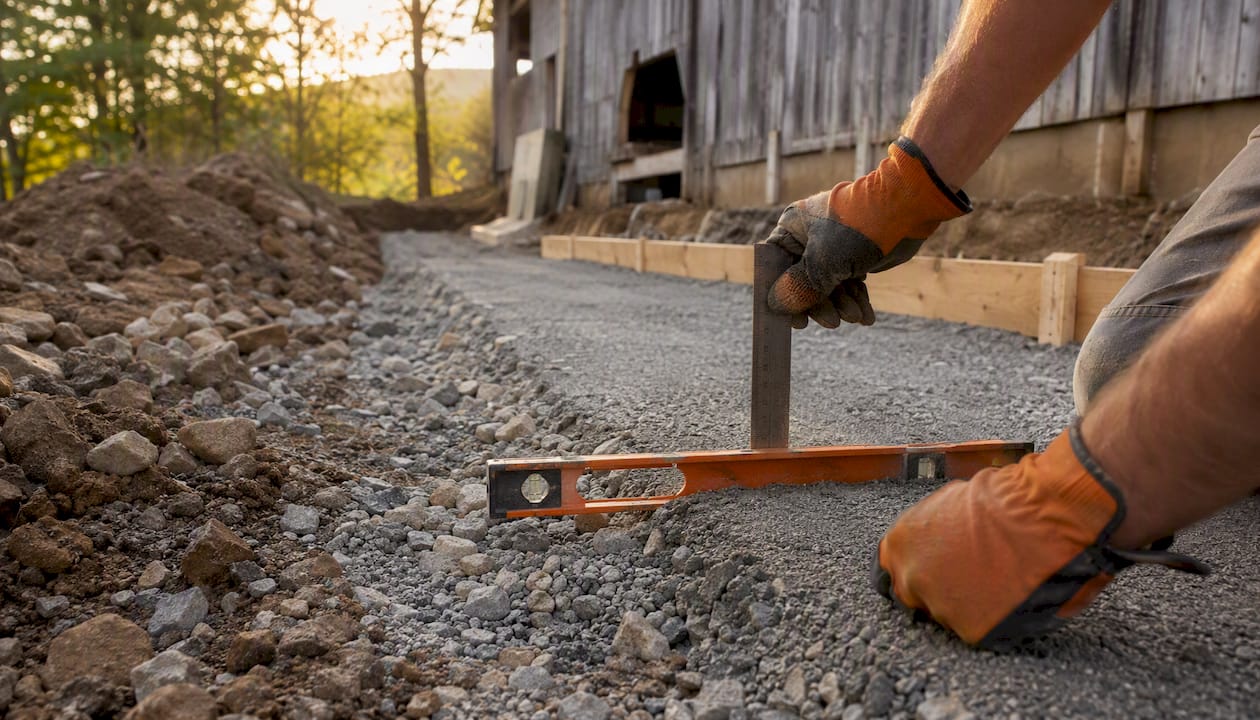

How wide should your footing base be?

Depth gets most of the attention, but base width controls whether a wall tips forward or slides. The retaining wall base specifications for width follow a simple rule of thumb: for most gravity walls, the base width should be roughly one-third to one-half of the total wall height.

A 4-foot wall, for example, needs a base width roughly one-third to one-half of the total wall height. That proportion resists overturning by keeping the wall’s center of gravity well inside the base. Narrow the base below that range and the wall becomes vulnerable to rotating forward under soil pressure.

Many DIYers confuse the width rule with the depth rule. They are separate. The 1/3 rule governs how wide you excavate and build the base. The frost line and embedment rules govern how deep you go. Both must be satisfied independently.

When to widen the base beyond the 1/3 rule:

• Soil is soft, loose, or saturated: weak bearing capacity means the load must spread over a larger area.
• A surcharge sits directly behind the wall (parked car, deck, retaining structure above): additional lateral pressure requires more base width and often a wider footing.
• The toe slope is steep: if the ground drops away in front of the wall, the effective bearing area shrinks and you need more width to compensate.
• The wall exceeds 4 feet: at this height, simple gravity rules of thumb break down and an engineer should calculate the required base geometry.

A quick field check for bearing capacity: push a 1/2-inch rebar by hand into the exposed trench bottom. If it sinks more than a few inches under hand pressure, the soil is too soft for standard footing assumptions. That is the moment to call a geotechnical engineer or over-excavate and replace with compacted structural fill.

What materials and construction details make footings actually work?

Getting the retaining wall footing requirements right on paper means nothing if the materials and compaction are wrong. Drainage and base material quality can matter as much as raw excavation depth.

The short version: a well-drained, properly compacted aggregate pad prevents most of the failures that plague DIY retaining walls. Water is the enemy. Hydrostatic pressure behind a wall with no drainage can multiply the lateral force on the structure several times over.

Material and construction minimums:

• Aggregate: Use angular crushed stone, not rounded pebbles or sand. Angular aggregate interlocks under compaction; rounded stone shifts. A 3/4-inch clean crushed stone or ASTM No. 57 stone works well for both the leveling pad and the drainage zone.
• Compaction: Compact the leveling pad in lifts. A target of 95% Standard Proctor density is the engineering benchmark for structural fills; for DIY work, a rental plate compactor run over each 4-inch lift is the practical equivalent.
• Geotextile: Place a non-woven geotextile between the native soil and the drainage aggregate to prevent fines migration. Without it, soil particles gradually fill the aggregate voids and drainage fails.
• Drain pipe: Install a 4-inch perforated drain pipe at the base of the wall, wrapped in geotextile sock, sloped at least 1% toward a daylight outlet. The pipe should sit in a gravel envelope, not in native soil.
• Concrete leveling pads: For segmental block systems, a compacted aggregate pad is standard. A thin concrete leveling pad (2–3 inches) is acceptable as an alternative when the trench bottom is uneven, but it must still be set at the correct depth.

Shear keys are worth knowing about for granular soils. A shear key is a notch or projection cast into or compacted under the footing that resists the wall sliding forward. Typical shear key depth runs 200–400 mm (8–16 inches) and is most useful on sandy or gravelly soils where sliding resistance is otherwise low. For small segmental walls, a well-compacted base and adequate embedment usually handles sliding without a formal key.

Pro Tip: Never use sand as a leveling material under segmental block. It looks smooth and easy to work with, but it pumps out under load and allows the base course to shift. Angular crushed stone only.

When do you need a permit or a structural engineer?

The answer-first version: if your wall is over roughly 4 feet tall, supports any surcharge load, sits near a structure or property line, or is going into questionable soil, you need an engineer and almost certainly a permit. This is not a gray area.

Scottsdale’s IBC 2021 interpretation requires footings to bear a minimum of 18 inches below undisturbed soil and mandates design calculations when the heel exceeds 4 feet. Cincinnati’s building department specifies that the bottom of footings must sit at least 2 feet 6 inches below finished grade on the low side, and waives permits only for walls where the grade difference is 48 inches or less and the wall is at least 5 feet from any adjoining building or lot line. Your municipality may be more or less restrictive, which is exactly why you call before you dig.

Checklist: what to bring to the permit office or engineer:

• Site elevations (existing grade on both sides of the wall)
• Total wall length and retained height
• Distance from the wall to any structures, property lines, or utilities
• Anticipated surcharge loads (driveway, deck, slope above)
• Soil description (visual: clay, sand, rock, fill)
• Any drainage constraints or existing drainage features

Some jurisdictions specify minimum footing depths that override manufacturer rules of thumb entirely. A local code minimum footing depth means you excavate to that depth regardless of what the block manufacturer’s chart says. Check local code first, then layer manufacturer guidance on top.

For walls that exceed DIY thresholds, a structural or geotechnical engineer will size the footing based on actual soil bearing capacity, retained height, and surcharge, not a rule of thumb.

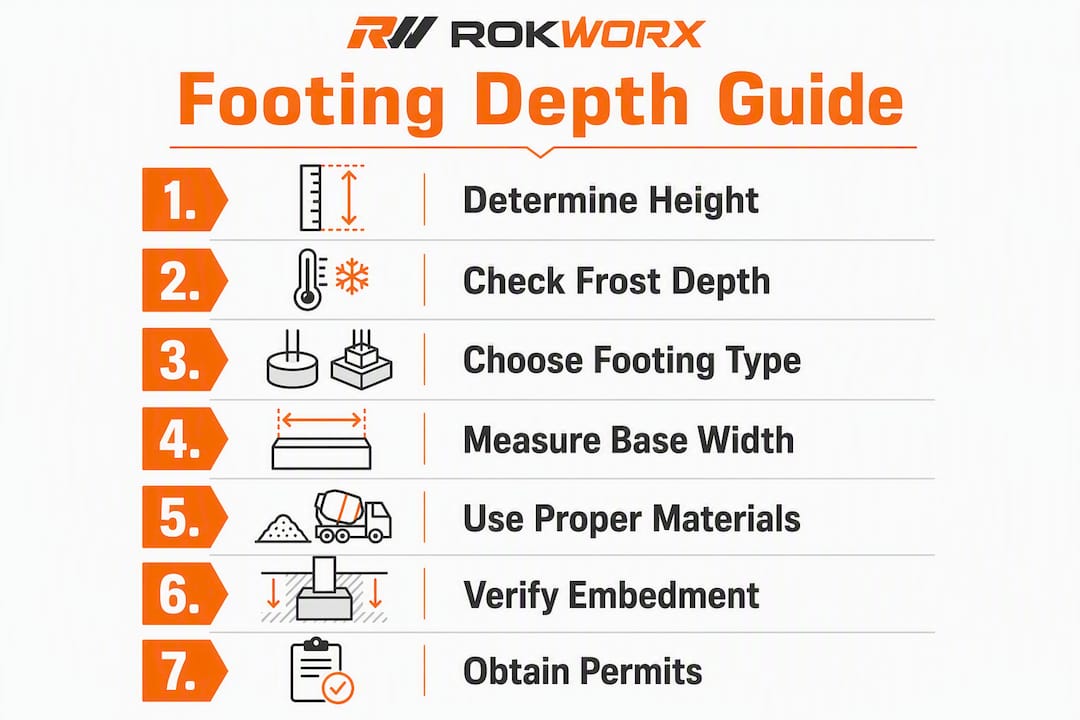

Step-by-step installation checklist with example measurements

Use this sequence to translate the depth rules into an actual excavation. The table below gives example dimensions for two common backyard walls.

Installation sequence:

1. Mark the wall alignment and call 811 (Dig Safe) to locate utilities before any excavation.
2. Confirm permit requirements and frost depth with the local building department.
3. Excavate to the required depth: the larger of local frost depth, code minimum, or manufacturer embedment plus base pad thickness.
4. Check the trench bottom for competent soil. If you hit soft clay or loose fill, over-excavate and replace with compacted structural fill in 4-inch lifts.
5. Install the leveling pad: 6 inches of compacted angular crushed stone, plate-compacted in two lifts.
6. Set the base course of block or formwork, verifying level in both directions.
7. Install the perforated drain pipe at the base of the wall, sloped to daylight, wrapped in geotextile.
8. Backfill with clean granular material (3/4-inch crushed stone) in 8-inch lifts, compacting each lift before placing the next course.
9. Continue wall construction, stepping back each course per manufacturer specification.
10. Finish with topsoil and surface grading that directs water away from the wall.

Pro Tip: Rent a plate compactor for the base pad and backfill lifts. Hand tamping is not adequate for structural fills. If you are unsure whether compaction is sufficient, a rental nuclear density gauge or a simple hand-probe test at the trench bottom will tell you quickly.

Common DIY mistakes and how to avoid them

Most retaining wall failures trace back to a short list of avoidable errors, not exotic engineering problems.

The most frequent mistake is undersized embedment. Homeowners set the base course at or near finished grade, leaving almost no buried block. The wall looks fine for a season, then frost or soil pressure tips it forward. Allan Block’s guidance is explicit: 6 inches minimum buried block, and more when a toe slope exists. When the ground drops away in front of the wall, embedment must increase enough to create roughly a 4-foot horizontal bench from the toe to daylight. That bench prevents undermining and scour from eroding the base.

The second most common failure is poor drainage. Builders skip the drain pipe, use the wrong backfill, or omit the geotextile. Water builds up behind the wall, hydrostatic pressure spikes, and the wall blows out. Proper drainage behind a retaining wall is not optional.

Other recurring problems:

• Using rounded pebbles or sand in the leveling pad instead of angular crushed stone.
• Failing to reach competent soil: if the trench bottom is soft fill, standard embedment rules do not apply. Over-excavate to native soil or replace with compacted structural fill.
• Ignoring toe slopes: a sloped toe reduces effective embedment and accelerates erosion.
• Skipping compaction between backfill lifts, which allows settlement and lateral movement over time.

Pro Tip: Before you set a single block, probe the trench bottom with a piece of rebar. If it sinks more than 2–3 inches under hand pressure, you are not on competent soil. Stop, over-excavate, and bring in structural fill. Setting a wall on soft ground is the single fastest path to a failed wall.

Key Takeaways

Retaining wall footings must reach competent soil, meet local frost depth, and satisfy both manufacturer embedment minimums and municipal code requirements before any other design consideration applies.

The part most guides skip

Most retaining wall articles spend their word count on block types and decorative finishes. The footings section gets a paragraph and a diagram. That is backwards.

From a practical standpoint, the footing is the only part of the wall that cannot be fixed after the fact without tearing everything out. A cracked cap block is cosmetic. A footing that sits 4 inches above the frost line, or on soft fill that was never compacted, is a structural time bomb. The wall will move. The only question is when.

The other thing worth saying plainly: the 4-foot rule for permits and engineering is a floor, not a ceiling. A 3-foot wall on a steep slope, near a property line, or behind a driveway can be more demanding than a 5-foot wall in flat, well-drained soil. Height is a proxy for complexity, not a substitute for judgment. If anything about your site feels unusual, whether that is soft soil, a tight setback, or a surcharge you did not plan for, treat it as a trigger for professional input regardless of wall height.

The homeowners who call Rokworx after a failure almost always describe the same sequence: they skipped the drainage, set the base too shallow, and assumed the wall would be fine because it looked solid on day one. It usually holds for one or two winters. Then a wet spring or a hard freeze does the work that gravity was waiting to finish.

Rokworx handles the hard part

When a retaining wall project moves past the DIY comfort zone, whether that means deep footings, difficult access, or a wall that needs engineered design, Rokworx provides the excavation, rock supply, and installation to get it done right the first time.

Rokworx’s earthmoving and excavation services handle the trench work that most homeowners underestimate: reaching competent soil, compacting in lifts, and setting a base that will not shift after the first winter. For the wall itself, Rokworx supplies and installs rock retaining walls built to the embedment and drainage standards covered in this guide. If your project involves a wall over 4 feet, a surcharge load, or soil you are not confident about, get a quote from Rokworx before you start digging.

Useful sources and further reading

These sources back the figures and guidance in this article. Use them to verify frost depth, manufacturer embedment specs, and local permit requirements for your specific site.

• Allan Block: Proper Embedment Guidelines — Manufacturer guidance on minimum buried block, leveling pad specs, and toe-slope embedment rules for segmental retaining walls.
• Keystone Construction Manual — Full design and construction manual covering Height/8 embedment rules, leveling pad width, and compaction requirements.
• Concretemetric: Footing Design for Retaining Walls — Engineering reference with footing depth tables scaled to retained height and standard minimum depth guidance for cantilever walls.
• SlabCalc: Concrete Retaining Wall Guide — Practical overview of concrete wall footing depth requirements and why 4-inch footers are inadequate for structural applications.
• Cincinnati Department of Buildings and Inspections: Retaining Wall Handout — Municipal guidance on permit thresholds and minimum footing depth (2 ft 6 in below finished grade) for residential retaining walls.
• Scottsdale IBC 2021 Retaining Wall Policy — Example of municipal minimum bearing depth (18 in below undisturbed soil) and calculation requirements when the heel exceeds 4 feet.
• Milpitas Residential Retaining Wall Standard — Standard detail drawings showing footing widths, key depths, and reinforcement schedules for 3 ft through 6 ft walls.
