Retaining Wall Geogrid: What Homeowners & Contractors Need

If your wall is at or above 4 feet, sitting under a driveway, holding back a slope, or built on clay, you almost certainly need geogrid. Below that height, with clean granular backfill and no surcharge load, a gravity wall built on rock or block alone often holds fine. Geogrid works by tying the soil mass behind the wall to the wall face, turning loose backfill into a reinforced block that resists sliding and bulging.

Three factors decide it every time:

• Wall height — most codes and manufacturer guides flag 3 to 4 feet as the point where reinforcement moves from optional to expected.
• Load and soil type — driveways, parked cars, sloped backfill, or soft clay and silt all raise the demand on the wall well beyond what a gravity structure can handle.
• Long-term stability — if the wall needs to stand for decades without creeping outward, geogrid buys you a wide margin of safety that unreinforced block simply can’t match.

None of that replaces drainage. A geogrid-reinforced wall built on soggy, poorly drained backfill will still fail, just more slowly and expensively than one that skipped reinforcement altogether.

Key Takeaways

A geogrid-reinforced retaining wall performs only as well as its embedment length, drainage system, and compaction let it, not just its tensile rating.

Table of Contents

• What Retaining Wall Geogrid Actually Does (and How It Differs From Geotextile)
• Types of Retaining Wall Geogrid and What the Strength Numbers Mean
• When Does a Retaining Wall Actually Need Geogrid?
• Design Basics: Embedment, Spacing, Overlap, and Standards
• How to Lay Geogrid for a Retaining Wall: Step by Step
• Drainage and Backfill: Why Geogrid Alone Won’t Save a Wall
• Common Mistakes and Real Limitations of Geogrid
• Sourcing Retaining Wall Reinforcement Grid: What to Look For
• Should You Hire a Pro or Handle This Yourself?
• What Actually Causes Retaining Wall Failures
• An Installer’s Note on What Actually Gets Missed
• Get Rock Retaining Walls Built and Reinforced Properly, Start to Finish
• Standards, Datasheets, and Guides Worth Checking
• Sources

What Retaining Wall Geogrid Actually Does (and How It Differs From Geotextile)

Geogrid is a stiff, grid-patterned plastic mesh that reinforces soil in tension. Think of it as rebar for dirt: it locks into the backfill through its apertures and stops the soil mass from sliding toward the wall face under its own weight and any load stacked on top. Geotextile is a different animal. It’s a woven or non-woven fabric that filters and separates, keeping fine soil particles out of drainage rock and stopping backfill layers from mixing where they shouldn’t.

The two aren’t interchangeable, and this is where a lot of wall problems start. Geotextiles act as filters or separators, while geogrids provide the structural tensile reinforcement that actually holds a reinforced-soil wall together, and industry comparisons treat the two as complementary rather than as substitutes. A geogrid can’t strain out silt from your drainage aggregate any better than a geotextile can hold back a sliding soil mass.

Pro Tip: The most common substitution mistake is installers laying geotextile fabric where a structural design calls for geogrid, usually because both come on rolls and look similar at a glance. The fabric has no meaningful tensile strength, so the wall loses its reinforcement while the installer thinks the job is done correctly.

Using geogrid where geotextile was needed causes clogged drains and hydrostatic buildup behind the wall. Getting it backward the other way, using geotextile where reinforcement was specified, is the one that leads to outright structural failure, because the wall never had the tensile strength it was designed around.

Types of Retaining Wall Geogrid and What the Strength Numbers Mean

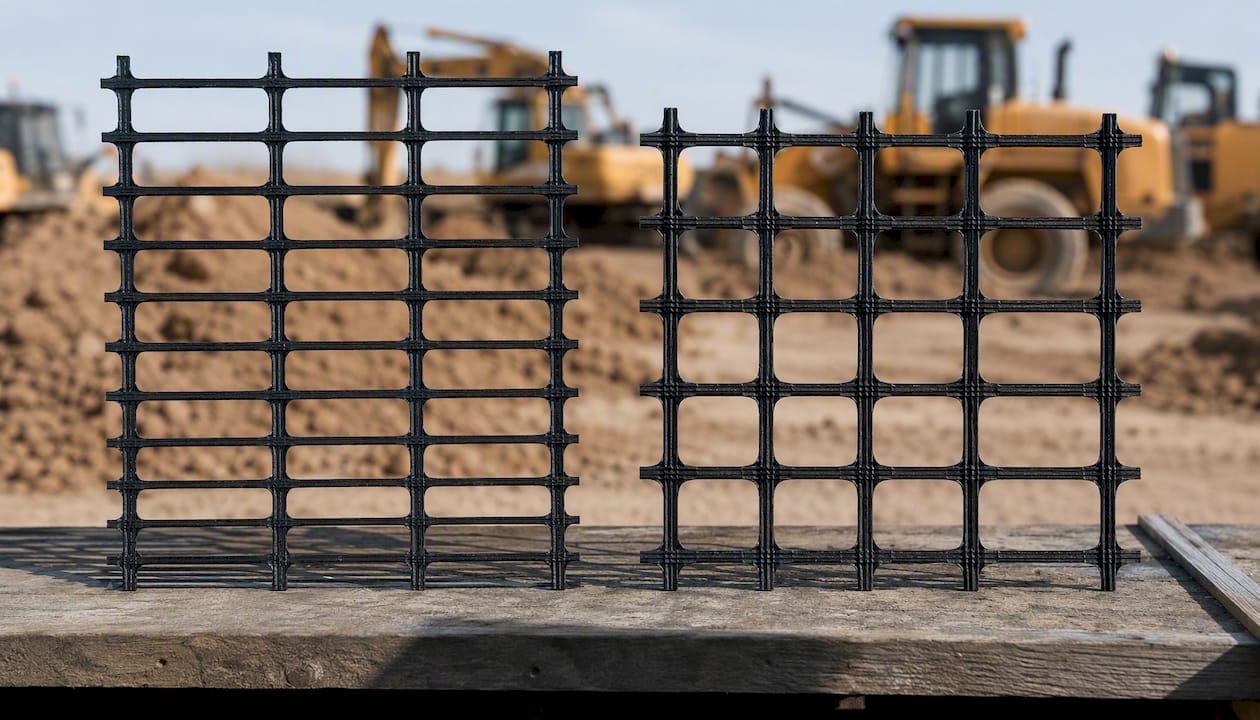

Geogrid comes in two structural styles. Uniaxial geogrid has its strength oriented in one direction, and it’s the standard choice for retaining walls because the load on a wall runs almost entirely perpendicular to the wall face. Biaxial geogrid distributes strength in both directions and works well for base stabilization under roads, slabs, and low walls where load comes from multiple angles rather than one dominant direction.

Material matters as much as the grid pattern. HDPE (high-density polyethylene) dominates uniaxial products because it holds up well under sustained load and resists most soil chemicals over a multi-decade design life. PET (polyester) shows up in high-strength woven grids and resists creep under long-term load slightly better than HDPE in some product lines. PP (polypropylene) is common in lighter biaxial grids and costs less, but it’s more sensitive to UV exposure if left uncovered during construction and to certain soil chemistries over time.

The numbers that matter on a datasheet are tensile strength and LTADS (long-term allowable design strength), which accounts for creep, installation damage, and chemical degradation over the design life:

These ranges reflect common industry specification practice, not a guarantee for any specific product. Always confirm the actual LTADS from the manufacturer’s datasheet before finalizing a design; a “200 kN/m” grid on paper can perform very differently once creep and installation-damage factors are applied.

• Uniaxial HDPE or PET: the default for reinforced segmental block and rock-faced retaining walls.
• Biaxial PP: better suited to driveway subgrades, gravel paths, and short garden walls under about 3 feet.
• Woven PET high-strength grids: reserved for tall walls, steep reinforced slopes, or sites with major surcharge loads.

When Does a Retaining Wall Actually Need Geogrid?

Height is the number everyone asks about first, but it’s not the only trigger, and treating it as the only one is how walls get under-designed. A 3-foot wall on soft clay with a sloped surcharge above it can need more reinforcement than a 5-foot wall on clean, well-drained gravel with a flat yard behind it.

• Height thresholds: most segmental block manufacturers and general guidance flag geogrid as necessary once a wall approaches or exceeds 3 to 4 feet, and it becomes close to mandatory well before that if any of the factors below are also present.
• Surcharge loads: driveways, parking areas, sheds, pool decks, or anything with vehicle or structural weight sitting within the influence zone behind the wall dramatically increases the lateral force the wall has to resist.
• Slopes above the wall: backfill that slopes upward rather than sitting flat adds extra weight and pushes the active soil wedge further out, which raises the reinforcement demand even on a modest-height wall.
• Soil conditions: clays, silts, and organic soils hold water, lose strength when saturated, and generally perform worse than clean granular fill, all of which push a design toward reinforcement.
• Poor drainage or freeze-thaw exposure: sites that can’t shed water quickly, or that see repeated freeze-thaw cycles, put more stress on the soil-wall interface over time, which is exactly what geogrid is meant to manage.

If two or more of those apply to your site, treat geogrid as the baseline assumption, not an upgrade. If you’re stacking driveway loads and clay soil on a wall about 4 feet high, this is well past the point where a rough guess is good enough. A driveway retaining wall in particular deserves a proper look at surcharge design before anyone starts digging.

Design Basics: Embedment, Spacing, Overlap, and Standards

Four numbers govern whether a geogrid-reinforced wall performs the way it’s supposed to: embedment length, vertical spacing, layer count, and overlap. Get any one of these wrong and the reinforcement effectively isn’t there, even if the grid itself is rated correctly.

Embedment length is how far the geogrid extends back into the retained soil from the wall face. A commonly referenced starting point is roughly 0.7 times the wall height (0.7H), though the real number depends on soil strength, surcharge, and the specific engineering analysis for the site. A 6-foot wall using that rule of thumb needs geogrid layers reaching over 4 feet back into the backfill, which is a bigger footprint than most homeowners expect when they’re planning a retaining wall near a boundary or a driveway.

Vertical spacing and layer count scale with wall height. Taller walls need more layers spaced closer together near the base, where lateral pressure is highest, and can space out somewhat higher up the wall. There’s no single number that fits every project because spacing depends on the grid’s LTADS, the soil’s friction angle, and the surcharge condition, which is exactly why taller walls need a designer running the numbers rather than a rule of thumb copied from a neighbor’s wall.

Overlap and connection rules vary by product. Guidance in the 12 to 24 inch range for uniaxial grid overlaps at splices is common in industry installation guides, though some manufacturer systems specify butt-joining layers rather than overlapping them, so the product datasheet always overrides a general rule.

Australia’s relevant benchmark is AS 4678, the standard governing earth-retaining structures, alongside ASTM test methods that manufacturers use to establish tensile strength and creep ratings on their datasheets. Once a wall crosses roughly the 1 meter mark, or carries any meaningful surcharge, get a geotechnical or structural engineer to stamp the design. That signature isn’t paperwork; it’s confirmation someone actually ran the soil, load, and grid numbers together instead of eyeballing it.

How to Lay Geogrid for a Retaining Wall: Step by Step

Getting geogrid into the ground correctly is less about physical difficulty and more about discipline: keeping orientation right, keeping tension right, and not rushing the compaction. Here’s the sequence that holds up.

1. Prepare the subgrade. Excavate to design depth, compact the base, and level it so the first course of block or rock sits flat and true.
2. Place the first course. Lay your base units or rock, check level in both directions, and confirm the wall face alignment before touching the grid.
3. Roll out the geogrid. Unroll it perpendicular to the wall face, with the strong axis running back into the hill, not parallel to the wall.
4. Position the front edge. Bring the grid close to the back of the block face, typically within an inch, following manufacturer installation guidance for the specific block system you’re using.

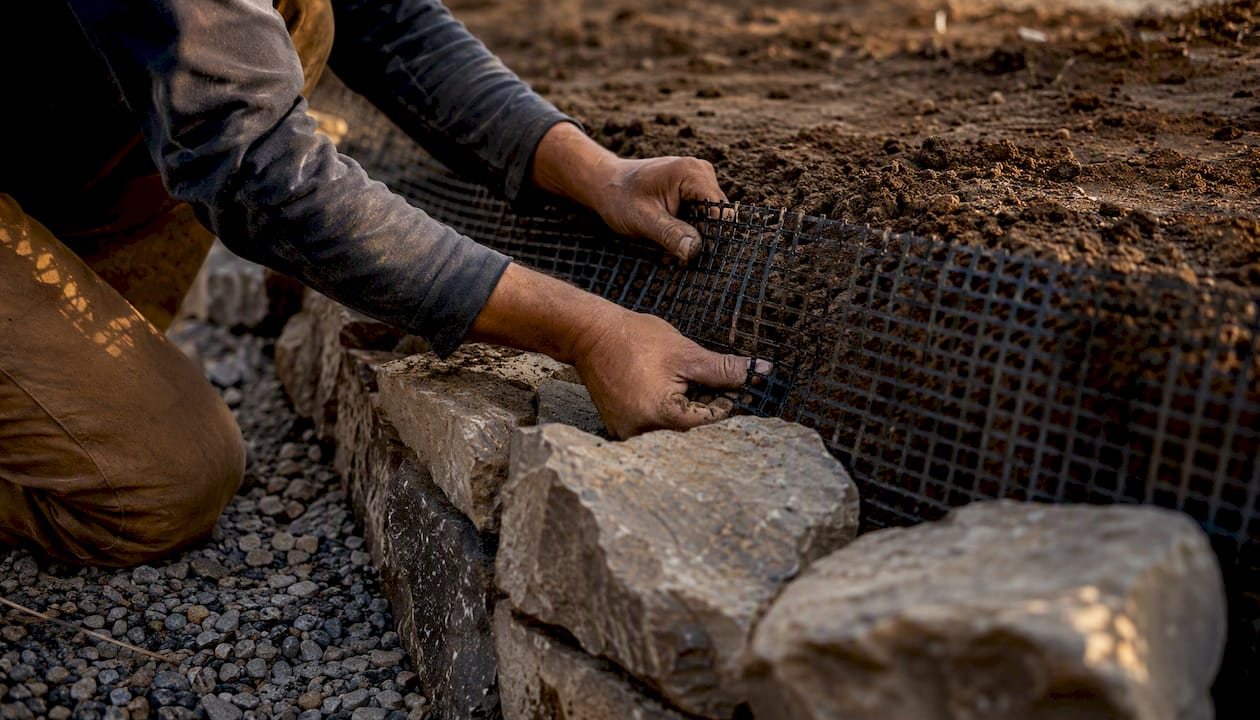

5. Pull out the slack. Stake or hand-tension the grid so it lies flat with no wrinkles or loose folds before backfill goes on top.
6. Backfill in lifts. Place backfill in layers of roughly 6 to 8 inches, not one deep dump, so compaction can actually reach the grid.
7. Compact each lift. Run a plate compactor over each lift, keeping the machine at least a few feet clear of the grid’s leading edge to avoid dragging or tearing it.
8. Repeat up the wall. Add the next course, roll the next grid layer at the specified spacing, and repeat the tensioning and backfill sequence.
9. Handle corners with care. Stagger the grid extensions and alternate sides on successive courses at corners and curves so reinforcement stays continuous through the geometry change.
10. Final inspection. Check every layer is at the right elevation, every overlap meets spec, and the finished backfill is compacted to the target density before capping the wall.

Keep a few tools close: a plate compactor, a rake for lift leveling, landscape staples or stakes for tensioning, and a straightedge for checking grid alignment. Wear gloves when handling grid edges, since the ribs can be sharp enough to cut skin on a careless pull.

Pro Tip: On corners, most installers try to overlap grid layers directly on top of each other. Don’t. Alternate which side gets the extra reach on each course, and keep a thin layer of soil between crossing grid layers so they don’t ride up against one another during compaction.

Pro Tip: A grid with visible wrinkles after backfilling almost never smooths out under compaction. If you see slack after the first lift goes down, pull the layer back out and re-tension it before adding more fill; burying a wrinkle just locks in a weak spot.

Drainage and Backfill: Why Geogrid Alone Won’t Save a Wall

A wall can have perfectly specified geogrid, correct embedment, and flawless overlaps, and still fail if water has nowhere to go. Geogrid resists soil sliding; it does nothing to stop hydrostatic pressure from building up behind the wall when water gets trapped in the backfill. That pressure pushes on the wall face directly, independent of whatever reinforcement sits in the soil above it, and it’s a load geogrid was never designed to handle on its own.

• Clean, free-draining aggregate behind the wall lets water move down and out instead of pooling against the wall face.
• A perforated drain pipe at the base carries that water away from the structure entirely.
• Geotextile fabric wraps the drainage rock to keep fine soil particles from migrating in and clogging the system over time, which is the complementary role geotextiles play alongside geogrid.
• Backfill compacted to the specified density lets the geogrid actually engage with the soil mass; loose, uncompacted fill slides past the grid instead of locking into it.

A wall with correctly specified, correctly installed geogrid but no working drainage will still fail. It just takes longer, and it usually fails after a heavy rain event when the owner has already forgotten the wall was ever a construction project. Hydrostatic pressure builds silently behind an undrained wall until the face bows, cracks, or lets go all at once.

If you’re planning the drainage side of a project, it’s worth reading through a full breakdown of drainage design before you finalize backfill specs, because the drainage plan and the geogrid layout need to be designed together, not bolted on afterward.

Common Mistakes and Real Limitations of Geogrid

Geogrid fails less often because the material itself is weak and more often because someone installed or specified it wrong. The pattern repeats across enough projects that it’s worth listing out plainly.

• Wrong orientation. Running the strong axis parallel to the wall face instead of perpendicular into the hill defeats the whole point of a uniaxial grid.
• Wrinkles and slack. Grid that isn’t tensioned before backfilling never engages properly, leaving a soft spot exactly where the reinforcement was supposed to work.
• Inadequate compaction. Dumping backfill in one thick layer instead of controlled lifts means the compactor never reaches the grid, so the soil never locks into the apertures.
• Wrong overlap practice. Overlapping when the product specifies butt-joins, or vice versa, breaks the continuity the design assumed.
• Wrong LTADS for the job. Specifying a biaxial 30 kN/m grid on a wall that needed a 150 kN/m uniaxial product is a paperwork error with a structural consequence.
• Wrong material for the environment. PP grid in a high-UV site with long exposure before backfilling, or a grid without adequate chemical resistance in acidic or saline soil, degrades faster than the design life assumes.
• Treating geogrid as a drainage fix. No amount of correctly installed reinforcement compensates for backfill that holds water instead of shedding it.

Pro Tip: When you’re reviewing a contractor’s quote or a product datasheet, check that the quoted LTADS, not just the raw tensile strength, matches the design calculation. A vendor citing “200 kN/m tensile strength” without mentioning the long-term design value after creep and installation-damage reductions is giving you a number that looks better than the wall will actually perform.

Retaining wall failures often trace back to exactly these errors rather than to bad geogrid, and a detailed look at failure signs is worth bookmarking if you’re inheriting an older wall on a property.

Sourcing Retaining Wall Reinforcement Grid: What to Look For

Product families vary enough that knowing what to ask for matters more than knowing brand names. When you’re comparing options, look up the datasheets for Geofabrics (AUNZ), Allan Block, and Tensar Australia, three names that show up regularly across civil and landscape supply channels and each publish LTADS values and installation guidance worth cross-checking against your design.

• Uniaxial PET or HDPE grids suit tall walls, driveway-loaded walls, and anywhere the design calls for high LTADS values over a multi-decade service life.
• Biaxial PP grids suit low walls, base stabilization under paths or light driveways, and jobs where the load isn’t strongly directional.
• High-strength woven PET grids suit steep reinforced slopes and walls with significant surcharge, where a standard uniaxial product doesn’t have enough capacity.

When you contact a supplier, ask for the LTADS value specifically, not just the ultimate tensile strength, along with roll size, UV resistance rating, and a current product datasheet you can hand to an engineer if the wall needs a stamped design. A supplier who can’t produce that paperwork on request is a red flag regardless of how the product looks on the shelf.

Rokworx supplies and installs rock retaining walls across Melbourne and can coordinate reinforcement work as part of a full build, pairing wall construction with the earthmoving and excavation side of the job so the grid, drainage, and backfill get planned together instead of separately.

Should You Hire a Pro or Handle This Yourself?

A low wall on flat ground with good drainage and no surcharge is genuinely reasonable DIY territory for someone comfortable with a compactor and a level. Add height, load, or bad soil, and the math changes fast.

DIY-reasonable conditions: wall height under roughly 3 feet, no vehicle or structural loading behind it, flat backfill rather than a slope, granular soil that drains well on its own, and a site with easy access for materials and equipment.

Hire-a-professional conditions: wall height approaching or exceeding 4 feet, any surcharge from a driveway or structure, sloped backfill above the wall, clay or silt soils, or a site with known drainage problems or history of movement nearby.

If you’re getting quotes, ask every contractor or engineer the same set of questions: What LTADS value did you use in the design, and does the datasheet match it? What’s the compaction spec for each lift, and how will it be verified on site? What drainage details are included, and where does the water actually go once it leaves the wall? What’s the intended design life, and does the geogrid material match the soil chemistry on this site?

A homeowner evaluating quotes can use that same list as a filter. A contractor who answers all four clearly and specifically is showing real design discipline; one who waves off the questions with “it’ll be fine” is telling you something too. Reviewing excavation basics beforehand also helps homeowners judge whether a quoted dig scope actually matches the wall height and reinforcement plan.

What Actually Causes Retaining Wall Failures

Most retaining wall failures aren’t a geogrid problem at all. They’re a specification mismatch or a drainage failure wearing a geogrid costume. The material rarely tears on its own; it’s asked to do a job it was never sized for, or it’s asked to work in soil that never drains.

Case one: specification mismatch on a tall wall. A wall pushing 6 feet gets built with a biaxial grid rated for base stabilization, not the high-LTADS uniaxial product the height and surcharge actually demanded. The wall stands for a season, sometimes two, before the backfill slowly bulges the face outward. The root cause here isn’t installation error; it’s a design decision made before anyone broke ground.

Case two: correct grid, wrong drainage. A different wall gets the right uniaxial HDPE grid, correct embedment, correct spacing, textbook installation. Nobody put in a drain pipe or free-draining aggregate. After a wet season, hydrostatic pressure builds behind the wall and the face cracks near the base, exactly where pressure concentrates. The grid did its job perfectly. The water never had anywhere else to go, so it pushed on the wall directly instead.

Both walls fail. Neither failure is really about the geogrid itself, which is the point contractors miss when they treat reinforcement as the only variable that matters.

Pro Tip: Photograph every layer of geogrid before backfilling, including a shot of the roll’s product label and datasheet reference. That documentation protects both the homeowner and the installer if a warranty question or dispute comes up years later, and it takes thirty seconds on a phone camera.

An Installer’s Note on What Actually Gets Missed

The single most overlooked step on real job sites isn’t a design calculation. It’s tensioning the grid before the first lift of backfill goes down. Crews get comfortable, roll the grid out, stake the corners loosely, and start dumping fill because the schedule is tight and the grid “looks fine.” It doesn’t look fine under the surface once compaction pushes fill into the loose folds instead of locking cleanly into the apertures.

On one wall reinforcement job, a crew rushing to beat rain skipped the re-tension check on a middle layer. The wall held for about a year before a visible bulge showed up at exactly that layer’s depth. When it got opened up, the grid underneath was still intact and undamaged. It just never engaged with the soil the way the design assumed, because nobody pulled the slack out before covering it. If there’s one thing worth telling every owner watching a crew work: ask to see the grid tensioned and staked before the backfill starts, not after.

Get Rock Retaining Walls Built and Reinforced Properly, Start to Finish

Getting geogrid specified and installed correctly is only part of building a wall that lasts. Rokworx supplies and builds rock retaining walls across Melbourne, handling excavation, drainage, backfill, and reinforcement coordination as one project instead of a string of separate trades trying to line up their work. That matters most on the jobs where a driveway surcharge, a slope, or clay soil pushes a design past what a DIY build can safely handle.

If you’re planning a wall over 3 to 4 feet, sitting under a driveway, or dealing with soil that’s already given you drainage headaches, get a quote through the Rock Walls Melbourne page and have the site assessed before you order materials. It’s the fastest way to find out whether your project needs a stamped engineering design or whether a well-built gravity wall will do the job just fine.

Standards, Datasheets, and Guides Worth Checking

For design-level detail beyond what any single article can cover, go straight to the standards and manufacturer documentation. AS 4678 governs earth-retaining structures and is the benchmark any Australian geogrid design should reference, alongside the ASTM test methods manufacturers use to rate tensile strength and creep behavior on their datasheets.

For installation-level detail, manufacturer guides like VERSA-Grid’s installation instructions and the SRW Products 10 Series geogrid page show real product specs, roll sizes, and step-by-step placement sequences worth comparing against whatever quote you’re reviewing. A broader installation walkthrough is also available through BPM Geosynthetics’ installation guide, which covers overlap and compaction tolerances in more depth than most product pages do.

Once a project crosses into engineered territory, a P.E.-stamped or Australian-equivalent chartered engineer’s design is the document to ask for, not a verbal assurance. That stamp means someone has run the site-specific soil, load, and grid numbers together and taken responsibility for the result.
