How to Build a Retaining Wall on a Slope That Lasts

Yes, you can build a stable retaining wall on a slope. The method that works for most residential yards is a stepped base with drained gravel backfill. Get those two things right and a gravity or segmental block wall will hold for decades. Get them wrong and even a well-built wall will lean, crack, or slide within a few seasons.

The single biggest threat to any sloped retaining wall is water. When rain saturates the soil behind a wall and has nowhere to go, it builds hydrostatic pressure that can push a wall over from behind. That is why drainage comes before everything else.

Pro Tip: Before you pick a material or draw a layout, walk the site after a heavy rain. Wet spots, seeps, or standing water tell you more about your drainage challenge than any soil test.

Three situations require a structural engineer or a building permit before you dig:

• Wall height over approximately 4 feet (many U.S. jurisdictions require engineering review at this threshold)
• Slopes steeper than roughly 2:1 (horizontal to vertical)
• Visible groundwater, springs, or heavy clay soils that hold water

Quick site checklist before you start:

1. Measure slope steepness (string and level method — covered in the planning section)
2. Estimate wall height at the tallest point
3. Look for surface water, seeps, or wet soil after rain
4. Check proximity to structures, property lines, and utilities
5. Contact your local building department to confirm permit requirements

Table of Contents

• Which retaining wall type works best on a slope?
• How do you plan and size a retaining wall on a slope?
• What drainage and base details actually prevent wall failure?
• Step-by-step: how to build a retaining wall on a slope
• When does a steep slope need terracing or geogrid?
• How do you inspect and maintain a retaining wall on a slope?
• What does a sloped retaining wall project cost?
• Key Takeaways
• What pros do differently on sloped retaining wall projects
• Rokworx builds rock retaining walls that hold on difficult slopes

Which retaining wall type works best on a slope?

The material you choose shapes everything: how deep you need to dig, how well the wall drains, how long it lasts, and whether a homeowner can realistically build it without a crew. Here is how the main options stack up on sloped sites.

Segmental concrete block is the most DIY-friendly choice for walls up to about 4 feet. Blocks are uniform, lightweight enough to handle solo, and designed with a built-in batter (backward lean) that adds stability. Drainage is straightforward because the hollow cores and open joints let water move. Allan Block, Versa-Lok, and similar systems come with manufacturer installation guides that spell out base depth, setback per course, and geogrid spacing. For most sloped backyard retaining wall projects, this is the default starting point.

Natural stone and rock walls are heavier, require more skill to set, and take longer to build. The payoff is longevity and aesthetics. A dry-stacked fieldstone or cut-stone wall built on a proper gravel base can outlast the house. Drainage happens naturally through the gaps. The catch: irregular shapes mean every stone is a judgment call, and a poorly set stone in the base course causes problems all the way up. Rokworx supplies and installs natural rock walls for homeowners who want the look without the guesswork.

Gabion baskets (wire cages filled with rock) drain exceptionally well and handle settlement without cracking. They work well on steep slopes where a rigid wall would need heavy engineering. The aesthetic is industrial, which suits some yards and not others.

Timber (railroad ties or pressure-treated 6×6 lumber) is cheap and easy to cut, but it has a lifespan problem. Even treated wood rots in contact with moist soil, typically within 15–20 years. Drainage is harder to manage because the solid face blocks water movement. For a temporary fix or a low garden wall under 2 feet, timber is fine. For anything structural on a steep slope, skip it.

Poured concrete is the strongest option and the least DIY-friendly. It requires formwork, rebar, and usually a permit regardless of height. On steep slopes with poor soils, it is often what an engineer specifies it. Budget and hire a contractor for this one.

Pro Tip: For slopes with loose or unstable soil, consider gabion baskets or a reinforced block system with geogrid rather than a simple gravity wall. Gravity walls rely entirely on their own weight, which is not always enough when the retained soil is soft.

On reinforced vs. gravity systems: a gravity wall holds back soil through sheer mass. A reinforced wall uses geogrid layers buried horizontally into the backfill to tie the wall face to the soil mass behind it. For walls over 3–4 feet on a slope, or any wall retaining poor soils, geogrid reinforcement is worth the extra material cost.

How do you plan and size a retaining wall on a slope?

Measuring slope and calculating wall height

Use a string line, a line level, and a tape measure. Drive a stake at the top of the slope and another at the bottom. Run a level string between them. The vertical distance from the string to the ground at the lower stake is your maximum wall height. That number determines your permit exposure, your material quantities, and whether you need an engineer.

Setback, batter, and the stepped base

Most segmental block systems specify a batter of roughly 1 inch of setback per course. A 4-foot wall should lean back about 4 inches from base to top. That lean is not cosmetic; it shifts the wall’s center of gravity toward the retained soil and adds resistance to overturning.

The stepped base is the key adaptation for sloped sites. Rather than following the grade with a sloped trench, you dig level trench sections starting at the lowest elevation and step up by one block height for each section. Every section stays level. This keeps the first course consistently buried and prevents the base from sliding downhill.

Permits and engineering thresholds

Many U.S. building departments require a structural engineer’s review for walls taller than approximately 4 feet. That threshold varies by jurisdiction, so check with your local building department before you design anything.

Pro Tip: Call your local building department before you buy materials. Ask specifically: “What is the permit threshold for a residential retaining wall, and do I need engineered plans?” A five-minute call can save you from tearing out finished work.

Permit checklist:

• Site plan showing wall location, dimensions, and distance from property lines and structures
• Wall height at the tallest point
• Material specifications (block type, gravel, drain pipe)
• Photos of existing slope conditions
• Engineer’s stamp if required

Soil and site evaluation

Clay soils hold water and expand when wet, which increases pressure on the wall. Sandy or granular soils drain freely and are much easier to work with. If you see heavy clay, plan for extra drainage capacity and consider whether a reinforced system is warranted. Visible springs or seeps are a red flag that may require a French drain system upslope before you build the wall at all.

What drainage and base details actually prevent wall failure?

Hydrostatic pressure is the leading cause of retaining wall failure on slopes. When saturated soil has no drainage path, water pressure builds behind the wall face and pushes it forward. The fix is a complete drainage assembly installed before the first block goes on.

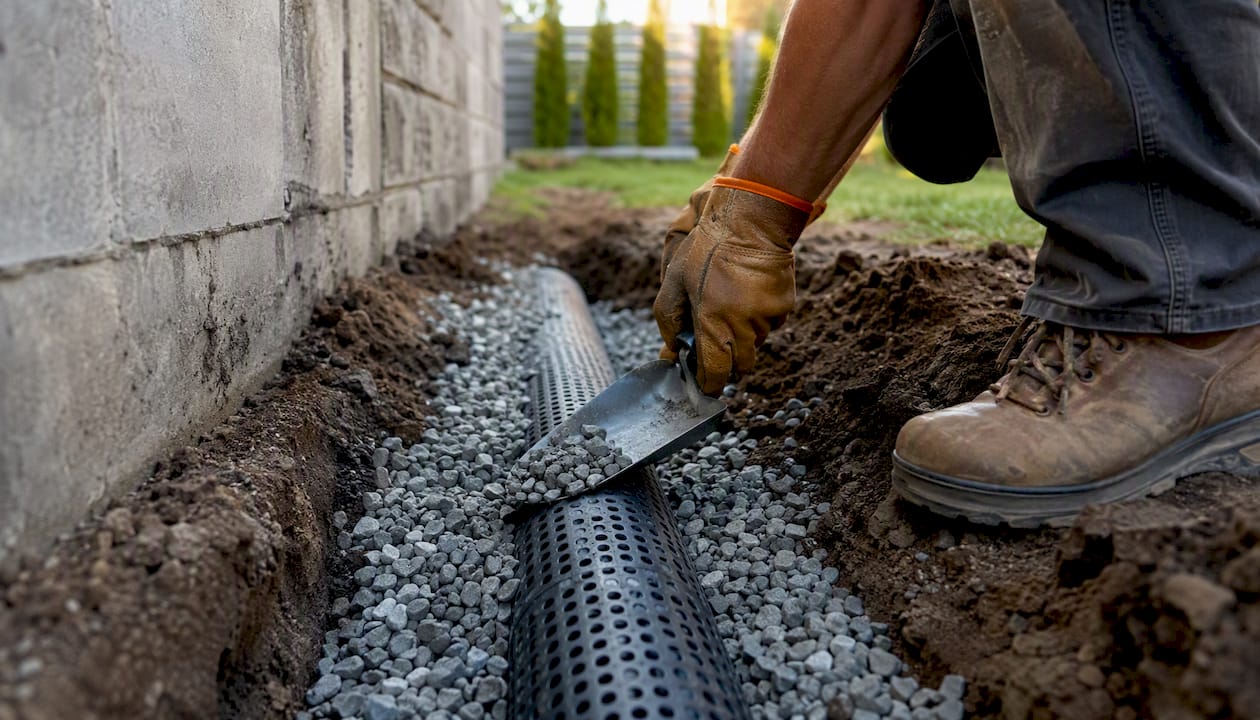

The drainage assembly

Install a 4-inch perforated pipe at the base of the wall on top of 2 inches of clean 3/4" crushed gravel, with the perforations facing down. Perforations face down because groundwater rises from below as the soil saturates. The pipe must slope at least 1 inch per 8 feet toward a daylight outlet — a point where water exits freely at a lower elevation. Wrap the entire gravel zone in non-woven geotextile fabric to prevent fine soil particles from migrating into the gravel and clogging the pipe over time.

Use 3/4" clean crushed gravel for backfill at least 12 inches deep directly behind the wall. Backfilling with native soil is one of the most common DIY mistakes; soil holds water, gravel drains it.

For more on retaining wall drainage assemblies and troubleshooting, Rokworx covers the full system in detail.

Base depth by wall height

For a typical 6-inch-tall block, dig 12 inches deep at the low end (6 inches of gravel base plus 6 inches of buried block). The trench gets deeper as you move uphill to keep the first course at a consistent buried depth.

Does a 2-foot wall need a footing? Not a poured concrete footing, no. A compacted gravel base 4–6 inches deep is sufficient for a low gravity wall. The gravel distributes load, drains water, and provides a level surface. Poured footings are typically reserved for poured concrete or mortared masonry walls.

Base compaction checklist:

• Compact road base in 3–4 inch lifts with a plate compactor
• Check level across each trench section before setting block
• Verify the first course is fully buried with no exposed face at grade
• Confirm the drain pipe slopes toward the outlet before backfilling

Step-by-step: how to build a retaining wall on a slope

Tools and materials

• Segmental retaining wall blocks (with manufacturer’s installation guide)
• 3/4" clean crushed gravel (base and backfill)
• Road base / compactable gravel (base layer)
• 4-inch perforated drain pipe
• Non-woven geotextile fabric
• Plate compactor or hand tamper
• String line, line level, stakes
• Rubber mallet, chisel, safety glasses
• Landscape adhesive (for cap course)
• Shovel, wheelbarrow, tape measure

Safety note: Never work alone in a trench deeper than 4 feet. Trench walls on sloped sites can slough without warning. Shore or slope trench walls per OSHA guidelines for any excavation over 5 feet.

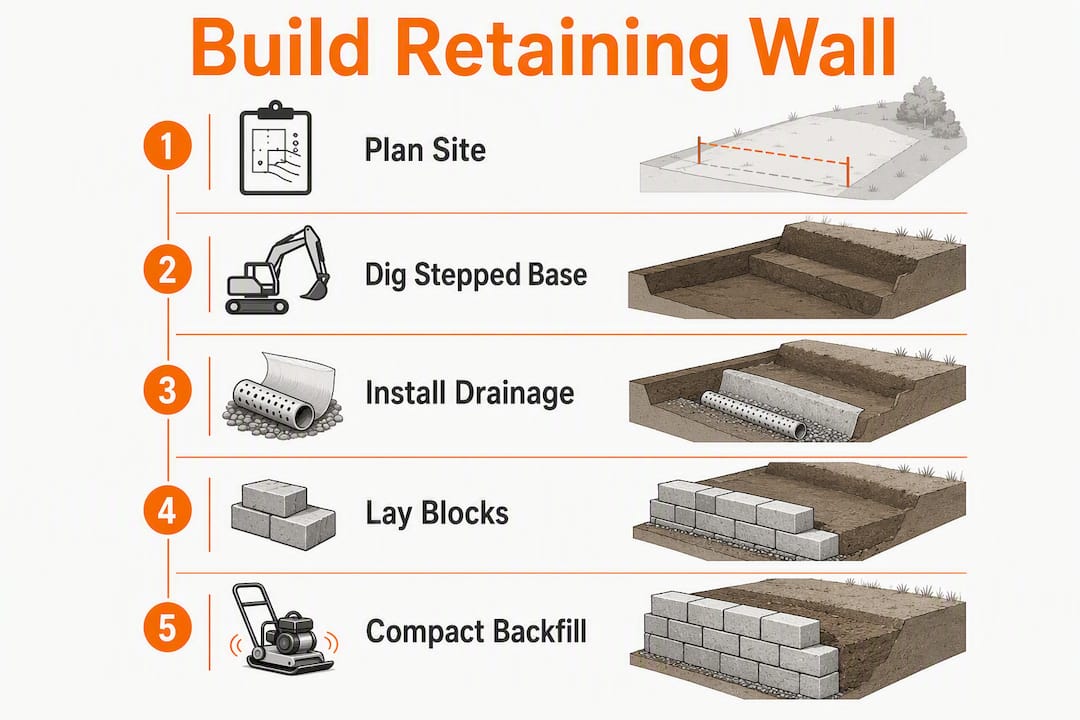

Build sequence

1. Mark the layout. Use stakes and string to mark the wall face. Start at the lowest point of the slope.
2. Dig level trench sections. Begin excavation at the lowest elevation and step up by one block height for each section. Each section must be level, not sloped.
3. Install and compact the gravel base. Add 6 inches of road base, compact in 3-inch lifts, and verify level across each section.
4. Set the first buried course. Every block in the base course must be fully below grade. Check level every 3–4 blocks with a 4-foot level. This course is the most important one you will set.
5. Install the drain pipe and drainage gravel. Lay the perforated pipe on 2 inches of 3/4" gravel with perforations facing down. Slope the pipe toward the outlet. Cover with geotextile, then add gravel backfill to at least 12 inches behind the wall face.
6. Stack courses with setback. Follow the manufacturer’s specified batter. Offset vertical joints by half a block length. Check level every 3–4 courses.
7. Backfill in lifts. Add gravel backfill in 6-inch lifts and compact each lift before adding the next course. Never dump and compact all at once.
8. Cap and finish. Apply landscape adhesive to the top course and set cap blocks. Route the drain outlet to daylight and protect it with a grate or splash pad.

Pro Tip: Compact backfill in 3–4 inch lifts, not 12-inch dumps. Loose backfill settles unevenly and pulls the wall backward over time. A plate compactor rented for a day is worth every dollar.

Quality checks at critical stages: first course fully buried and level; drain pipe sloped toward outlet; outlet confirmed clear before backfilling; each backfill lift compacted before the next course.

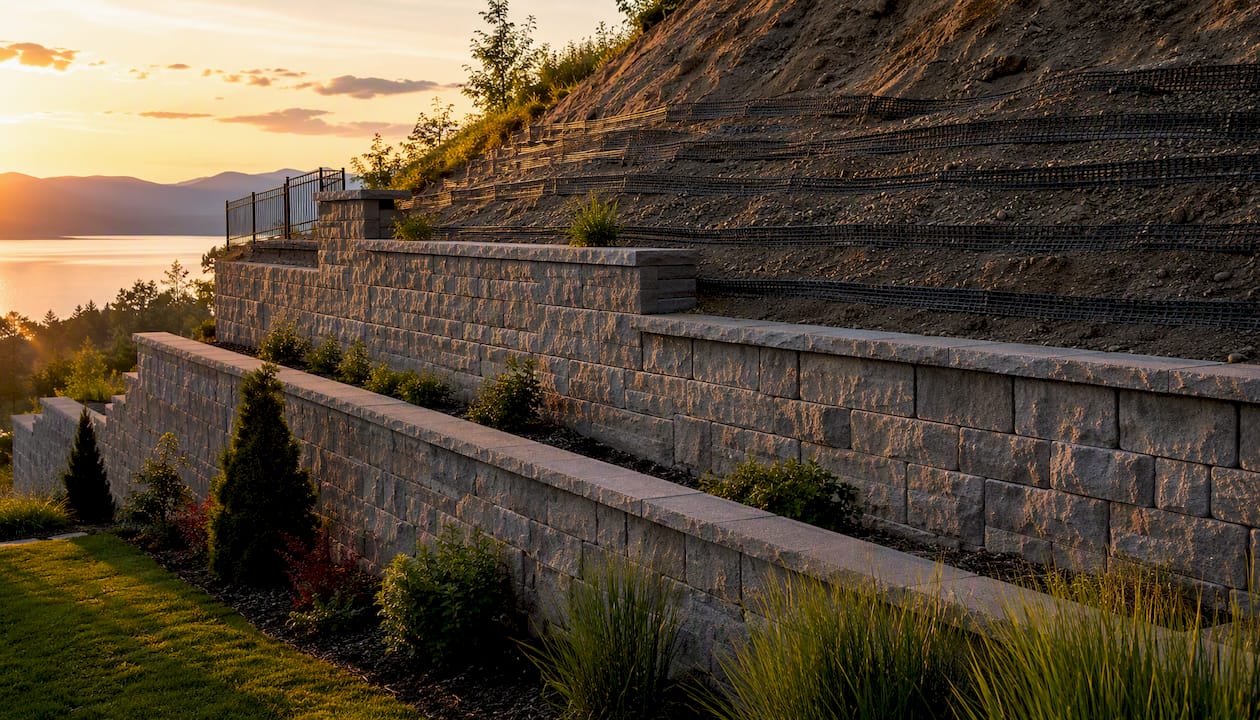

When does a steep slope need terracing or geogrid?

A single gravity wall has limits. Once retained height approaches 4 feet, lateral pressure increases significantly, and a simple block wall without reinforcement may not be enough, especially on a steep slope.

Terracing vs. a single tall wall

Tiered retaining walls separated by bench space reduce exposed height and can stay within local regulations limiting exposed wall height. Two 3-foot walls with a 6-foot bench between them are often cheaper, easier to permit, and lower maintenance than one 6-foot wall. The bench also gives you planting space, which helps with erosion control between the walls.

Professional landscapers recommend terracing to limit massive excavation and maintain natural drainage patterns, which lowers maintenance and material costs. Working with the land rather than against it is not just an aesthetic preference; it is a structural and financial one.

Terracing is often the smarter engineering choice on steep residential slopes. Multiple shorter walls reduce the load on any single structure, keep each wall within DIY-feasible height limits, and preserve the natural drainage paths that already exist in the hillside. Fighting the slope with one massive wall usually costs more, requires more excavation, and creates a single point of failure.

When geogrid is required

Geogrid reinforcement buries horizontal layers of high-strength mesh into the backfill, tying the wall face to the soil mass behind it. Use it when:

• Retained height exceeds 3–4 feet in a single wall
• Soils are soft, loose, or expansive clay
• Setbacks are tight and the wall cannot be battered adequately
• The manufacturer’s guide specifies it for your wall height

Pro Tip: For steep hillside projects over 6 feet of total elevation change, get an engineered plan. The cost of engineering is small compared to rebuilding a failed wall.

Rock anchoring and soil nails

For high elevation changes where terracing is not feasible, soil nails or rock anchors tie the wall back into stable ground behind the slope. This is contractor and engineer territory. Expect a full engineered design, specialized equipment, and a permit. The result is a wall that can handle conditions no gravity system could manage.

How do you inspect and maintain a retaining wall on a slope?

Most retaining walls do not fail suddenly. They give warning signs for months or years before a collapse. A twice-yearly inspection catches problems while they are still cheap to fix.

Inspection checklist

• Leaning or tilting of the wall face (more than 1–2 inches from plumb is a concern)
• Cracks in block faces or mortar joints
• Bulging sections, especially mid-wall
• Efflorescence (white mineral deposits) indicating water movement through the wall
• Wet spots or seepage at the wall face after dry weather
• Vegetation growing in joints (roots expand cracks)
• Settled or sunken cap blocks

Common failures and fixes

1. Wet face or seepage: The drain pipe is clogged or the outlet is blocked. Flush the pipe from the outlet end. If flushing does not clear it, the pipe may need to be replaced.
2. Leaning or sliding: The base course has moved. This usually means the gravel base was too thin or not compacted. Minor lean (under 1 inch) can sometimes be stabilized by excavating and resetting the base. Significant lean requires rebuilding.
3. Bulging mid-wall: Lateral pressure is exceeding the wall’s capacity. This is a structural issue. Stop using the area above the wall and call a structural engineer before attempting any repair.
4. Settled sections: Backfill has compressed. Add compacted gravel fill behind the settled area and reset the affected courses.

For a detailed retaining wall failure diagnosis, Rokworx covers the full range of failure signs and repair options.

When to call a professional

• Any wall showing bulging or significant lean
• Cracks that widen over time
• Water seeping through the wall face after dry periods
• A wall over 4 feet that was built without an engineer’s review
• Any wall near a structure, driveway, or property line that is showing movement

What does a sloped retaining wall project cost?

Cost ranges vary widely because wall height, material, and site access drive the numbers more than square footage alone.

Primary cost drivers

• Geogrid and reinforcement: — Adds material and labor cost for walls over 3–4 feet

Cost ranges often cited for basic retaining walls run roughly $20–$40 per square foot depending on size, material, and complexity. A DIY segmental block wall on the low end of that range is achievable if you handle your own excavation and labor. Natural stone or poured concrete at the high end typically requires a contractor.

Typical project timeline

1. Planning and permits: 1–3 weeks (longer if engineering review is required)
2. Excavation and base preparation: 1–3 days for a typical residential wall
3. Wall construction: 1–4 days depending on length and height
4. Backfill, drainage, and compaction: 1–2 days
5. Finish landscaping: 1–2 days

Tips to reduce cost without cutting corners

• Terrace instead of building one tall wall; shorter walls cost less per linear foot and may not require engineering
• Reuse on-site rock or gravel where it meets spec (clean, angular, well-draining)
• Phase the work: build the base and drainage first, add upper courses the following season
• Get three quotes for excavation; equipment mobilization costs vary significantly by contractor

Key Takeaways

A stable retaining wall on a slope requires a stepped base, buried first course, and a complete drainage assembly before any block is set.

What pros do differently on sloped retaining wall projects

The gap between a wall that lasts 30 years and one that fails in 5 usually comes down to three decisions made in the first hour on site: how deep the base goes, whether the drain pipe actually reaches daylight, and whether the contractor steps the base or tries to follow the slope.

Homeowners building their first wall tend to underestimate base depth. A block sitting on 2 inches of loose gravel looks fine until the first hard rain. The base needs to be compacted in lifts, checked for level across every stepped section, and deep enough that the first course is completely buried. Skipping that step is the single most common reason DIY walls slide forward within a year or two.

The drain outlet is the other thing that gets cut. Routing a pipe to daylight takes planning: you need a clear path downhill, a protected outlet, and a pipe slope that actually moves water. When contractors skip this and just bury the pipe in gravel with no outlet, the gravel eventually saturates and the drainage assembly stops working. The wall starts to lean, and the homeowner thinks the blocks were the problem.

On steep slopes, the instinct is to build one big wall and be done with it. Terracing takes more planning but almost always produces a better result: lower cost per wall, no engineering requirement on either wall, and a yard that is actually usable between the tiers. The bench space between two 3-foot walls is a planting bed, a path, or just breathing room for the slope.

If you are hiring a contractor for a wall over 4 feet, ask three questions: Are you licensed and insured? Can you provide references for walls of this height? Do you carry engineered plans for this project? A contractor who hesitates on any of those is not the right hire.

Rokworx builds rock retaining walls that hold on difficult slopes

When the slope is steep, the soil is poor, or the wall needs to handle serious lateral pressure, the material and the installation method matter more than anything else. Natural rock walls built on a properly compacted base with a complete drainage assembly are among the most durable solutions available for residential slopes, and they look far better than block 20 years in.

Rokworx supplies and installs rock retaining walls for homeowners and landscapers across Melbourne, handling everything from rock selection and delivery to excavation, drainage, and finished installation. For larger or more complex slopes, the team also provides full retaining wall excavation services, including stepped base preparation and drain outlet routing. If you are ready to stop guessing at the right approach and want a wall built to last, contact Rokworx for a quote on your project.
