Sandstone Retaining Wall: Design, Cost, and DIY Guide

A sandstone retaining wall is one of the best choices a homeowner can make when they want earth retention that looks genuinely good, holds up for decades, and doesn’t demand constant upkeep. The material suits low-to-medium height walls beautifully, and when drainage is handled correctly, a well-built sandstone wall can last 50 to 100 years or longer. The main limitations are weight (heavy equipment is often unavoidable), height (anything above roughly 3 feet starts requiring engineering input in most U.S. jurisdictions), and the fact that drainage is non-negotiable, not optional.

Three things to do right now:

• Walk the site, measure the wall’s approximate length and height, and take photos from multiple angles including the slope above.
• Estimate how much soil the wall needs to hold back — this drives both the structural design and the material quantity.
• Get two quotes: one for material supply only and one for supply plus installation. The gap between those numbers shows whether DIY is worth the effort.

The sections below cover costs in detail, a step-by-step DIY procedure for small walls, and a clear set of triggers for when to call a professional instead.

Table of Contents

• What types of sandstone retaining walls can you build?
• How much does a sandstone retaining wall cost?
• What design styles work best for sandstone retaining walls?
• How to build a low sandstone retaining wall yourself
• How do you maintain and repair a sandstone retaining wall?
• Where do you buy sandstone and what should you ask suppliers?
• Key Takeaways
• Why sandstone keeps earning its place in serious landscape projects
• Rokworx builds sandstone retaining walls that hold
• Useful sources and further reading

What types of sandstone retaining walls can you build?

Retaining walls hold back soil, control erosion, and create level surfaces on sloped ground. Sandstone does all of that while adding a warm, natural aesthetic that concrete block rarely matches. Before choosing a material or style, it helps to understand what the main construction types actually are and what each one demands from the builder.

Gravity walls rely on the sheer mass of stacked stone to resist soil pressure. Dry-stacked sandstone falls into this category. No mortar, no reinforcement — just weight and friction. They work well for walls under 3 feet and drain naturally because water moves through the joints. Mortared walls use a cement-based mortar between courses, which increases rigidity and allows slightly taller builds, but they require weep holes to prevent hydrostatic pressure from building up behind the face. Reinforced and cantilevered variants involve geogrid layers or concrete footings and are firmly in engineer territory.

Construction types for sandstone retaining walls include dry-stacked, mortared, segmental block, cantilevered, gabion, gravity, anchored, reinforced soil, and modular block — a wider range than most homeowners realize.

Sandstone material types compared

The material you choose affects installation difficulty, cost, and the final look more than almost any other decision.

Quad-sawn A-grade blocks are cut on all four sides for uniform height and flat bearing surfaces, which makes them faster to build with than traditional split stone. B-grade or hydra-split blocks have a rougher, more rustic face but may need more on-site adjustment to achieve level courses. Sandstone logs (long rectangular sleepers) create strong horizontal lines and suit contemporary or coastal gardens. Boulders are the most naturalistic option and work well on steep, informal sites, though they almost always require machinery to place.

For homeowners comparing sandstone against other materials, the best retaining wall material depends heavily on wall height, soil type, and the look you’re after. Granite is harder and denser than sandstone, which makes it more resistant to freeze-thaw cycles in colder climates but also heavier to handle and typically more expensive per ton. Bluestone (a dense basalt) offers a cooler, blue-gray palette and excellent compressive strength, though it lacks sandstone’s warm tones. Basalt vs sandstone comes down to climate and aesthetics: basalt performs well in wet or coastal conditions, while sandstone’s porous nature means it needs a breathable sealer in high-moisture environments. Limestone sits between the two on hardness and tends to weather faster in acidic soils.

How much does a sandstone retaining wall cost?

Cost is where most homeowners get surprised, usually because they price the stone and forget the labor, the drainage materials, and the site prep. The honest answer is that installed costs vary significantly by region, wall height, and access conditions. Material-only pricing gives you a starting point; the installed figure varies significantly by region and site conditions.

Note: Published guidance from one Australian market indicates a mid-range for installed sandstone block walls; U.S. pricing varies by region — treat these as directional only and get local quotes.

Worked example: A wall 10 feet long by 3 feet high has 30 square feet of face area. At a mid-range installed rate of $45 per square foot, that’s roughly $1,350 for the wall face alone, before drainage materials, excavation, or permit fees. Material-only for the same wall might run $400–$700 depending on block grade and delivery distance.

The biggest cost variables are wall height (taller walls need wider bases and more stone), site access (tight-access sites can double labor costs when machinery can’t get close), and whether the project triggers an engineering requirement.

Pro Tip: Ask your supplier for a delivered price per ton to your specific address before comparing quotes. Delivery charges vary enormously by distance and site access, and a lower stone price can easily be wiped out by a higher freight charge.

A useful reference for understanding how site factors affect pricing is Rokworx’s rock wall cost guide, which breaks down the same cost drivers in detail.

What design styles work best for sandstone retaining walls?

Sandstone’s warm ochre, honey, and buff tones give it a natural versatility that few other wall materials can match. It reads as rustic on a country property, contemporary when cut to uniform courses, and coastal when combined with ornamental grasses and native plantings. The design style you choose should follow the wall’s structural role first, then the aesthetic.

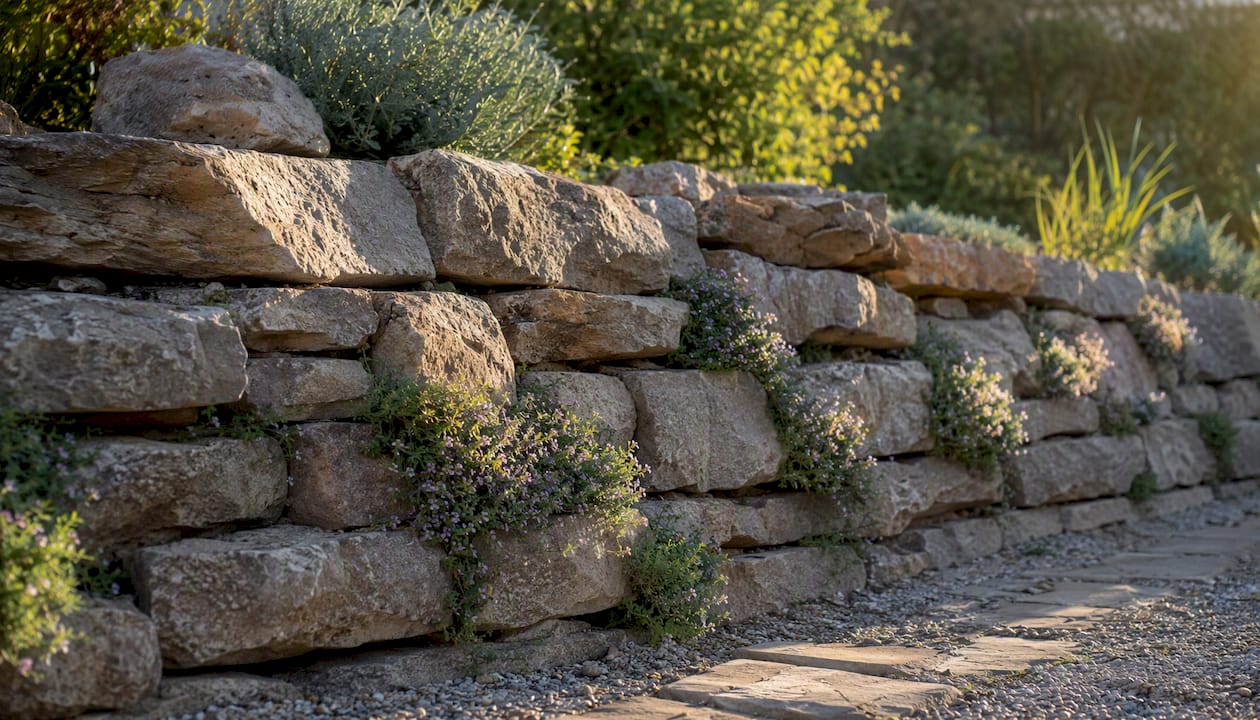

Dry-stacked rustic is the most forgiving look to achieve and the most popular for garden-scale walls. Irregular courses, visible gaps, and a slightly battered (backward-leaning) face give it an organic quality that suits cottage gardens and informal landscapes. The gaps also allow plants like creeping thyme or sedum to root into the wall face, which adds texture and helps bind the structure over time.

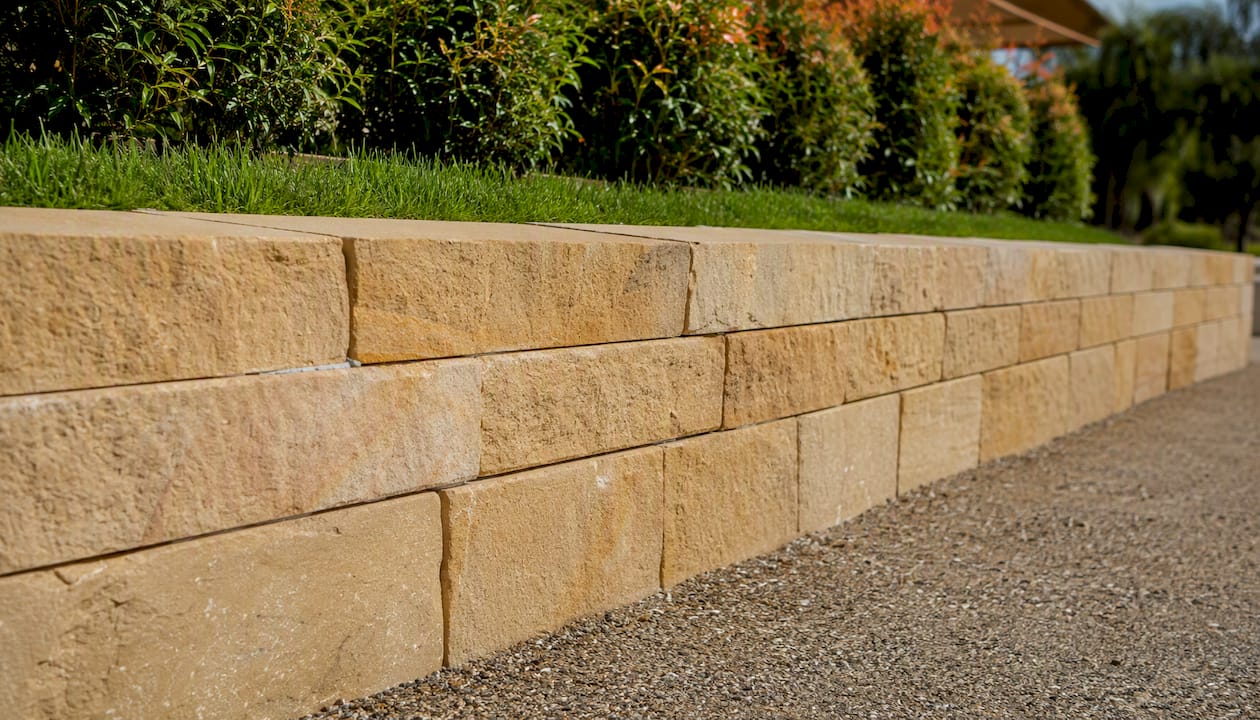

Coursed sawn-block walls use quad-sawn A-grade blocks laid in tight, level courses with minimal joint variation. The result is clean and contemporary, and it pairs well with rendered homes, timber decking, and modern planting schemes. This style is also the easiest to build accurately because the uniform block dimensions eliminate most of the guesswork.

Sandstone log walls create strong horizontal lines that work particularly well on terraced sites where multiple retaining levels step up a slope. Each “log” is a long rectangular block, and the horizontal emphasis makes a slope feel organized rather than steep.

Boulder walls suit large, naturalistic sites where the goal is to blend the wall into the landscape rather than define it. Individual boulders are placed with their largest face forward and their mass doing the structural work. They’re not a DIY project — machinery is required — but the result is the most natural-looking option available.

Pro Tip: Match your stone color to existing hard materials on the property. If your home has warm brick or timber cladding, honey-toned sandstone reads as intentional. If the house is rendered in cool gray, a lighter buff or cream sandstone will bridge the two better than a deep orange stone.

For layout ideas, terraced walls with integrated steps are one of the most practical applications on sloped sites. A series of low walls (each under 2 feet) is structurally simpler than one tall wall and creates planting beds between levels. Seat walls — walls built to sitting height (roughly 18 inches) with a flat capstone — double as outdoor seating and define outdoor rooms without fencing. Integrated planter pockets, where a section of the wall steps back to create a planting bay, soften the structure and add seasonal color.

Browse Rokworx’s decorative rock and natural stone ideas for visual examples of how sandstone integrates into different garden styles.

How to build a low sandstone retaining wall yourself

Small sandstone walls — roughly 16 to 24 inches (400–600mm) high — are within reach for a capable DIYer, particularly when using quad-sawn blocks with consistent dimensions. Beyond that height, block weight and the need for machinery make professional help the smarter call. Practical guides advise that professional assistance is recommended for most walls heavier than a small garden border, due to block weight and machinery requirements..

Before you break ground, call 811 (the national Dig Safe line) to have underground utilities marked. Check your local building department for permit requirements — many U.S. jurisdictions require a permit for walls over 3 or 4 feet, and some require one for any structural retaining wall regardless of height.

Step-by-step build procedure

1. Mark the wall line. Use stakes and string to define the wall’s face. Add 12–18 inches behind the face for drainage material.

2. Excavate the trench. Dig to at least 6 inches below finished grade for the footing course, plus the depth of your first block. A trench 18–24 inches wide gives you room to work. Compact the base firmly.

3. Set a compacted gravel base. Lay 4–6 inches of compacted crushed gravel (3/4" clean stone) in the trench. Check for level across the full length. This is the most important step — a level, stable base prevents the entire wall from shifting later.

4. Lay the first course. Set blocks with their front face on the string line. Embed the first course slightly below finished grade so the base is anchored. Check level in both directions before moving on.

5. Install drainage behind the first course. Place a slotted agricultural drain pipe (perforated side down) directly behind the first course. Wrap the pipe in geotextile sock or lay geotextile fabric against the excavated soil face before backfilling. This step is the single most important factor for long-term wall stability — water buildup creates hydrostatic pressure that pushes blocks out of alignment.

6. Backfill with clean gravel. Pack at least 12 inches (300mm) of clean crushed gravel behind the first course before adding native soil further back. Compact in 4-inch lifts using a hand tamper or plate compactor.

7. Stack subsequent courses with offset joints. Each course should overlap the joints below by at least one-third of the block length — the same principle as bricklaying. Batter the wall slightly (lean it back into the slope) at roughly 1 inch per foot of height for gravity walls.

8. Continue backfill and compaction with each course. Don’t build all the courses first and backfill at the end. Fill and compact behind each course as you go to prevent the wall from being pushed forward during compaction.

9. Set capstones. The top course should use flat capstones, either mortared in place or set dry with a slight forward overhang. Mortared caps look cleaner and stay put better in freeze-thaw climates.

10. Finish and clean. Brush off loose stone dust, check that the drain outlet is clear and daylit at the wall’s end, and allow any mortar to cure fully before backfilling against it.

Common block sizes and approximate weights

Anything over 80 lbs per block is a two-person lift at minimum. Blocks over 150 lbs need mechanical assistance — a mini excavator or block-setting equipment. Factor that into your DIY decision.

Pro Tip: Quad-sawn A-grade blocks are worth the slight price premium for a DIY project. Their uniform height means you spend far less time shimming and adjusting, and the flat bearing surfaces distribute load more evenly across the course below.

For more detailed excavation guidance, Rokworx’s retaining wall installation guide covers site preparation and footing considerations in practical terms.

What to ask a contractor before signing anything

When you contact a contractor for a quote, the quality of their answers tells you as much as the price does. Ask whether they carry general liability insurance and workers’ compensation, and ask to see the certificates. Ask for two or three local references for retaining wall projects of similar scale, and follow up with those references. Ask specifically whether they have experience with sandstone block walls and whether they own or hire the machinery needed for your site.

On the technical side, ask how they plan to handle drainage behind the wall, what backfill material they specify, and whether the project will require an engineering stamp in your jurisdiction. A contractor who can answer those questions clearly and without hesitation is one who has built walls that last.

How do you maintain and repair a sandstone retaining wall?

Sandstone is genuinely low maintenance compared with timber. It won’t rot, and it’s termite-proof. Over years, it weathers to a natural patina that most homeowners find more attractive than the fresh-cut look. That said, a few seasonal checks keep small problems from becoming structural ones.

Seasonal maintenance tasks:

• Clear debris and soil from the base of the wall and from any weep holes or drain outlets each spring and fall.
• Check that surface water drains away from the wall rather than pooling against it. Regrading a small area of lawn or garden bed is far cheaper than repairing a failed wall.
• Pull any plant roots that are working into the mortar joints or between dry-stacked blocks. Small roots are manageable; large ones can lever blocks apart over time.
• Inspect the wall face for bulging, leaning, or cracking after heavy rain or a freeze-thaw cycle.

Common failure signs and what they mean:

Bulging or leaning usually indicates drainage failure or inadequate base preparation. Water has built up behind the wall and the hydrostatic pressure is winning. This is a structural issue — get a professional assessment before it progresses.

Horizontal cracking through mortar joints often signals differential settlement, where one section of the base has moved more than another. Minor hairline cracks in mortar can be repointed by a homeowner; cracks that run through the stone itself or that are wider than 1/4 inch need professional evaluation.

Efflorescence (white salt deposits on the stone face) is cosmetic, not structural. It’s caused by water carrying soluble salts through the stone and depositing them on the surface as it evaporates. A stiff brush and water remove it; a breathable masonry sealer can slow its return.

Mortar erosion in the joints of mortared walls is normal over 10–20 years. Repointing — raking out the old mortar and packing in fresh material — is a job most homeowners can handle on small sections with a cold chisel, a margin trowel, and a bag of pre-mixed masonry mortar.

Pro Tip: Never use a high-pressure washer on soft sandstone. The stone’s surface is porous, and high pressure erodes it faster than weather does. A garden hose with a brush attachment is all you need for routine cleaning. If you’re considering a sealer, use only a breathable (vapor-permeable) masonry sealer. A film-forming sealer traps moisture inside the stone, which accelerates spalling in freeze-thaw climates.

For a full seasonal checklist, Rokworx’s retaining wall maintenance guide covers inspection points and repair triggers in detail.

Where do you buy sandstone and what should you ask suppliers?

Stone yards, landscape supply companies, and landscape contractors who carry their own stock are the three main sourcing options. Stone yards typically offer the widest selection of grades and cuts and can provide samples. Landscape suppliers often stock a narrower range but may offer better delivery logistics for residential quantities. Contractors who supply their own stone can bundle material and labor into a single quote, which simplifies the process but makes it harder to compare prices independently.

Questions to ask any supplier before ordering:

• What grade is the stone (A-grade quad-sawn vs B-grade split-face), and can I see a sample or visit the yard?
• What are the standard block dimensions and approximate weights per unit?
• What waste allowance do you recommend for a retaining wall project (typically 10–15%)?
• What is the delivered price per ton to my address, and what are the site access requirements for your delivery truck?
• What is your returns policy for unused full blocks?
• What are current lead times, and do you hold stock or order to supply?

When stone arrives on site, inspect the delivery before signing off. Check that block faces are consistent with the sample you approved, confirm the delivered quantity against the invoice (weigh tickets are standard for bulk stone), and store blocks on flat, firm ground away from the wall excavation to avoid loading the soil.

On sustainability: if you prefer locally quarried stone, ask the supplier where the stone is quarried and how far it traveled. Locally sourced sandstone has a lower transport footprint and is more likely to match the regional geology and color palette of your area. Reclaimed sandstone from demolished structures is another option — it’s often pre-weathered to a beautiful patina and diverts material from landfill, though supply is unpredictable and block sizes vary widely.

Contractor handoff checklist

If you’re hiring a professional rather than building yourself, give them the following before the first site visit:

• Site photos from multiple angles, including the slope above and any structures nearby.
• Measured wall length, approximate height, and the distance from the wall to any structures, driveways, or property lines.
• Images of the finish style you want (dry-stacked rustic, coursed contemporary, boulder, etc.).
• Any known access constraints: gate widths, overhead clearances, soft ground areas.
• Your target completion window and whether the site will be occupied during construction.

A contractor who reviews that information before quoting will give you a more accurate price and fewer surprises during the build.

Key Takeaways

A sandstone retaining wall built with correct drainage and a stable base can last several decades, making it one of the most cost-effective long-term choices for residential earth retention.

Why sandstone keeps earning its place in serious landscape projects

The conventional wisdom in landscaping circles is that concrete block is the practical choice and sandstone is the premium indulgence. That framing misses something. Concrete block is cheaper per square foot upfront, but it ages in ways that sandstone doesn’t: it stains, it chips at the face, and the color rarely improves with time. Sandstone weathers into something that looks like it belongs on the site. That’s not a small thing when you’re looking at a wall from your kitchen window for the next 30 years.

What people underestimate about sandstone is how much the drainage engineering matters relative to the stone itself. The material is almost secondary. A beautifully laid sandstone wall with no drain pipe behind it will fail. A modest wall with correct drainage, a compacted base, and offset joints will outlast the house. The stone gets the credit; the drainage does the work.

The other underestimated factor is access. Homeowners price the stone and forget the machinery. Getting a mini excavator into a tight backyard, setting a level base trench, and placing the first course accurately — that’s where the real skill and cost live. It’s also where the difference between a 10-year wall and a 50-year wall is decided.

Rokworx builds sandstone retaining walls that hold

If your site needs more than a weekend project, Rokworx handles the full scope: stone supply, wall construction, and the earthmoving that makes it all possible. The advantage over sourcing and managing trades separately is straightforward. One team handles the excavation, the drainage, the block placement, and the finish, which means no gaps in accountability when something needs adjusting on site.

To get a fast, accurate quote, send Rokworx the following: site photos from multiple angles, the measured wall length and height, your preferred finish style (a reference image works well), any access constraints, and your target timeline. That information lets the team assess machinery requirements and drainage needs before the first site visit, which means the quote reflects the actual job rather than a best guess.

Explore completed rock wall projects for design inspiration, or go straight to the rock walls service page to request a quote or schedule a site visit.

Useful sources and further reading

The following sources informed this article. Local permit and engineering requirements vary by U.S. jurisdiction — always confirm current rules with your local building department before starting any retaining wall project.

• Retaining wall — Wikipedia
• Sandstone Block Walls in Australia: Construction & Guide
• Sandstone Retaining Wall Construction: How They Excel in Structural Support
• How to Build a Small Sandstone Retaining Wall: A Step-by-Step Guide for QLD and NSW Homeowners | Texas Sandstone
• How to Install Retaining Walls in Your Garden | Rokworx

This article is general information for homeowners and DIY landscapers, not engineering or legal advice. Confirm permit requirements, engineering thresholds, and local building codes with your municipal building department or a licensed structural engineer before starting any retaining wall project.
