Woven vs Non Woven Geotextile: What Contractors Need to Know

Choose woven geotextile when your primary need is tensile reinforcement or separation. Choose nonwoven when filtration, drainage, or cushioning is the job. Getting that call wrong is one of the most common and expensive mistakes on landscaping and civil sites.

• Road base, driveway stabilization, working platforms, retaining wall reinforcement → woven geotextile (high tensile strength, low elongation, load distribution)
• French drains, pipe wrap, geomembrane protection, erosion control under rip-rap → nonwoven geotextile (high permittivity, felt-like structure traps fines while passing water)
• Both functions required on the same job → composite or layered system (nonwoven over woven, or a factory-bonded composite)

Always specify by ASTM test values, not by weight or marketing names. Request ASTM D4632 for tensile, ASTM D4491 for permittivity, and ASTM D4751 for apparent opening size (AOS) on every purchase order.

Table of Contents

• How woven geotextile is made and why it’s built for reinforcement
• How nonwoven geotextile is made and why it dominates drainage jobs
• Side-by-side property comparison: what each dimension means on the job
• Which fabric fits which job: application-by-application guidance
• How to install each type correctly and avoid the failures that cost you
• The ASTM tests and numbers to request from every supplier
• Cost, durability, and what a premature failure actually costs you
• A spec checklist to bring to the supplier or yard
• Key Takeaways
• The spec-driven approach is the only approach that holds up
• Rokworx handles the supply, installation, and the spec decisions for you
• Useful sources and standards to consult

How woven geotextile is made and why it’s built for reinforcement

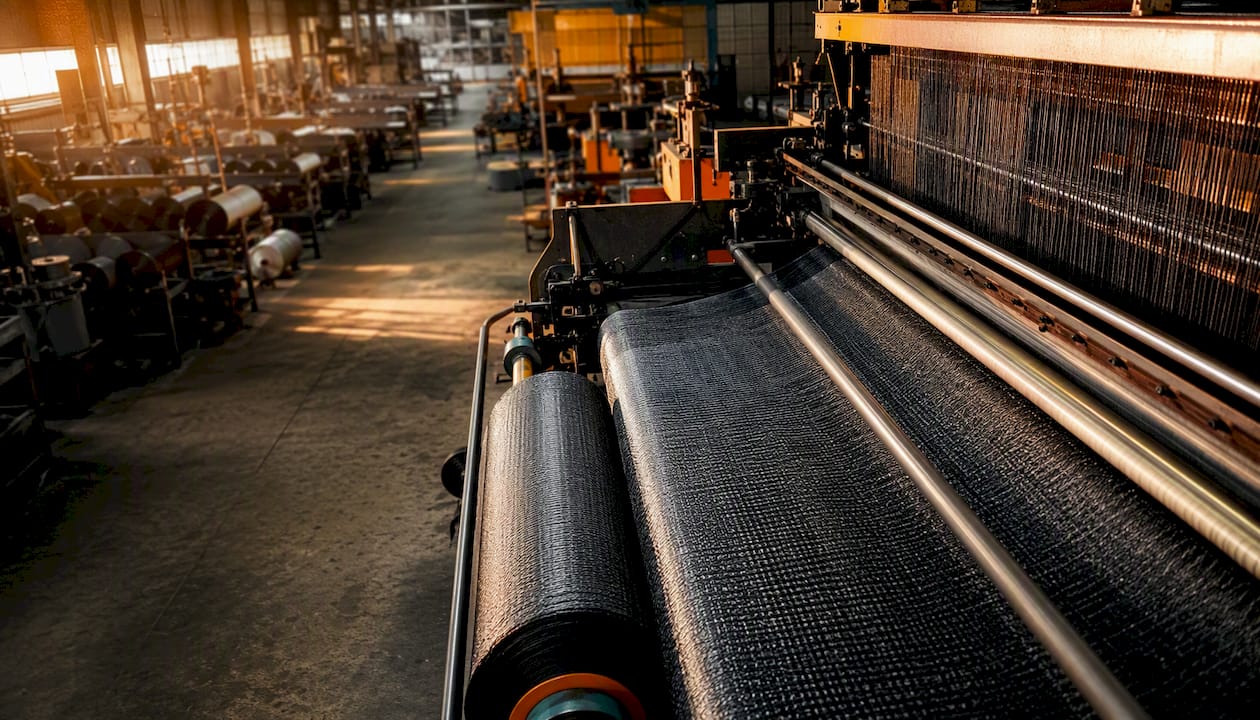

Woven geotextiles are manufactured by interlacing two sets of yarns at right angles: the warp (lengthwise) and the weft (crosswise). The yarns themselves are either slit-film tapes, cut from an extruded polypropylene sheet, or monofilament strands. Slit-film wovens are the workhorse of road base and driveway jobs. Monofilament wovens have a more open structure and better hydraulic performance, which matters when you need some filtration alongside reinforcement.

That interlaced structure creates directional, or anisotropic, strength. The fabric is significantly stronger along the warp than the weft, so orientation on-site matters. Elongation runs in the typical range for woven geotextiles, which means the fabric resists stretch under load rather than conforming to an uneven subgrade. That low elongation is exactly what you want under a gravel access road where differential settlement would crack a surface.

Permittivity is low relative to nonwovens, typically in the 0.05–0.5 s⁻¹ range (ASTM D4491). Water can still pass through a woven, but it is not the fabric’s strength.

On-site identification: wovens have a visible grid pattern and a flat, smooth feel. If you unroll a fabric and it looks like a mesh or screen, it is almost certainly woven. Train your crew to check every roll on delivery before it goes in the ground.

• High grab tensile strength typical for wovens (ASTM D4632)
• Low elongation characteristic, providing rigid load distribution
• Anisotropic: stronger in one direction, so orientation matters
• Low permittivity: not suited as a primary drainage layer

Pro Tip: When a design calls for both filtration and tensile strength, a monofilament woven or a factory-bonded composite (nonwoven bonded to woven) is worth the conversation with your supplier. Specify both the tensile and permittivity requirements on the same datasheet request.

How nonwoven geotextile is made and why it dominates drainage jobs

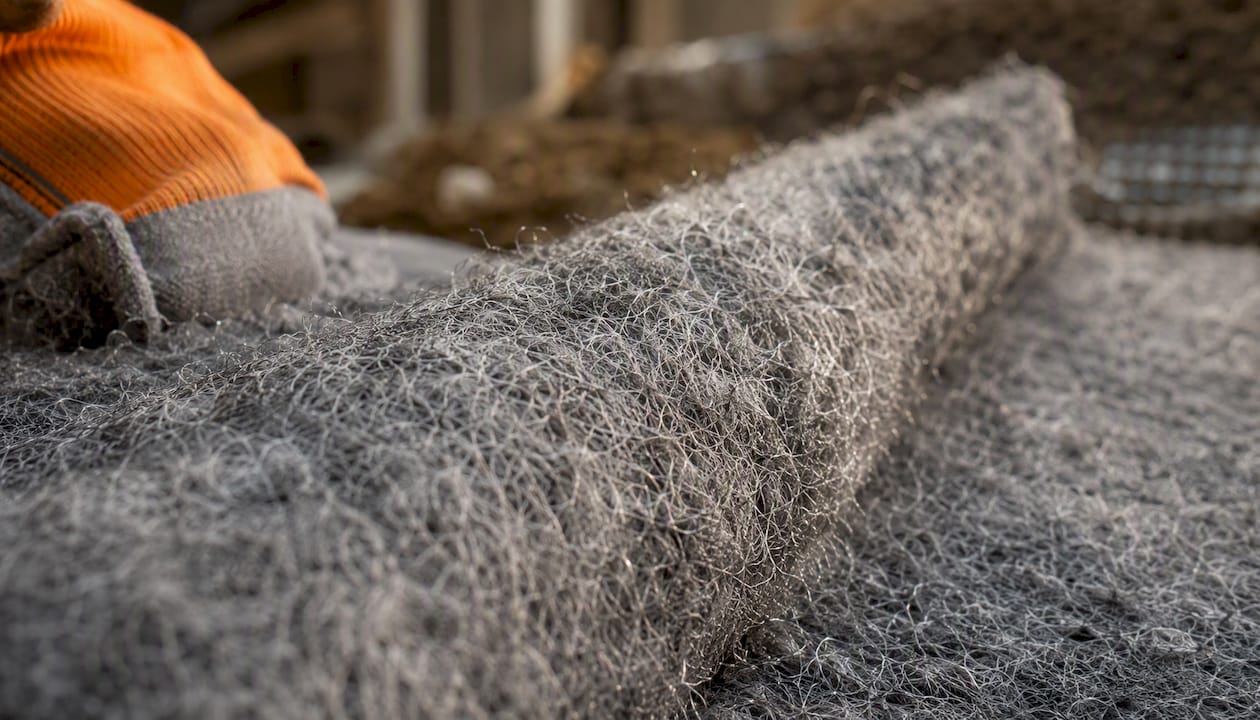

Nonwoven geotextiles are manufactured without interlacing. Instead, fibers are laid randomly and bonded either by needle-punching (barbed needles mechanically entangle the fibers) or heat-bonding (fibers are fused under heat and pressure). The result is a felt-like fabric with no directional grain.

Needle-punched nonwovens dominate drainage and filtration applications. The entangled fiber matrix creates a tortuous flow path that traps fine soil particles while allowing water to pass freely. Heat-bonded nonwovens are thinner and stiffer, with lower permeability and less cushioning. They work for separation and protection in light-duty applications but are not the right call for French drains or pipe wraps where hydraulic throughput is the primary requirement.

Nonwovens are ordered by weight: 4 oz/yd², 6 oz/yd², 8 oz/yd², or in GSM equivalents. Heavier weights provide more cushioning and puncture resistance, which matters under angular rock. Elongation runs in the typical range for nonwoven geotextiles, so the fabric conforms to uneven subgrades without tearing during placement.

On-site identification: nonwovens feel fuzzy and soft, like a thick felt pad. No visible grid, no smooth surface.

Permittivity callout: Nonwoven geotextiles tested to ASTM D4491 typically achieve permittivity of 0.5–5.0 s⁻¹, compared to 0.05–0.5 s⁻¹ for wovens. That 10x difference in flow capacity is why nonwovens are specified for every drainage-critical application.

• High permittivity typical for nonwovens (ASTM D4491), ideal for drainage and filtration
• High elongation characteristic, conforms to irregular subgrades
• Isotropic: consistent performance in all directions
• Needle-punched preferred over heat-bonded for heavy civil filtration

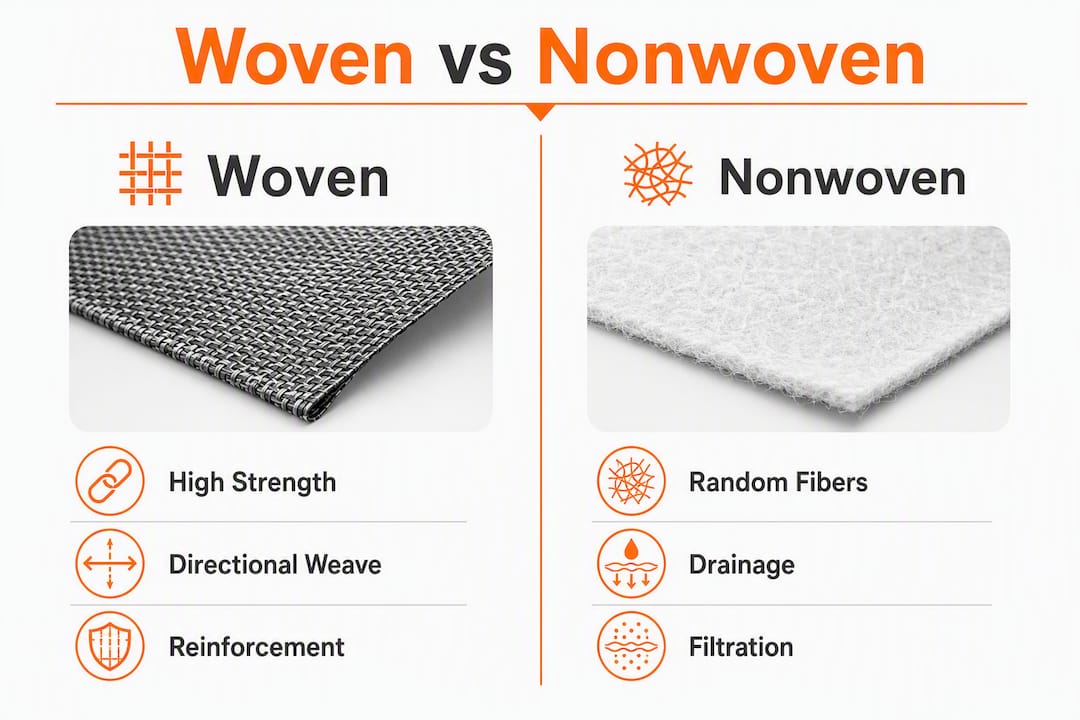

Side-by-side property comparison: what each dimension means on the job

The table below maps the key mechanical and hydraulic properties to their practical implications. Use it when reviewing supplier datasheets.

What these numbers mean in practice:

Permittivity is the most critical discriminator. A woven at 0.05–0.5 s⁻¹ will restrict flow in a French drain and build hydrostatic pressure behind a retaining wall. A needle-punched nonwoven at 0.5–5.0 s⁻¹ passes water freely while filtering out fines.

Elongation determines how the fabric behaves under uneven loading. High-elongation nonwovens (30–80%) conform to soft spots in a subgrade during construction without tearing. Low-elongation wovens (10–30%) hold their shape, which is what you need under a loaded access road where any deflection means rut formation.

Tensile strength tells you the reinforcement capacity, but it says nothing about filtration. A woven with grab tensile strength in the 700–2,500 N range will still block a drain if it has low permittivity. Never use tensile strength as a proxy for overall suitability.

CBR puncture matters most when angular aggregate or sharp rock is placed directly on the fabric. Wovens generally have higher CBR puncture values (1,500–4,500 N), but a heavy needle-punched nonwoven (8 oz/yd² or above, with CBR 1,200–3,500 N) can match or exceed lighter wovens in puncture resistance.

Which fabric fits which job: application-by-application guidance

The function-first rule holds across every application. There is no single better geotextile; the right choice depends entirely on what the fabric is being asked to do.

Woven geotextile applications:

• Road base and working platforms: woven separates subgrade from aggregate and distributes load. Specify by tensile strength class, not weight.
• Driveway stabilization: slit-film woven under compacted gravel prevents subgrade migration and rut formation.
• Retaining wall reinforcement: woven layers within a mechanically stabilized earth (MSE) wall carry tensile load. See retaining wall installation guidance for how layers are sequenced.
• Separation under rail ballast or heavy fill: low elongation keeps the boundary between fill and subgrade intact under repeated loading.

Nonwoven geotextile applications:

• French drains and trench drains: needle-punched nonwoven wraps the aggregate or pipe, filters fines, and passes water. This is the single most common nonwoven application on landscaping sites.
• Pipe wrap: nonwoven prevents fine soil from migrating into perforated pipe while maintaining flow.
• Geomembrane protection: nonwoven cushion layers protect HDPE liners from puncture by aggregate. Angular rock placed directly on a geomembrane without a cushion nonwoven is a documented failure mode.
• Erosion control under rip-rap: nonwoven placed beneath rock armor on slopes filters runoff and prevents subgrade erosion. Rokworx’s erosion control services use this layering approach on steep sites.
• Under decorative rock and garden paths: nonwoven suppresses weeds, passes rainfall, and protects soil structure.

Hybrid and composite systems:

Some jobs genuinely need both functions. A retaining wall with a drainage blanket behind it is the classic example: woven geogrid or woven fabric for reinforcement, nonwoven drainage composite or aggregate drain wrapped in nonwoven for the hydraulic function. The layers are distinct and each is specified separately. Never try to make one fabric do both jobs when the performance requirements pull in opposite directions.

Pro Tip: When the primary job is lateral drainage and filtration, default to needle-punched nonwoven. If you are unsure whether the site has fine silts, run a quick soil gradation check and match the AOS to the particle size distribution before ordering.

How to install each type correctly and avoid the failures that cost you

Installation errors account for a large share of geotextile failures in the field. The fabric can be perfectly specified and still fail if it is placed wrong.

Overlap rules:

1. Minimum overlap for nonwoven in drainage applications: 12–18 inches, seams oriented to shed water (upstream panel over downstream panel).
2. Woven overlaps for separation and reinforcement: 18–24 inches minimum, or per design drawings for MSE walls.
3. On soft or unstable subgrades, increase overlaps to 36 inches or sew seams.
4. Never leave a gap between panels; fines migrate through any unsealed joint.

Under-gravel and under-path placement:

• For permeable paths and patios, use nonwoven under the aggregate base. It passes rainfall, filters fines upward, and prevents subgrade mixing.
• For driveways and access roads, use woven under the gravel. Crown the surface to shed water laterally; do not rely on the woven to drain the base.
• Nonwoven under decorative rock suppresses weeds without blocking rainfall. A 4 oz/yd² is adequate for light garden use; go to 6 oz/yd² under angular rock.

Protection measures:

• Cover any exposed geotextile within 14 days of placement. UV degradation begins immediately on unprotected polypropylene.
• Place a minimum 6-inch aggregate cover before running equipment over woven fabric on a soft subgrade. Thinner cover allows point loads to punch through.
• Under angular rip-rap or gabion stone, use a cushion nonwoven (minimum 8 oz/yd²) to prevent puncture. Sharp aggregate on a thin woven is a puncture waiting to happen.

Common mistakes that cause failures:

• Using woven fabric as a French drain wrap. Low permittivity wovens trap water and build hydrostatic pressure, which can push out a retaining wall face or collapse a trench drain.
• Under-specifying AOS for fine-grained soils. A fabric with AOS larger than ~0.15 mm for fine silts will allow fines to migrate through and clog the drain aggregate.
• Ignoring puncture risk with sharp aggregate. CBR puncture values on the datasheet are tested under controlled conditions; angular crusher run in the field is more aggressive.
• Placing fabric on a subgrade with roots, stumps, or sharp debris. Clear and grade the surface before laying any geotextile.

Pro Tip: Run through this installation sequence on every job: (1) clear and grade subgrade, (2) inspect fabric roll for correct type and ASTM values, (3) place fabric with correct overlaps and orientation, (4) inspect seams before covering, (5) place cover material to minimum specified depth before trafficking.

The ASTM tests and numbers to request from every supplier

NRCS Construction Specification 495 is the baseline reference for geotextile procurement on federally funded and conservation projects in the US. It maps survivability classes to minimum test values and requires ASTM-certified test results, not manufacturer marketing claims.

Key tests and what they measure:

• ASTM D4632 (grab tensile and elongation): measures the force required to pull the fabric to failure and how far it stretches. Request MARV (Minimum Average Roll Value), not typical values. Typical grab tensile ranges: woven 700–2,500 N, nonwoven 400–1,400 N; elongation: woven 10–30%, nonwoven 30–80%.
• ASTM D4491 (permittivity and water flow): the governing test for drainage and filtration selection. Nonwovens should show 0.5–5.0 s⁻¹; wovens 0.05–0.5 s⁻¹.
• ASTM D4751 (AOS): measures the largest particle size the fabric will retain. Match AOS to soil particle size; for fine silts, specify AOS ≤ 0.15 mm.
• ASTM D6241 (CBR puncture): measures resistance to a blunt probe pushed through the fabric. Wovens: 1,500–4,500 N; nonwovens: 1,200–3,500 N.
• ASTM D4533 (trapezoidal tear): measures resistance to tear propagation from a cut or nick. Relevant for fabrics placed over rough subgrades.

Survivability and AASHTO M288:

AASHTO M288 survivability classes map to installation conditions. Class 1 (high survivability) applies to heavy haul roads, sharp aggregate, and soft subgrades. Class 2 covers most standard road base and retaining wall applications. Class 3 is for light-duty, fine-grained soil conditions. Always specify the survivability class on the purchase order, not just the fabric type.

Spec callout: For reinforcement applications, require ASTM D4632 grab tensile MARV ≥ 800 N and elongation ≤ 30%. For filtration/drainage, require ASTM D4491 permittivity MARV ≥ 0.5 s⁻¹ for nonwoven and AOS per soil gradation. Both sets of values belong on the datasheet before you sign the order.

Spec checklist for reinforcement:

• ASTM D4632 grab tensile (MARV)
• ASTM D4632 elongation (MARV, ≤ 30%)
• ASTM D6241 CBR puncture (MARV)
• ASTM D4533 trapezoidal tear (MARV)
• AASHTO M288 survivability class

Spec checklist for filtration/drainage:

• ASTM D4491 permittivity (MARV, ≥ 0.5 s⁻¹ for nonwoven)
• ASTM D4751 AOS (matched to soil gradation)
• ASTM D4632 grab tensile (MARV, for installation survivability)
• Manufacturer’s third-party lab report (not in-house testing)

Cost, durability, and what a premature failure actually costs you

Woven geotextiles generally carry a higher unit price than basic nonwovens, driven by yarn type, tensile class, and manufacturing complexity. A heavy-duty woven specified for a Class 1 road base job costs more per square yard than a 4 oz/yd² needle-punched nonwoven. That cost gap narrows when you compare a heavy nonwoven (8–10 oz/yd²) against a mid-range woven.

Cost drivers:

• Nonwovens: weight (oz/yd² or GSM) is the primary price driver; heavier = more fiber = higher cost
• Wovens: tensile class and yarn type (monofilament costs more than slit-film); higher strength = higher cost
• Both types: virgin polypropylene resin costs more than recycled, but virgin resin delivers more consistent UV stabilization and longer service life
• Installation conditions: soft subgrades requiring higher survivability class push costs up regardless of fabric type

Durability and UV exposure:

Both woven and nonwoven geotextiles are typically manufactured from UV-stabilized polypropylene. Covered and buried fabric has a service life measured in decades under normal conditions. Exposed fabric degrades faster. Most manufacturers rate unprotected polypropylene at 150–500 hours of UV exposure before significant strength loss, which translates to weeks of site exposure in direct sun, not months. Cover it.

The cheapest fabric on the shelf is often the most expensive choice on the job. A failed French drain behind a rock retaining wall means excavating the wall, replacing the drain aggregate, and relaying the fabric. That remedial cost routinely runs several times the original material savings.

Recycled-resin fabrics are available and lower cost, but ask for third-party UV stabilization test results before specifying them on a long-duration project. The variance in recycled resin quality is wider than in virgin resin.

A spec checklist to bring to the supplier or yard

Before you order, work through this sequence. It takes five minutes and prevents the wrong roll going in the ground.

1. Define the primary function: reinforcement/separation or filtration/drainage? If both, plan a composite or layered system.
2. Check the soil: run a gradation test or use a field estimate of particle size to set the AOS requirement.
3. Set the survivability class: light-duty garden path (Class 3), standard road base (Class 2), heavy haul or sharp aggregate (Class 1).
4. List the required ASTM values: tensile (D4632), permittivity (D4491), AOS (D4751), puncture (D6241) as applicable.
5. Request MARV values, not typical: MARV is the statistically guaranteed minimum; typical values can be 20–30% higher and are not a reliable procurement basis.
6. Ask for a third-party lab report: in-house manufacturer testing is not equivalent to an independent certified lab result.
7. Confirm ordering convention: wovens by tensile class; nonwovens by weight (oz/yd² or GSM).
8. Specify overlap and anchoring requirements on the purchase order so the installer has the design intent in writing.

Questions to ask the supplier:

• What is the MARV for tensile, permittivity, and AOS on this roll?
• Is this a needle-punched or heat-bonded nonwoven? (For drainage applications, needle-punched is required.)
• What AASHTO M288 survivability class does this fabric meet?
• Do you have a third-party lab report for this lot?
• What is the recommended overlap for this application and soil condition?
• What is the maximum UV exposure time before cover is required?

When the job involves heavy haul traffic, sharp crusher run, or a soft subgrade, insist on on-site sampling and a higher survivability class than the minimum. The cost of upgrading the spec is a fraction of the cost of a failure.

Key Takeaways

Woven geotextile handles reinforcement and separation; nonwoven handles filtration, drainage, and cushioning. Specifying by ASTM test values, not weight or appearance, is the single most reliable way to get the right fabric on the right job.

The spec-driven approach is the only approach that holds up

Most geotextile failures on landscaping and retaining wall sites are not material failures. They are specification failures. The wrong fabric was ordered because someone picked by weight, by price, or by what was on the shelf, without checking the ASTM values against the job requirements.

The function-first rule is not complicated. If water needs to move through the fabric, the permittivity number on the datasheet has to support that. If the fabric is carrying load, the tensile MARV has to match the design. The problem is that both types of fabric look similar in a roll, and the difference between a woven at 0.05–0.5 s⁻¹ and a nonwoven at 0.5–5.0 s⁻¹ is invisible until the drain backs up or the wall face moves.

The other underestimated factor is elongation. A nonwoven at 30–80% elongation will drape over a soft spot in the subgrade during placement without tearing. A woven at 10–30% elongation will bridge that soft spot, which is exactly what you want under a loaded road but exactly wrong under a drainage trench where the fabric needs to conform to the pipe and aggregate. Elongation is the on-site discriminator that most buyers never think to check.

Keep the MARV values and the third-party lab report on file for every job. If a failure occurs and you need to demonstrate due diligence, those documents are the difference between a warranty claim and a full remediation bill.

Rokworx handles the supply, installation, and the spec decisions for you

Getting the geotextile right is one piece of a retaining wall or erosion control project. Getting the rock selection, the drainage design, the excavation, and the compaction right at the same time is where most DIY and under-specified jobs fall short.

Rokworx supplies and installs rock walls and retaining walls across Melbourne, with geotextile selection and placement built into every project. The team handles the spec decisions, sources the correct fabric for the application, and places it correctly before the rock goes in. For erosion control on slopes and drainage-critical sites, Rokworx’s earthmoving and site preparation capabilities mean the subgrade is ready before the fabric is laid.

If you are weighing a DIY approach against hiring a contractor, the honest answer is this: the material cost of getting the geotextile wrong is small. The remediation cost of excavating a failed retaining wall or a blocked French drain is not. Contact Rokworx for a project quote and get the spec right the first time.

Useful sources and standards to consult

These are the primary references a contractor should attach to specifications or consult before procurement:

• NRCS Construction Specification 495 — Geotextile: the baseline US federal standard for geotextile selection, survivability classes, and installation requirements
• ASTM D4632: grab tensile strength and elongation test method
• ASTM D4491: water permeability (permittivity) of geotextiles by permittivity
• ASTM D4751: apparent opening size of geotextiles
• ASTM D6241: static puncture strength (CBR method)
• Geosynthetics Magazine — woven vs nonwoven explainer: practical industry-level comparison of fabric types and elongation behavior
• Layfield Group — ordering and specification guidance: covers ordering conventions (weight vs tensile) and field identification
• SCDOT Geosynthetic Design Chapter 20: state DOT-level guidance on geotextile categories, fiber types, and design applications

When ordering: always request the manufacturer’s third-party certified lab report for the specific lot, not just the product datasheet. MARV values on a datasheet are statistically derived minimums; a lot-specific lab report confirms the actual roll you are receiving meets those values.
